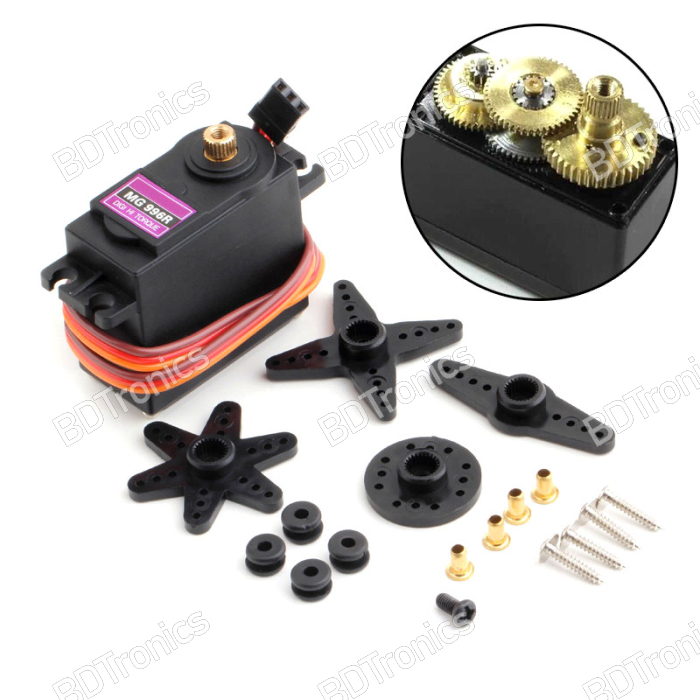

MG996R Full Metal Gear Digital Servo 180 Degree 13KG Torque is a high quality, high torque digital servo motor designed for robotics, RC vehicles, Arduino projects, industrial automation, and DIY electronics. This MG996R servo motor features full metal gears for durability, stable performance, and long service life under heavy load conditions.

With up to 13kg-cm torque at 4.8V and 15kg-cm torque at 6V, it delivers strong holding power and precise 180 degree rotation control. The MG996R digital servo supports fast response speed, wide operating voltage, and reliable signal processing, making it suitable for RC cars, RC boats, robotic arms, humanoid robots, CNC mechanisms, pan-tilt camera systems, and smart automation projects. Its heavy-duty connector wire and compact design allow easy integration with Arduino, Raspberry Pi, microcontrollers, and RC receivers.

Features:

• Full metal gear system for high strength, durability, and reduced gear wear

• High torque output suitable for heavy load and mechanical applications

• Digital control for improved accuracy, faster response, and stable positioning

• 180 degree rotation for precise angular movement

• Compatible with Arduino, Raspberry Pi, ESP32, ESP8266, and RC receivers

• Heavy duty 300mm connector wire for flexible installation

• Suitable for robotics projects, RC vehicles, automation systems, and DIY electronics

• Compact size for easy mounting in limited spaces

• Reliable performance for continuous and repetitive motion tasks

Specifications:

• Model: MG996R Digital Servo

• Gear Type: Full Metal Gears

• Rotation Angle: 180 Degree

• Operating Voltage: 4.8V – 7.2V

• Operating Speed (4.8V): 0.17 sec / 60° (no load)

• Operating Speed (6.0V): 0.13 sec / 60° (no load)

• Stall Torque (4.8V): Up to 13 kg-cm

• Stall Torque (6.0V): Up to 15 kg-cm

• Dimensions: 40mm x 19mm x 43mm

• Net Weight: 69g

• Package Weight: 75g

• Color: Black

• Connector Wire Length: 300mm

• Connector Type: Heavy Duty Servo Connector

How to Use

• Connect the servo signal wire to the PWM pin of Arduino, microcontroller, or RC receiver

• Connect power supply within the recommended voltage range (4.8V – 7.2V)

• Use an external power source for high torque applications to ensure stable performance

• Control rotation angle using PWM signals or servo control libraries

• Secure the servo firmly using mounting brackets to avoid vibration during operation

Application Areas

• Robotics projects and robotic arms

• RC cars, RC boats, and RC airplanes

• Pan-tilt camera mounts and surveillance systems

• CNC machines and mechanical automation

• Smart home and DIY electronics projects

• Educational and training kits for robotics and automation

Safety and Usage Notes

• Do not exceed the recommended voltage range

• Avoid stalling the servo for extended periods to prevent overheating

• Ensure proper power supply for high torque loads

• Use metal servo horns for heavy-duty applications
