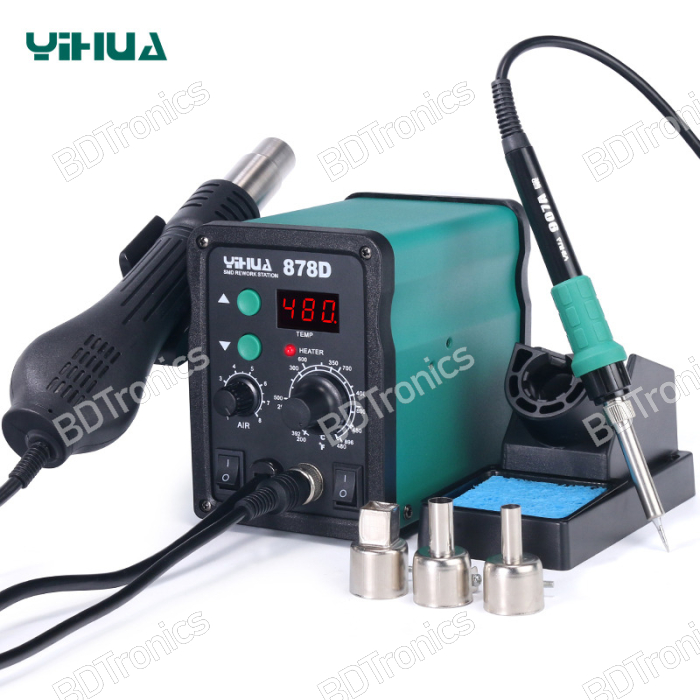

YIHUA-878D 2-in-1 Digital SMD Hot Air Rework Station with Soldering Iron
This product is out of stock. Are you interested about this product?
Order before 12.00PM
The YIHUA 878 Series is a versatile and high-performance 2-in-1 rework station that combines a hot air gun and soldering iron into a single compact unit. Designed for SMD/BGA rework, repair, and soldering applications, it is available in four variants: 878, 878A, 878D, and 878AD.
Models 878D and 878AD feature an LED digital display for precise temperature control of the hot air gun. Variants 878A and 878AD are offered in black and blue color options. All models use high-quality silicone cables for both the hot air gun and soldering iron, which are heat-resistant and durable for professional use.
Features:
-
2-in-1 Functionality: Combines a hot air gun and soldering iron in one unit for space efficiency and convenience.
-
Digital Temperature Control: Models 878D and 878AD include an LED display for hot air temperature adjustment.
-
Durable Construction: Heat-resistant silicone wires and quality components ensure longevity.
-
PID Temperature Correction: Ensures stable temperature output and fast thermal recovery.
-
Brushless Fan Design: Provides a quiet and stable airflow up to 120 L/min.
-
Dual Color Options: 878A and 878AD models are available in black and blue.
Specifications:
Main Unit
| Parameter | Value |
|---|---|
| Rated Voltage | AC 220V ±10%, 50Hz |
| Power Consumption | 700W ±10% (Max.) |
| Operating Environment | 0~40°C, RH < 80% |
| Storage Temperature | -20~80°C, RH < 80% |
| Dimensions | 213.5 × 15 × 10 cm |
| Weight | 2.6 kg |
Hot Air Gun
| Parameter | Value |
|---|---|
| Operating Voltage | AC 220V ±10%, 50Hz |
| Output Power | 650W |
| Temperature Range | 100°C ~ 480°C |
| Airflow Type | Brushless fan |
| Max Airflow | 120 L/min |
| Temperature Stability | ±15°C (static) |
| Heater Type | Ceramic Heating Core |
| Display | LED (Red/Green) |
| Temperature Control | PID Digital Program Correction |
| PID Cycle Time | 200ms (fast response) |
Soldering Iron
| Parameter | Value |
|---|---|
| Operating Voltage | AC 26V ±10%, 50Hz |
| Output Power | 50W |
| Temperature Range | 200°C ~ 480°C |
| Temperature Stability | ±10°C (static) |
| Heater Type | Common Metal Heater |
| Tip to Ground Impedance | < 2Ω |
| Tip to Ground Voltage | < 2mV |
Package Includes:
-
1 × Main Unit (Model: 878/878A/878D/878AD)
-
1 × Hot Air Gun Handle
-
1 × Soldering Iron
-
3 × Air Nozzles (13mm, 10mm, 8mm)
-
1 × IC Puller
-
1 × Power Plug (region-specific)
-
1 × User Manual
