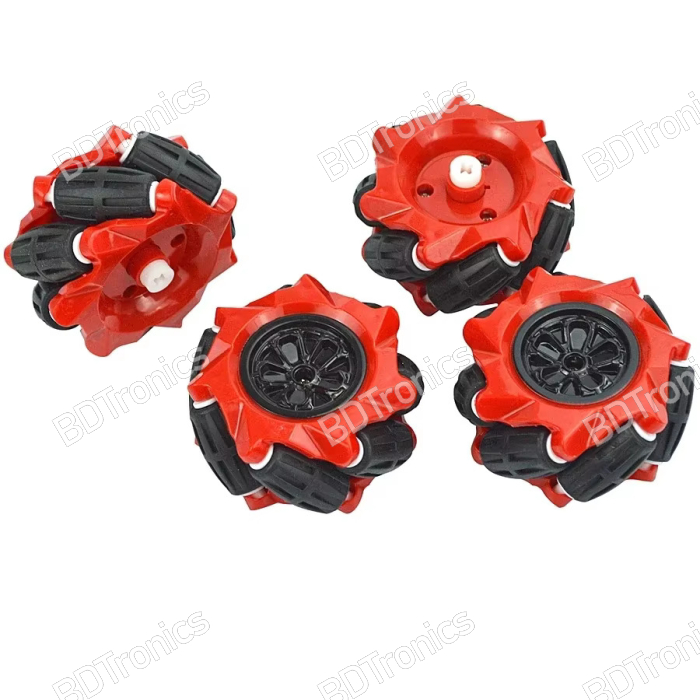

80mm Mecanum Wheel 4pcs Set is designed for omnidirectional robot cars, mobile robots and DIY robotic platforms that require forward, backward, sideways and diagonal movement. BDTronics offers this 80mm Mecanum Wheel set for robotics projects, Arduino and microcontroller-based robot cars, autonomous platforms and educational robotics in Bangladesh. BDTronics provides this 4-wheel set with compatibility for 6.7mm couplings, making it suitable for robotic drive systems using matching motor couplings and wheel adapters.

Mecanum wheels use angled rollers around the wheel circumference to provide multidirectional movement when four wheels are controlled independently. This allows a robot to move forward, reverse, strafe sideways, rotate in place and move diagonally without traditional steering mechanisms. BDTronics Mecanum Wheels are suitable for DIY robot car projects, robotic platforms, warehouse robot prototypes, research projects and STEM learning.

Features:

• 80mm Mecanum wheel set

• 4 wheels included in one set

• Designed for omnidirectional robot movement

• Supports forward and backward movement

• Supports sideways or lateral movement

• Supports diagonal movement

• Allows rotation and turning in place

• Compatible with 6.7mm couplings

• Suitable for four-wheel robotic platforms

• Useful for Arduino robot car projects

• Suitable for ESP32 and other microcontroller-based robots

• Useful for DIY robotics and STEM projects

• Suitable for autonomous mobile robot prototypes

• Compact wheel size for small and medium robotic platforms

• Designed for use with independently controlled drive motors

• Suitable for robotic chassis and mobile platforms

• Easy to integrate with compatible motor and coupling systems

Specifications:

• Product Type: Mecanum Wheel

• Model: Mecanum Wheel 80MM-A

• Wheel Diameter: 80mm

• Quantity: 4pcs/set

• Coupling Compatibility: 6.7mm

• Wheel Type: Mecanum / Omnidirectional Wheel

• Application: Robot car, mobile robot, DIY robotics and automation projects

• Drive Configuration: Suitable for four-wheel independent drive systems

Omnidirectional Robot Movement:

• Mecanum wheels allow a four-wheel robot to move in multiple directions without changing the orientation of the chassis.

• Forward movement is achieved by coordinating all four drive wheels.

• Reverse movement is achieved by reversing the wheel rotation.

• Sideways movement is possible by coordinating the wheels in opposite rotational directions.

• Diagonal movement can be achieved by combining forward or reverse motion with lateral movement.

• Rotation can be performed by driving the wheels on opposite sides in opposite directions.

• Proper wheel orientation and motor control are essential for correct Mecanum movement.

Applications:

• Mecanum robot car

• Omnidirectional robot

• DIY robot vehicle

• Arduino robot car

• ESP32 robot car

• Raspberry Pi robotics projects

• Autonomous mobile robot

• AGV robot prototype

• Educational robotics

• STEM robotics projects

• Robotics competition projects

• Research robot platform

• Indoor mobile robot

• Smart robotic vehicle

• Remote-controlled robot

• Four-wheel drive robot

• Robotic chassis

• Industrial robot prototype

• Warehouse robot prototype

• Material-handling robot prototype

Installation Guide:

• Prepare a compatible four-wheel robot chassis.

• Install one Mecanum wheel at each motor position.

• Make sure the wheels are installed in the correct orientation for a Mecanum drive configuration.

• Use compatible 6.7mm couplings to connect the wheels to suitable motor shafts or drive adapters.

• Ensure each wheel is firmly secured to its coupling.

• Connect each wheel to an independently controllable motor.

• Check that all four wheels rotate freely without contacting the chassis.

• Test forward and reverse movement at low speed.

• Test lateral movement after confirming correct wheel orientation.

• Adjust motor direction in the controller if movement does not match the desired direction.

Important Setup Information:

• All four Mecanum wheels must be installed in the correct orientation.

• Wheel orientation directly affects sideways and diagonal movement.

• Motor speed should be controlled consistently for accurate omnidirectional movement.

• Use motors and couplings suitable for the wheel size and robot load.

• Ensure the 6.7mm coupling is properly matched to your motor and wheel mounting arrangement.

• Check wheel alignment before operating the robot.

• Avoid excessive loads that exceed the mechanical capability of the wheels, couplings or motors.

• A rigid and properly aligned chassis helps improve robot movement accuracy.

Package Includes:

• 4 x 80mm Mecanum Wheels

Product Information:

• Product Name: Mecanum Wheel 80MM-A

• Size: 80mm

• Quantity: 4pcs/set

• Coupling Compatibility: 6.7mm

• Type: Omnidirectional Mecanum Wheel

• Suitable For: Robot cars, mobile robots, Arduino, ESP32, DIY robotics and STEM projects

• Seller: BDTronics, Bangladesh
