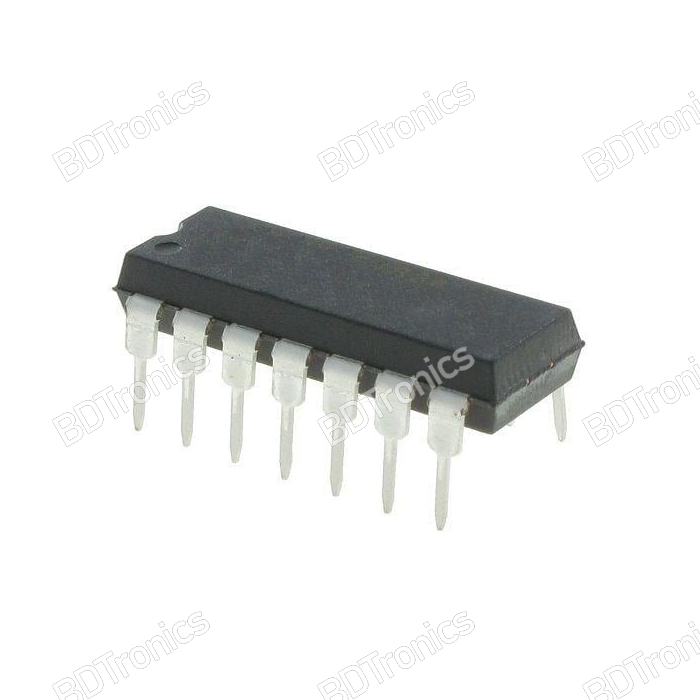

MCP604-E/P Operational Amplifiers - Op Amps Quad 2.7V PDIP 14

MCP604-E/P Operational Amplifiers - Op Amps Quad 2.7V

In stock

SKU PRD-00002579
Categories: ICs
Delivery Info
truck-fast
Inside Dhaka: 1-2 days
Express (Dhaka): 24 hours
Order before 12.00PM
Outside Dhaka: 2-3 days
hand-holding-dollar
Cash on delivery all over BD
Quality
award
100% authentic product
circle-check
Quality product guaranteed
Service
repeat
7 days easy return
credit-card
Safe & secure payment
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account

Product Details

Specifications:

      Technical Specifications

    • Product Category: Operational Amplifiers - Op Amps
    • Mounting Style: Through Hole
    • Package / Case: PDIP-14
    • Number of Channels: 4 Channel
    • Supply Voltage - Max: 5.5 V
    • GBP - Gain Bandwidth Product: 2.8 MHz
    • Output Current per Channel: 22 mA
    • SR - Slew Rate: 2.3 V/us
    • Vos - Input Offset Voltage: 2 mV
    • Supply Voltage - Min: 2.7 V
    • Minimum Operating Temperature: - 40 C
    • Maximum Operating Temperature: + 125 C
    • Ib - Input Bias Current: 5 nA
    • Operating Supply Current: 23 uA
    • Shutdown: No Shutdown
    • CMRR - Common Mode Rejection Ratio: 75 dB
    • en - Input Voltage Noise Density: 29 nV/sqrt Hz
    • Qualification: AEC-Q100
    • Packaging: Tube
    • Amplifier Type: Low Power Amplifier
    • Height: 3.3 mm
    • In - Input Noise Current Density: 0.0006 pA/sqrt Hz
    • Length: 19.05 mm
    • Operating Supply Voltage: 2.7 V to 5.5 V
    • Product: Operational Amplifiers
    • Product Type: Op Amps - Operational Amplifiers
    • PSRR - Power Supply Rejection Ratio: 80 dB
    • Subcategory: Amplifier ICs
    • Supply Type: Single
    • Technology: CMOS
    • Voltage Gain dB: 115 dB
    • Width: 6.35 mm
    • Unit Weight: 0.057144 oz
