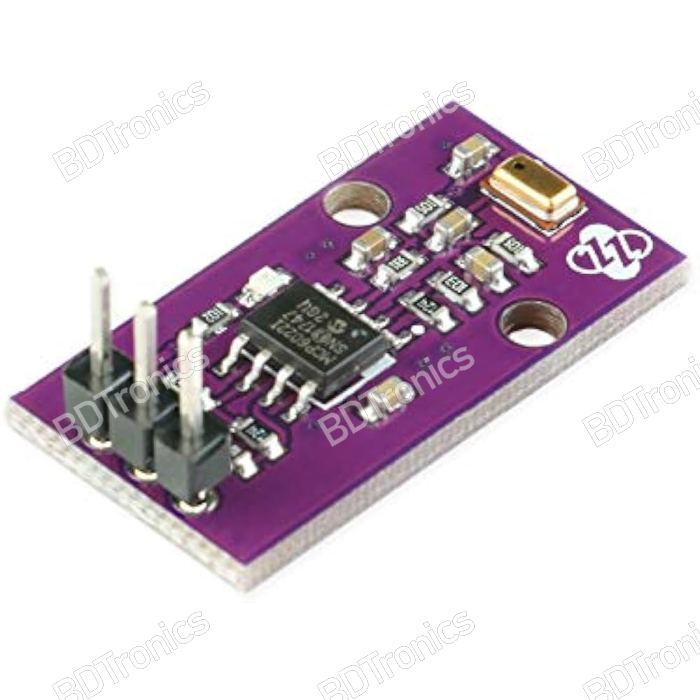

The MCP6022 Amplifier Module CJMCU-622 is a high-performance dual operational amplifier board designed for signal amplification, sensor signal conditioning, audio preamplification, analog signal processing, instrumentation circuits, data acquisition systems, and embedded electronics projects. Based on the popular MCP6022 Rail-to-Rail Operational Amplifier IC, this module delivers excellent performance with low noise, wide bandwidth, low offset voltage, and low power consumption.

Featuring true rail-to-rail input and output operation, the MCP6022 amplifier can accurately process signals close to the supply rails, making it ideal for battery-powered devices, sensor interfaces, portable electronics, IoT systems, and precision measurement applications. With a typical bandwidth of 10MHz and ultra-low distortion characteristics, this amplifier module is suitable for both professional and DIY electronics projects requiring accurate analog signal amplification.

Compatible with Arduino, ESP32, ESP8266, Raspberry Pi, STM32, PIC, AVR, and other microcontroller platforms, the CJMCU-622 module is widely used in audio circuits, instrumentation systems, biomedical devices, industrial automation, robotics, and laboratory applications.

BDTronics supplies carefully tested amplifier modules, sensor interfaces, and analog electronics solutions for engineers, students, researchers, automation developers, and electronics enthusiasts. The MCP6022 CJMCU-622 Amplifier Module is selected for its high precision, low noise operation, and versatile application support.

Features:

• High-performance MCP6022 dual operational amplifier

• Rail-to-Rail input and output operation

• Wide bandwidth up to 10MHz

• Low noise design for precision applications

• Low offset voltage for accurate signal amplification

• Low power consumption

• Unity gain stable

• High signal integrity and stability

• Excellent linearity and low distortion

• Suitable for battery-powered systems

• Compact CJMCU-622 module design

• Fast response and wide frequency range

• Ideal for analog signal conditioning

• Compatible with various microcontroller platforms

• Reliable industrial-grade performance

Specifications:

• Model: CJMCU-622

• Amplifier IC: MCP6022

• Amplifier Type: Dual Operational Amplifier

• Input/Output Type: Rail-to-Rail

• Bandwidth: 10MHz (Typical)

• Noise Density: 8.7 nV/√Hz @ 10kHz (Typical)

• Offset Voltage (Industrial): ±500µV Maximum

• Offset Voltage (Extended): ±250µV Maximum

• Supply Current: 1mA (Typical)

• Total Harmonic Distortion: 0.00053% (Typical, Gain = 1V/V)

• Gain Stability: Unity Gain Stable

• Operating Voltage: 2.5V – 5.5V DC

• Industrial Temperature Range: -40°C to +85°C

• Extended Temperature Range: -40°C to +125°C

How to Use:

• Connect the power supply between 2.5V and 5.5V

• Connect the input signal to the amplifier input terminals

• Configure gain using external resistor networks if required

• Connect the amplified output to ADC, microcontroller, or processing circuitry

• Ensure proper grounding for low-noise operation

• Verify signal levels before connecting sensitive devices

• Use shielded wiring for precision applications

Applications:

• Sensor signal amplification

• Microphone preamplifier circuits

• Audio signal processing

• Analog signal conditioning

• Data acquisition systems

• Instrumentation amplifiers

• Biomedical electronics

• Industrial automation systems

• Measurement and control circuits

• Battery-powered electronics

• Arduino projects

• ESP32 and ESP8266 applications

• Raspberry Pi analog interfaces

• Robotics systems

• IoT sensor nodes

• Laboratory testing equipment

• Embedded system development

Advantages:

• True rail-to-rail operation

• Wide 10MHz bandwidth

• Extremely low noise performance

• Very low distortion output

• Low power consumption

• High precision amplification

• Stable operation across wide temperature ranges

• Suitable for portable and industrial applications

• Easy integration with microcontrollers

Package Includes:

• 1 × MCP6022 Amplifier Module CJMCU-622
