MBR30100CT Schottky Barrier Rectifier designed for high efficiency power rectification in SMPS power supplies, DC-DC converters, battery chargers, solar systems, and industrial electronics. This dual diode provides fast switching, low forward voltage drop, and high current capability, making it ideal for power circuits requiring low loss and high reliability.

The MBR30100CT features dual Schottky diodes in a common cathode configuration, delivering up to 30A total current (15A per leg). With a maximum reverse voltage of 100V, it is suitable for low to medium voltage high current applications. The low forward voltage drop (~0.84V) improves efficiency and reduces heat generation compared to standard rectifier diodes.

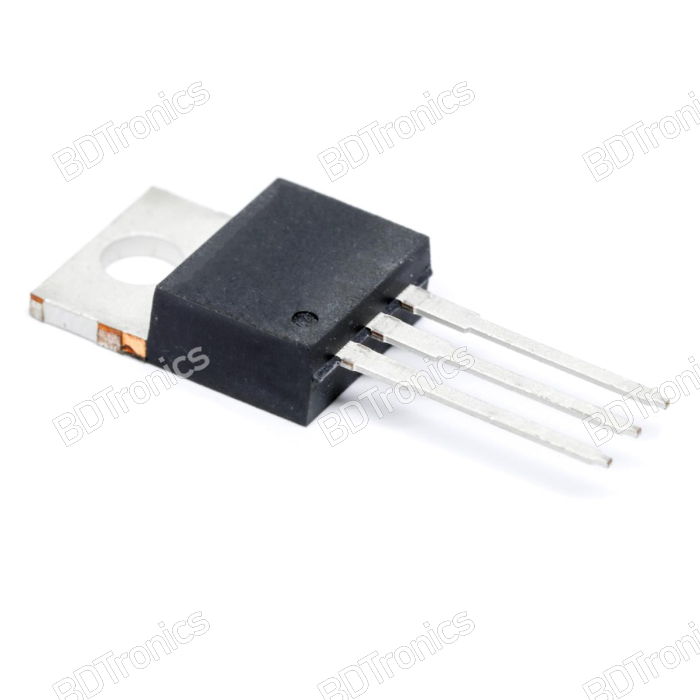

This diode is widely used for polarity protection, freewheeling (recirculating) diode in inductive loads, switching rectification, and output rectification in SMPS circuits. The TO-220 package ensures efficient heat dissipation and easy mounting with heatsinks.

BDTronics supplies high quality MBR30100CT Schottky diodes in Bangladesh for electronics engineers, power supply designers, inverter repair technicians, and industrial electronics developers. This component is suitable for both new designs and replacement in power circuits.

Features:

• Dual Schottky Barrier Rectifier Diode

• High Current Capacity 30A Total (15A per Diode)

• Reverse Voltage Rating 100V

• Low Forward Voltage Drop (~0.84V)

• Fast Switching Speed for High Frequency Applications

• High Surge Current Capability

• Guard Ring Protection for Transient Safety

• Low Reverse Leakage Current

• TO-220AB Package for Easy Heatsink Mounting

• Lead-Free and RoHS Compliant Device

• High Reliability for Industrial Applications

• Efficient Power Rectification with Reduced Heat Loss

Applications:

• SMPS Power Supply Output Rectification

• DC-DC Converter Circuits

• Battery Charger Circuits

• Solar Power Systems

• Polarity Protection Circuits

• Freewheeling Diode for Inductive Loads

• Motor Driver Protection Circuits

• Industrial Power Electronics

• UPS Power Systems

• LED Power Supply Circuits

• Power Switching Applications

How to Use:

• Identify pin configuration (common cathode, dual anode)

• Connect according to circuit requirement for rectification or protection

• Use heatsink for high current applications

• Ensure proper polarity during installation

• Use in SMPS output stage for efficient rectification

• Suitable for parallel current paths in power circuits

• Verify voltage and current ratings before use

Specifications:

• Model: MBR30100CT

• Diode Type: Schottky Barrier Rectifier

• Configuration: Dual Diode (Common Cathode)

• Peak Repetitive Reverse Voltage (VRRM): 100V

• Average Forward Current (IO): 30A Total (15A per leg)

• Forward Voltage (VF max): 0.84V @ 25°C

• Reverse Leakage Current (IR max): 0.05mA @ 25°C

• Package: TO-220AB

• Mounting Type: Through Hole

• Compliance: RoHS, Lead-Free

Package Includes:

• 1 × MBR30100CT Schottky Diode TO-220
