The Single MAX7219 Dot Matrix Display Module RED Color (8×8 LED Dot Matrix Display) is a high-performance LED display module designed for visual output in microcontroller and embedded system projects. Powered by the MAX7219 display driver IC, this module provides full control over 64 individual LEDs using only a few microcontroller pins, making it ideal for Arduino, ESP8266, ESP32, Raspberry Pi, PIC, AVR, STM32, and other development boards.

The MAX7219 driver includes a BCD code-B decoder, multiplexing circuitry, digit/segment drivers, and built-in 8×8 static RAM that stores display data. This allows individual LEDs or rows/columns to be updated without refreshing the entire display. With adjustable brightness control and daisy-chaining capability, this module is perfect for scrolling text displays, animations, counters, timers, status indicators, graphics, and creative LED projects.

It requires only one external resistor to set LED current, making it simple, efficient, and reliable. The module is pre-soldered and includes a red LED dot matrix display, providing bright and clear visibility for indoor or semi-outdoor applications.

Features:

• Single 8×8 red LED dot matrix display module

• Based on the MAX7219 common-cathode display driver IC

• Controls up to 64 individual LEDs

• Serial input interface for easy microcontroller communication

• Requires only three data control wires (DIN, CLK, CS)

• Adjustable brightness intensity through software control

• Built-in 8×8 static RAM for storing display data

• Supports code-B decoding or no-decode mode for each digit

• Allows individual LED or digit addressing

• Excellent for scrolling text, graphics, and animations

• Supports multiple module daisy-chain connection

• Only one external resistor needed for segment current setting

• Stable and efficient LED driving with multiplexing

• Compact and suitable for custom enclosures

How to Use

• Connect VCC, GND, DIN, CLK, and CS to your microcontroller

• Use Arduino libraries such as LedControl or MD_MAX72XX for easy programming

• Daisy-chain multiple modules by connecting DOUT to the next module’s DIN

• Adjust intensity/brightness using software commands

• Display custom characters, icons, numbers, or scrolling messages using simple functions

• Ensure stable 5V power supply for best LED brightness

• Ideal for dashboards, text tickers, and LED notice boards

Applications

• Scrolling text displays

• LED animation panels

• Numeric and graphical indicators

• Clocks and timers

• Temperature and sensor dashboards

• DIY notice boards

• Robotics and embedded visual output

• Game scoreboards

• Educational electronics projects

Specifications:

• LED Type: 8×8 Red Dot Matrix

• Driver IC: MAX7219

• LED Count: 64 LEDs (8 rows × 8 columns)

• Input Voltage: 5V

• Interface: Serial (DIN, CLK, CS/LOAD)

• Color: Red

• Brightness Control: Yes (software adjustable)

• Memory: 8×8 static RAM on chip

• Display Type: Common-cathode

• Module Type: Single MAX7219 LED dot matrix display

• Included: Connecting cables

Included in Package

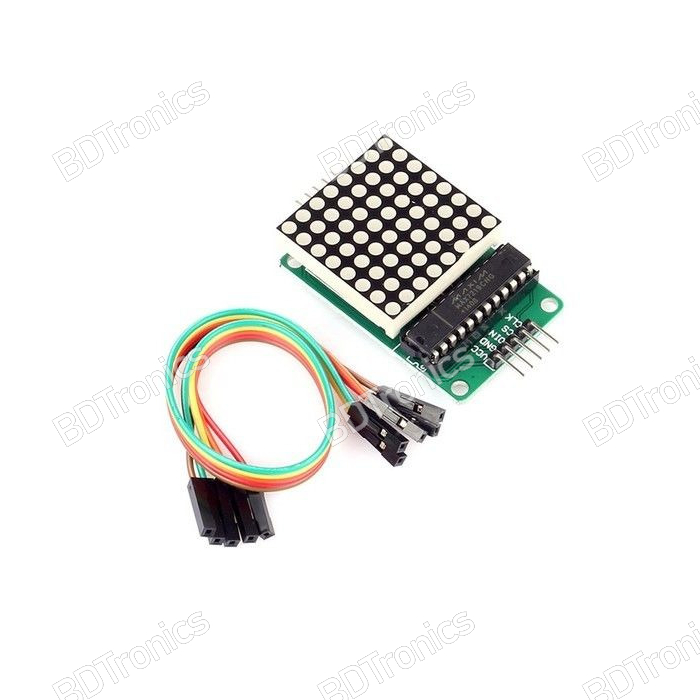

• 1 x MAX7219 8×8 Dot Matrix Display Module (Red)

• 1 x Jumper Cable Set
