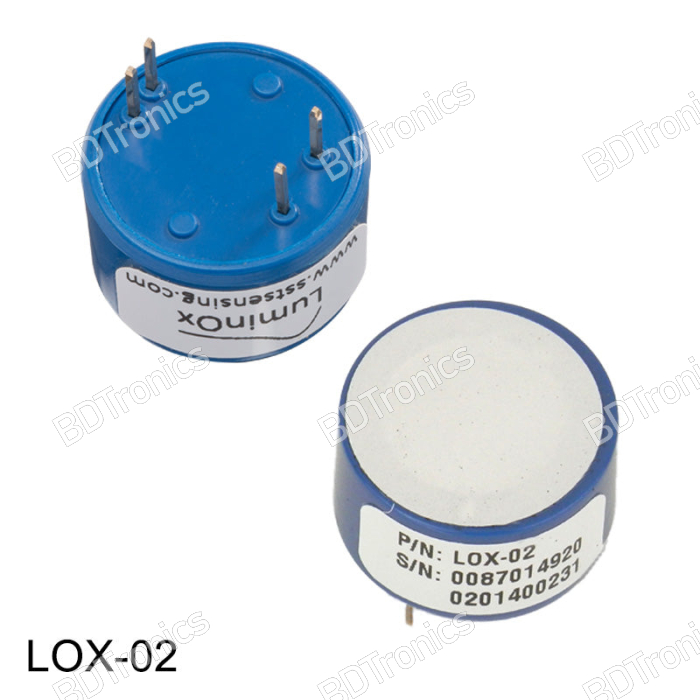

The LuminOX LOX-02 25% Oxygen Sensor is an optical oxygen sensor that measures ambient oxygen levels using fluorescence quenching by oxygen. BDTronics provides this sensor and its related MX Board and development kit options for electronics, prototyping, gas sensing, and OEM integration applications in Bangladesh. It is designed to offer durability, low drift, low cross-sensitivity, and a longer lifespan than typical electrochemical oxygen sensors because the UV sensor decay clock only runs while the oxygen level is being measured.

Features:

• Measures oxygen using fluorescence quenching by oxygen.
• Low drift and low cross-sensitivity to other gases.
• Measurement range of 0 to 25% O2 with 0.01% resolution.
• Compact and low-power design for easy integration.
• MX Board adds barometric pressure, temperature, and % relative humidity sensors.
• MX Board enables easy sensor calibration and serial UART output.
• CM-42951 Development Kit supports data logging using GasLab software and includes on-board memory.

Specifications:

Models and Options:

• LOX-O2 Sensor: For integration into high-volume OEM products.
• CM-42950 MX Board: Oxygen sensor on MX Board with the same functionality as the development kit, but without USB cable or software.
• CM-42951 Development Kit: Includes the LOX-02 sensor, MX Board, and Serial UART to USB cable. It works with free GasLab software for measuring and graphing ambient air oxygen, barometric pressure, temperature, and % relative humidity, with on-board memory for data logging.

Applications:

• Ambient oxygen level measurement in the 0-25% O2 range.
• OEM product integration where a compact oxygen sensor is required.
• Systems using UART or analog oxygen sensor output.
• Bench-top or sampling setups when used with compatible tube cap adapters and gas sampling accessories.
• Closed-loop sampling and gas measurement applications supported by the MX Board and development kit.

How to Use:

1. For the CM-42951 Development Kit, connect the MX Board to a PC using the included Serial UART to USB cable.
2. Use GasLab software to measure, graph, calibrate, and log ambient oxygen, barometric pressure, temperature, and % relative humidity data.
3. For the CM-42950 MX Board, use the same functionality without the USB cable or software.
4. For the LOX-O2 sensor, integrate it into an OEM system using the supported UART or analog interface.
5. Calibrate the sensor using the MX Board's calibration support where applicable.

Installation and Wiring:

The LuminOX LOX-02 sensor and MX Board operate from 4.5 to 5.5 VDC and support UART or analog interfaces. The MX Board uses a MOLEX 0901420010 + 0901190109 connector. For integration, follow the connector and interface requirements of your host system. BDTronics supplies these oxygen sensing components for users building or prototyping gas measurement systems in Bangladesh. Manufacturers do not recommend soldering directly to the sensor pins; using suitable pin sockets is recommended.

Compatibility:

• GasLab software for setup, calibration, data logging, and real-time data analysis.
• Windows XP SP2 or newer with Microsoft .NET 3.5 Runtime Libraries for data logging or changing defaults.
• UART or analog host interfaces.
• CM-42950 MX Board and CM-42951 Development Kit hardware options.
• Compatible gas sampling accessories such as tube cap adapters, RS485 Modbus RTU cable, micro-pump kit, Nafion tubing, and micro gas sampling pumps.

Package Includes:

• LOX-O2 Sensor: LuminOX LOX-02 oxygen sensor only.
• CM-42950 MX Board: Oxygen sensor on MX Board.
• CM-42951 Development Kit: LOX-02 sensor, MX Board, and Serial UART to USB cable. Software is available separately or as a free download from GasLab.

Safety Information:

• Use only within the specified voltage range of 4.5 to 5.5 VDC.
• Operate within the specified temperature range of -30°C to +60°C.
• Do not exceed the specified barometric pressure range of 500 to 1200 mbar.
• Handle the sensor and board with proper ESD precautions.
• Use suitable pin sockets instead of soldering directly to sensor pins.
