Specifications:

Technical Specifications

• Product Category: Operational Amplifiers - Op Amps
• Mounting Style: Through Hole

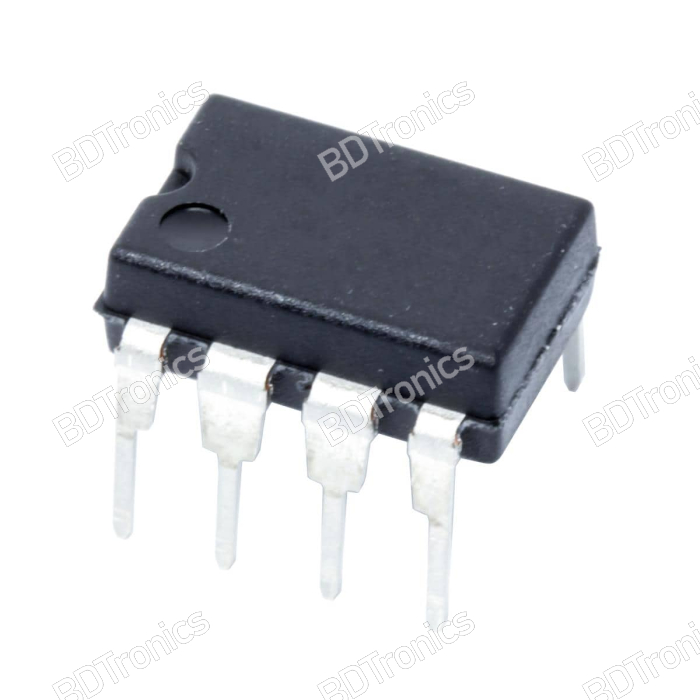

• Package / Case: PDIP-8
• Number of Channels: 2 Channel
• Supply Voltage - Max: 32 V
• GBP - Gain Bandwidth Product: 700 kHz
• Output Current per Channel: 20 mA
• SR - Slew Rate: 300 mV/us
• Vos - Input Offset Voltage: 7 mV
• Supply Voltage - Min: 3 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Ib - Input Bias Current: 250 nA
• Operating Supply Current: 350 uA
• Shutdown: No Shutdown
• CMRR - Common Mode Rejection Ratio: 80 dB
• en - Input Voltage Noise Density: 40 nV/sqrt Hz
• Packaging: Tube
• Amplifier Type: High Gain Amplifier
• Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V
• Features: Standard Amps
• Height: 4.57 mm
• Input Type: Rail-to-Rail
• Length: 9.81 mm
• Maximum Dual Supply Voltage: +/- 16 V
• Minimum Dual Supply Voltage: +/- 1.5 V
• Operating Supply Voltage: 3 V to 32 V, +/- 1.5 V to +/- 16 V
• Product: Operational Amplifiers
• Product Type: Op Amps - Operational Amplifiers
• Subcategory: Amplifier ICs
• Supply Type: Single, Dual
• Technology: Bipolar
• Vcm - Common Mode Voltage: Negative Rail to Positive Rail - 1.5 V
• Voltage Gain dB: 100 dB
• Width: 6.35 mm
• Unit Weight: 0.015873 oz
