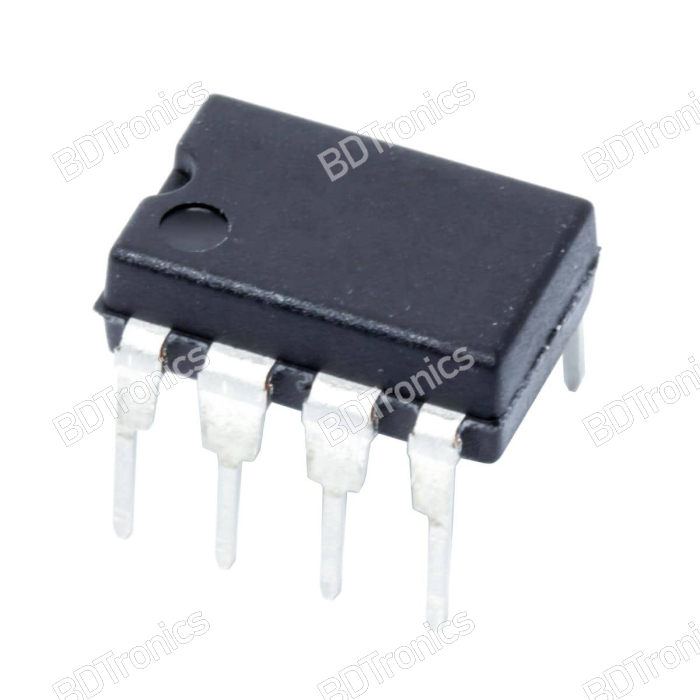

LM318P Operational Amplifiers - Op Amps Single High Speed PDIP 8
This product is out of stock. Are you interested about this product?
Order before 12.00PM
Specifications:
- Product Category: Operational Amplifiers - Op Amps
- Mounting Style: Through Hole
- Package / Case: PDIP-8
- Number of Channels: 1 Channel
- Supply Voltage - Max: 40 V
- GBP - Gain Bandwidth Product: 15 MHz
- Output Current per Channel: 20 mA
- SR - Slew Rate: 70 V/us
- Vos - Input Offset Voltage: 10 mV
- Supply Voltage - Min: 10 V
- Minimum Operating Temperature: 0 C
- Maximum Operating Temperature: + 70 C
- Ib - Input Bias Current: 500 nA
- Operating Supply Current: 5 mA
- Shutdown: No Shutdown
- CMRR - Common Mode Rejection Ratio: 100 dB
- en - Input Voltage Noise Density: 15 nV/sqrt Hz
- Packaging: Tube
- Amplifier Type: General Purpose Amplifier
- Dual Supply Voltage: +/- 9 V, +/- 12 V, +/- 15 V, +/- 18 V
- Height: 4.57 mm
- Length: 9.81 mm
- Maximum Dual Supply Voltage: +/- 20 V
- Minimum Dual Supply Voltage: +/- 5 V
- Operating Supply Voltage: +/- 5 V to +/- 20 V
- Product: Operational Amplifiers
- Product Type: Op Amps - Operational Amplifiers
- Subcategory: Amplifier ICs
- Supply Type: Dual
- Technology: Bipolar
- Vcm - Common Mode Voltage: Negative Rail + 3.5 V to Positive Rail - 3.5 V
- Voltage Gain dB: 106.02 dB
- Width: 6.35 mm
- Unit Weight: 0.015535 oz
