Specifications:

Technical Specifications

• Product Category: Analog Comparators
• Mounting Style: Through Hole

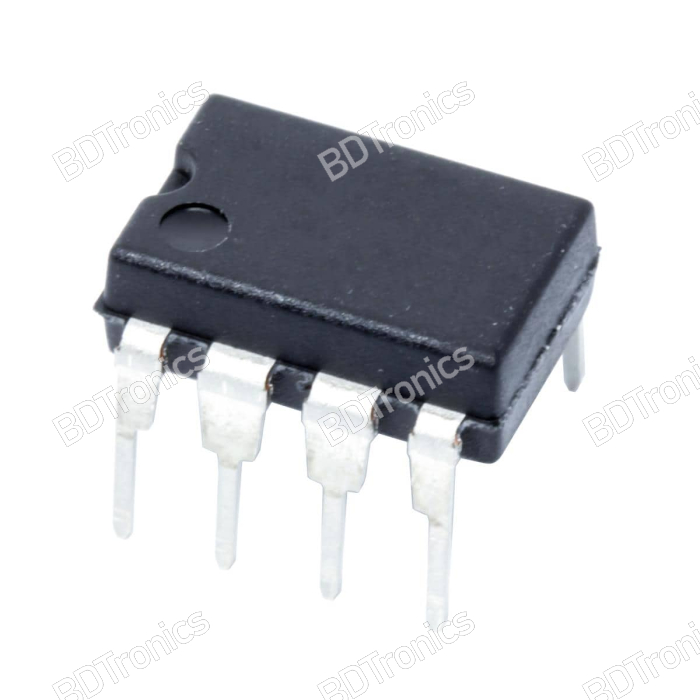

• Package / Case: PDIP-8
• Number of Channels: 1 Channel
• Output Type: CMOS, TTL
• Response Time: 115 ns
• Comparator Type: Differential
• Supply Voltage - Min: 3.5 V
• Supply Voltage - Max: 30 V
• Operating Supply Current: 7.5 mA
• Output Current per Channel: 50 mA
• Vos - Input Offset Voltage: 7.5 mV
• Ib - Input Bias Current: 250 nA
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Packaging: Tube
• Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V
• Features: Strobe, Vos Adj Pin
• GBP - Gain Bandwidth Product: -
• Height: 4.57 mm
• Input Type: Differential
• Ios - Input Offset Current: 50 nA
• Length: 9.81 mm
• Maximum Dual Supply Voltage: +/- 15 V
• Minimum Dual Supply Voltage: 1.75 V
• Operating Supply Voltage: 3.5 V to 30 V
• Product: Analog Comparators
• Product Type: Analog Comparators
• Reference Voltage: No
• Shutdown: No Shutdown
• Subcategory: Amplifier ICs
• Supply Type: Single, Dual
• Technology: Bipolar
• Type: Voltage Comparator
• Vcm - Common Mode Voltage: 0.5 V
• Voltage Gain dB: 106.02 dB
• Width: 6.35 mm
• Unit Weight: 0.015873 oz
