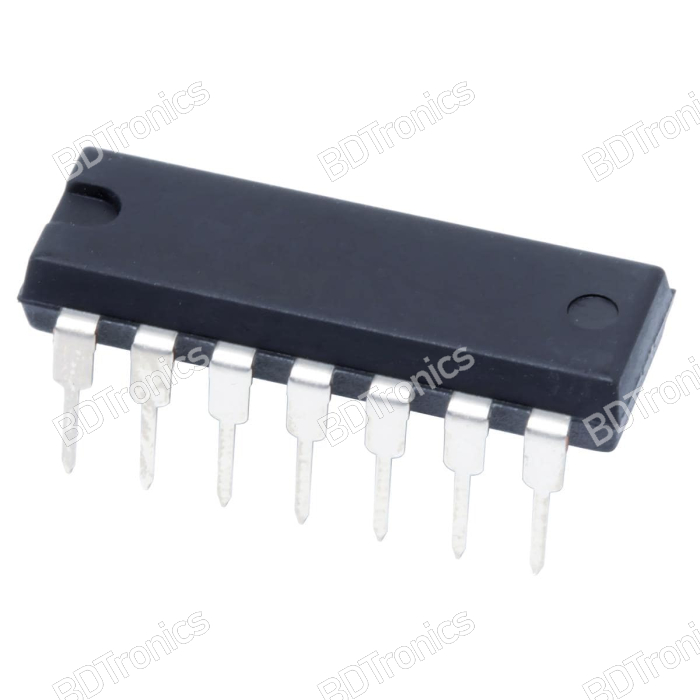

LM224NE4 Operational Amplifiers - Op Amps Quad PDIP 14

LM224NE4 Operational Amplifiers - Op Amps Quad

In stock

SKU PRD-00002560
Categories: ICs
Delivery Info
truck-fast
Inside Dhaka: 1-2 days
Express (Dhaka): 24 hours
Order before 12.00PM
Outside Dhaka: 2-3 days
hand-holding-dollar
Cash on delivery all over BD
Quality
award
100% authentic product
circle-check
Quality product guaranteed
Service
repeat
7 days easy return
credit-card
Safe & secure payment
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account

Product Details

Specifications:

      Technical Specifications

    • Product Category: Operational Amplifiers - Op Amps
    • Mounting Style: Through Hole
    • Package / Case: PDIP-14
    • Number of Channels: 4 Channel
    • Supply Voltage - Max: 32 V
    • GBP - Gain Bandwidth Product: 1.2 MHz
    • Output Current per Channel: 20 mA
    • SR - Slew Rate: 500 mV/us
    • Vos - Input Offset Voltage: 5 mV
    • Supply Voltage - Min: 3 V
    • Minimum Operating Temperature: - 25 C
    • Maximum Operating Temperature: + 85 C
    • Ib - Input Bias Current: 150 nA
    • Operating Supply Current: 1.4 mA
    • Shutdown: No Shutdown
    • CMRR - Common Mode Rejection Ratio: 80 dB
    • en - Input Voltage Noise Density: 35 nV/sqrt Hz
    • Packaging: Tube
    • Amplifier Type: High Gain Amplifier
    • Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V
    • Height: 4.57 mm
    • Input Type: Rail-to-Rail
    • Length: 19.3 mm
    • Maximum Dual Supply Voltage: +/- 16 V
    • Minimum Dual Supply Voltage: +/- 1.5 V
    • Operating Supply Voltage: 3 V to 32 V, +/- 1.5 V to +/- 16 V
    • Product: Operational Amplifiers
    • Product Type: Op Amps - Operational Amplifiers
    • Subcategory: Amplifier ICs
    • Supply Type: Single, Dual
    • Technology: Bipolar
    • Vcm - Common Mode Voltage: Negative Rail to Positive Rail - 1.5 V
    • Voltage Gain dB: 100 dB
    • Width: 6.35 mm
    • Unit Weight: 0.032734 oz
