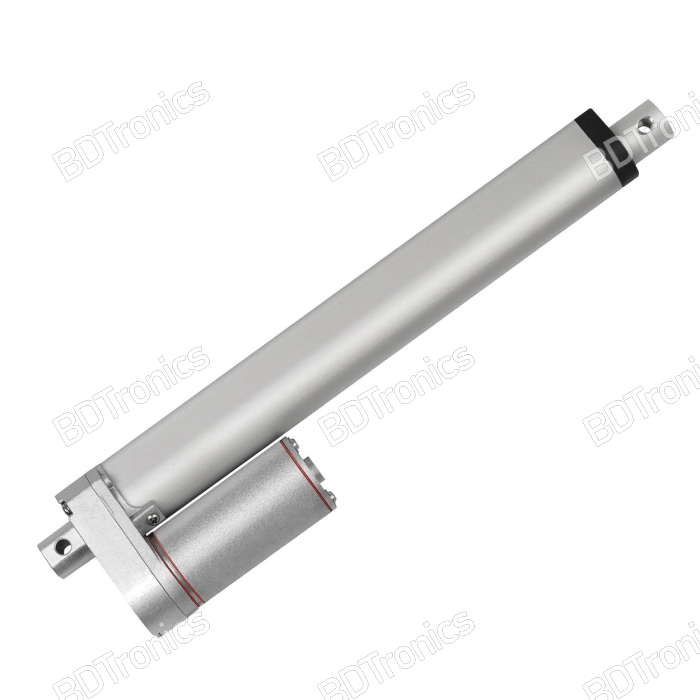

The 300mm Linear Actuator is a heavy-duty electric linear motion actuator designed for applications requiring controlled push and pull movement. With a 12V DC motor, 1500N load capacity and 7mm/s operating speed, BDTronics offers this actuator for automation, robotics, adjustable mechanisms, lifting systems, machinery and DIY projects.

The actuator converts rotary motor motion into precise linear movement, providing reliable extension and retraction for mechanical systems. Its 300mm stroke length makes it suitable for applications where a relatively long linear travel is required while maintaining high pushing force.

Features:

• Heavy-duty DC linear actuator

• 12V DC operating voltage

• 1500N maximum load force

• 300mm linear stroke

• 7mm/s operating speed

• Electric extension and retraction

• Suitable for push and pull applications

• High-force linear motion

• Compact solution for automated mechanical movement

• Suitable for robotics and automation projects

• Useful for lifting, positioning and adjustment mechanisms

• Suitable for DIY machinery and custom automation systems

• Simple 12V DC motor control

Specifications:

• Product Type: Electric Linear Actuator

• Operating Voltage: DC 12V

• Stroke Length: 300mm

• Speed: 7mm/s

• Maximum Force: 1500N

• Motion: Linear extension and retraction

• Drive Type: Motorized screw actuator

• Application: Linear motion, lifting, pushing, pulling and positioning

• Control: 12V DC power with suitable polarity/reversing control

Applications:

This 12V linear actuator can be used for robotics, CNC and automation equipment, adjustable platforms, lifting mechanisms, electric furniture, machinery, agricultural equipment, solar tracking systems, doors and hatches, industrial mechanisms and DIY automation projects.

It is particularly useful when a conventional motor and mechanical linkage would be more complicated and a direct electric linear motion solution is preferred.

Control:

The actuator extends and retracts by changing the polarity of the 12V DC motor supply. A suitable DPDT switch, reversing relay, H-bridge motor driver or actuator controller can be used to control the direction of movement.

Always use a suitable power supply and switching device capable of handling the actuator's actual operating current and starting/stall current.

Important Notes:

• The 1500N rating represents the maximum specified force; actual usable force depends on the mechanical installation and operating conditions.

• Use suitable mechanical mounting brackets and ensure the actuator is properly aligned with the load.

• Do not exceed the rated load.

• Use appropriate electrical protection such as a fuse or circuit breaker.

• Ensure the actuator is operated within its specified duty cycle to prevent motor or gearbox overheating.
