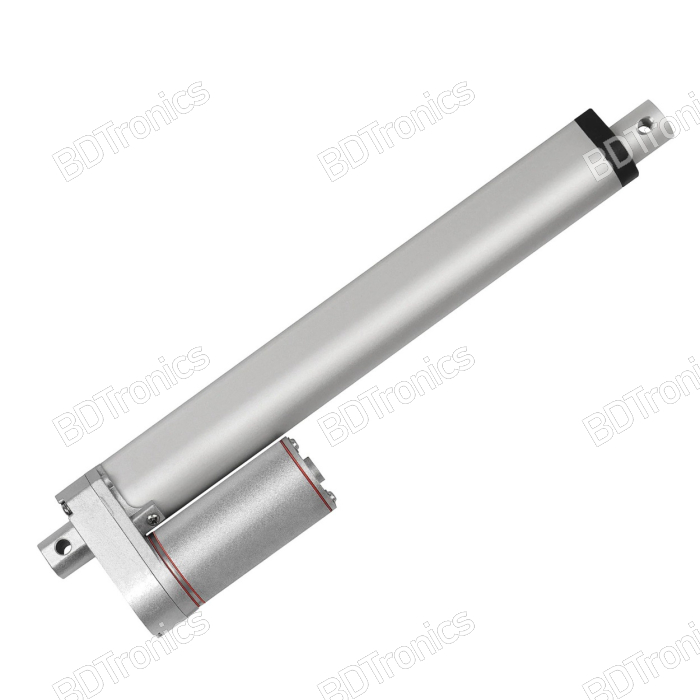

The 200mm Linear Actuator is a high-force electric linear motion actuator designed for controlled pushing, pulling, lifting and positioning applications. With a 12V DC motor, 1500N maximum force and 7mm/s operating speed, BDTronics offers this actuator for robotics, automation, machinery, adjustable mechanisms and DIY projects.

With a 200mm stroke length, this actuator provides reliable linear extension and retraction while delivering high mechanical force. It can be controlled by reversing the polarity of the 12V DC motor using a suitable switch, relay, H-bridge or linear actuator controller.

Features:

• Heavy-duty electric linear actuator

• DC 12V operating voltage

• 200mm stroke length

• 1500N maximum force

• 7mm/s linear movement speed

• Motorized extension and retraction

• High-force push and pull operation

• Suitable for lifting and positioning mechanisms

• Suitable for robotics and automation

• Useful for DIY machinery and mechanical projects

• Simple 12V DC electrical control

• Suitable for custom automated mechanisms

Specifications:

• Product Type: Electric Linear Actuator

• Operating Voltage: DC 12V

• Stroke Length: 200mm

• Speed: 7mm/s

• Maximum Force: 1500N

• Movement: Linear extension and retraction

• Drive: Motorized screw mechanism

• Application: Pushing, pulling, lifting, positioning and linear motion

• Control: 12V DC with polarity-reversing control

Applications:

The actuator is suitable for robotics, automation systems, CNC and machinery projects, adjustable platforms, lifting mechanisms, solar tracking systems, electric furniture, doors and hatches, agricultural machinery and DIY automation.

It can be used wherever a DC-powered motorized linear movement mechanism is required instead of a conventional rotary motor and mechanical linkage.

Control:

The direction of movement can be controlled by reversing the polarity of the 12V DC motor. A suitable DPDT switch, reversing relay, H-bridge driver or linear actuator controller can be used.

Select a power supply and switching device capable of handling the actuator's operating and starting/stall current.

Important Notes:

• 1500N is the maximum specified force rating.

• Do not exceed the rated load.

• Install the actuator with proper alignment to prevent excessive side loading.

• Use appropriate mechanical mounting points and brackets.

• A suitable fuse or circuit protection is recommended.

• Follow the actuator's appropriate duty cycle to prevent overheating during repeated operation.
