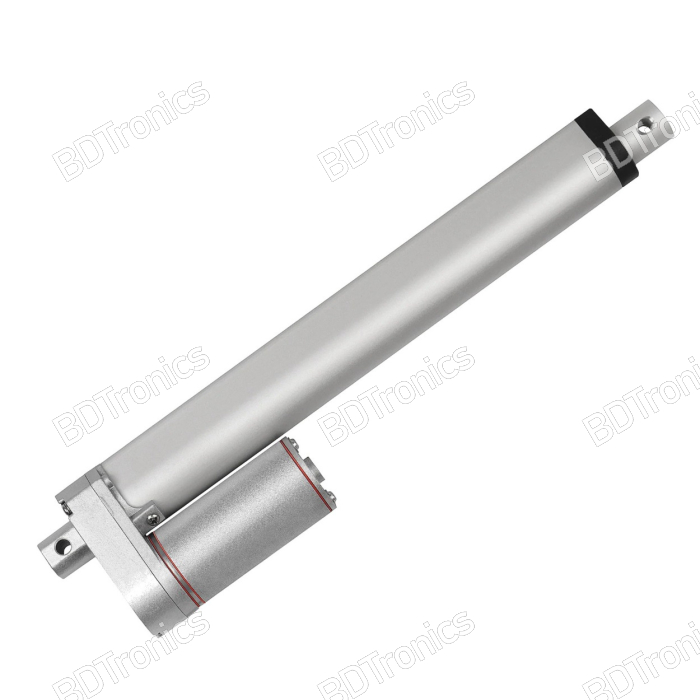

The 100mm Linear Actuator is a compact, high-force electric linear motion actuator designed for controlled pushing, pulling, lifting and positioning applications. With a DC 12V motor, 100mm stroke, 7mm/s speed and 1500N maximum force, BDTronics offers this actuator for robotics, automation, machinery and DIY mechanical projects.

Its 100mm stroke provides controlled linear movement in applications where a shorter travel distance is required. The motorized screw mechanism converts rotary motor movement into linear extension and retraction, making it suitable for automated mechanisms that require strong and repeatable linear motion.

Features:

• Heavy-duty electric linear actuator

• DC 12V operating voltage

• 100mm stroke length

• 1500N maximum force

• 7mm/s linear movement speed

• Motorized extension and retraction

• High-force push and pull operation

• Compact stroke length for space-limited applications

• Suitable for lifting and positioning mechanisms

• Suitable for robotics and automation projects

• Useful for machinery and DIY automation

• Simple 12V DC motor control

• Suitable for custom mechanical systems

Specifications:

• Product Type: Electric Linear Actuator

• Operating Voltage: DC 12V

• Stroke Length: 100mm

• Speed: 7mm/s

• Maximum Force: 1500N

• Movement: Linear extension and retraction

• Drive Mechanism: Motorized screw mechanism

• Application: Pushing, pulling, lifting and positioning

• Control: 12V DC with polarity-reversing control

Applications:

This 100mm linear actuator is suitable for robotics, industrial automation, CNC and machinery projects, adjustable mechanisms, lifting systems, solar tracking systems, electric furniture, doors and hatches, agricultural equipment and DIY automation projects.

The shorter 100mm stroke makes it useful for mechanisms where limited linear travel is required while maintaining a high force capability.

Control:

The actuator extends or retracts by reversing the polarity of the 12V DC motor. Direction can be controlled using a suitable DPDT switch, reversing relay, H-bridge motor driver or linear actuator controller.

Use a power supply and switching device capable of handling the actuator's operating and starting/stall current.

Important Notes:

• 1500N is the maximum specified force rating.

• Do not exceed the rated load.

• Install the actuator with proper alignment and avoid excessive side loading.

• Use suitable mounting brackets and secure mechanical connections.

• A suitable fuse or circuit protection is recommended.

• Allow appropriate rest periods during repeated operation to prevent overheating.
