LILYGO® TTGO T-Call V1.4 ESP32 Wireless GPRS SIM Card Antenna SIM800L Module
Out of stock
This product is out of stock. Are you interested about this product?
Order before 12.00PM

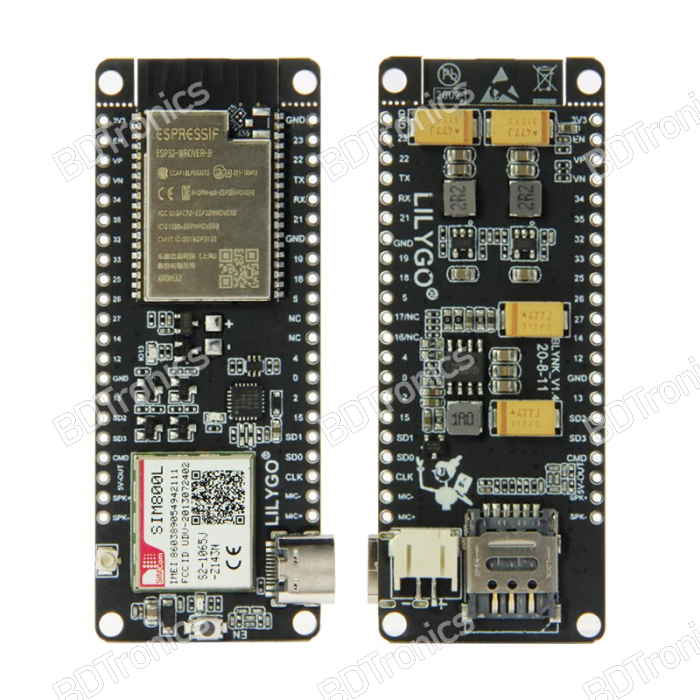

TTGO T-CALL Version 1.4 ESP32 2.4GHz wireless module development board.
| Hardware Specifications | |
| Chipset | ESPRESSIF-ESP32 240MHz Xtensa® single-/dual-core 32-bit LX6 microprocessor |
| FLASH | QSPI flash 4MB / PSRAM 8MB |
| SRAM | 520 kB SRAM |
| Button | Reset |
| Modular interface | UART、SPI、SDIO、I2C、PWM、TV PWM、I2S、IRGPIO |
| On-board clock | 40MHz crystal oscillator |
| Working voltage | 2.7V-3.6V |
| Working current | About 70mA |
| Sleep current | About 1.1mA |
| SIM card | Only supports Nano SIM card |
| Working temperature range | -40℃ ~ +85℃ |
| Size&Weight | 78.83mm*28.92mm*8.06mm(11.77g) |
|
Power Supply Specifications |
|
| Power Supply | USB 5V/1A |
| Charging current | 500mA |
| Battery | 3.7V lithium battery |
| JST Connector | 2Pin 1.25mm |
| USB | Type-C |
|
Wi-Fi |
|
| Standard | FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC |
| Protocol | 802.11 b/g/n(802.11n，speed up to150Mbps)A-MPDU and A-MSDU polymerization，support 0.4μS Protection interval |
| Frequency range | 2.4GHz~2.5GHz(2400M~2483.5M) |
| Transmit Power | 20dBm |
| Communication distance | 300m |
|
Bluetooth |
|
| Protocol | meet bluetooth v4.2BR/EDR and BLE standard |
| Radio frequency | with -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH |
| Audio frequency | CVSD&SBC audio frequency |
|
Software specification |
|
| Wi-Fi Mode | Station/SoftAP/SoftAP+Station/P2P |
| Security mechanism | WPA/WPA2/WPA2-Enterprise/WPS |
| Encryption Type | AES/RSA/ECC/SHA |
| Firmware upgrade | UART download/OTA（Through network/host to download and write firmware） |
| Software Development | Support cloud server development /SDK for user firmware development |
| Networking protocol | IPv4、IPv6、SSL、TCP/UDP/HTTP/FTP/MQTT |
| User Configuration | AT + Instruction set, cloud server, android/iOSapp |
| OS | FreeRTOS |
Github:
https://github.com/Xinyuan-LilyGO/LilyGo-T-Call-SIM800
