The LiitoKala 3.2V 30Ah LiFePO4 battery cell is a high-performance, long-life lithium iron phosphate cell designed for energy storage, electric mobility, and high-drain applications. Built with advanced lithium technology, it offers stable voltage, low internal resistance (<2mΩ), and exceptional safety performance.

With a nominal capacity of 30Ah and nominal voltage of 3.2V, this LiFePO4 cell provides excellent energy density and long cycle life, exceeding 2000 charge-discharge cycles at 80% DOD (Depth of Discharge). The cell supports flexible pack configurations such as 4S, 8S, 12S, 16S, etc., making it ideal for both low-voltage and high-voltage battery systems.

The LiitoKala 30Ah LiFePO4 battery delivers reliable power for electric vehicles, solar energy storage systems, inverters, medical instruments, and industrial tools. It maintains strong performance across a wide temperature range, ensuring dependable operation in various environments.

Features:

• High energy density with stable 3.2V nominal voltage

• Long cycle life: over 2000 cycles at 80% DOD

• Low internal resistance (<2mΩ) for high efficiency

• High continuous discharge current up to 100A (5C), peak 300A (10C for 3 seconds)

• Fast charging supported (standard 20A, fast 40A)

• Environmentally friendly and excellent thermal stability

• Wide operating temperature range (-20°C to 60°C)

• Safe and reliable performance with abuse tolerance

• Suitable for building custom battery packs (4S, 8S, 12S, 16S, etc.)

Specifications:

• Brand: LiitoKala

• Battery Type: LiFePO4 (Lithium Iron Phosphate)

• Nominal Capacity: 30Ah

• Nominal Voltage: 3.2V

• Battery Dimension: 20 × 110 × 140mm

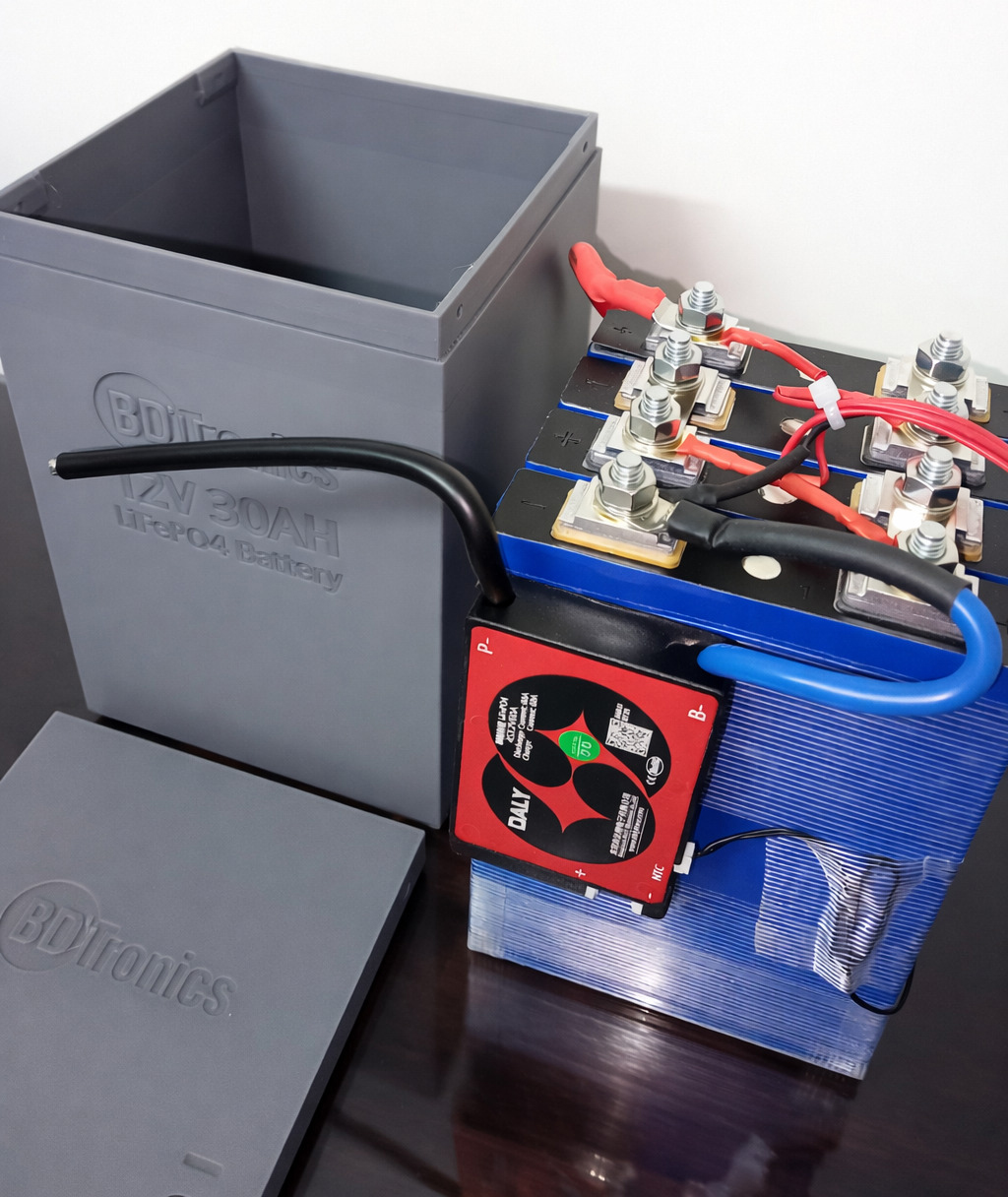

• 12V Battery Pack Dimension: 116 x 116 x 172mm
• 24V Battery Pack Dimension: 232 x 116 x 172mm

• Battery Weight: ≈ 0.65kg

• Internal Resistance: < 2mΩ

• Cycle Life: >4000 times (80% DOD)

• Combination: 4S, 8S, 12S, 16S (custom configurations supported)

• Input Charging Voltage: 3.65V per cell

• Input Charging Current: Standard 20A, Fast 40A

• Continuous Discharge Current: 100A (5C)

• Max Discharge Current: 300A (10C for 3 seconds)

• Discharge Cut-off Voltage: 2.5V per cell

• Charging Temperature: 0°C ~ 45°C

• Discharging Temperature: -20°C ~ 60°C

• Storage Temperature: -20°C ~ 45°C

Applications:

• Electric Vehicles (EV), Electric Bicycles, E-Scooters, E-Tricycles

• Golf Carts, Trolleys, and Mobility Devices

• Solar Power Systems, Energy Storage Banks, Inverters

• Medical Equipment and Industrial Tools

• Power Tools, RC Toys, LED Lighting Systems

• Backup Power Supply, Household Appliances, Emergency Devices

• Passenger and commercial PHEVs and BEVs
