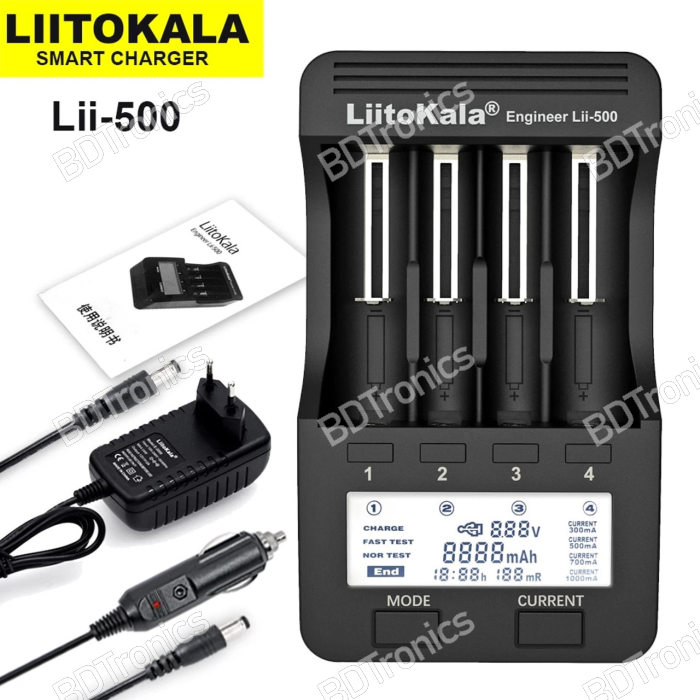

The LiitoKala Lii-500 Smart Battery Charger is a professional-grade multi-functional charger and capacity tester designed for Li-ion, LiPo, Ni-MH, and NiCd rechargeable batteries. It supports multiple cell sizes such as 18650, 26650, 14500, 21700, AA, AAA, and more, making it ideal for everyday users, hobbyists, and professionals needing accurate charging and testing.

With four independent charging slots, each controlled separately, the Lii-500 allows you to charge, discharge, test, and analyze battery capacity simultaneously. It features adjustable charging current modes (500mA, 700mA, 1000mA, and 2000mA for 2 slots) and dual discharging modes (250mA and 500mA), providing flexibility for different battery types and capacities.

Its clear LCD screen displays real-time charging data including voltage (V), current (mA), time (h), and capacity (mAh), ensuring complete visibility and control over every charging cycle. The built-in intelligent protection system safeguards against overcharging, over-discharging, short circuits, and reverse polarity. It also includes a USB output function (5V/1000mA) that allows the charger to work as a power bank when connected to AC power, offering added convenience.

Note: This is COMBO package, contains both Charger and the Original Power adapter. To buy only the charger Click Here.

Features:

• Compatible with multiple battery types: Li-ion, LiPo, NiMH, NiCd.

• Supports common sizes: 26650, 21700, 18650, 18350, 14500, AA, AAA, and more.

• Four independent charging channels with simultaneous mode control.

• Adjustable charging current: 500mA, 700mA, 1000mA (x4), and 2000mA (x2).

• Dual discharge current modes: 250mA and 500mA.

• Large LCD screen displaying voltage, current, time, and capacity.

• Three working modes: CHARGE, DISCHARGE, TEST (work simultaneously or separately).

• NOR TEST mode: Normal capacity detection—charges, discharges, and recharges to measure true capacity.

• FAST TEST mode: Rapid capacity detection—discharges first, then charges to determine capacity.

• Built-in temperature, over-voltage, and short-circuit protection.

• Intelligent 0V battery activation and reverse polarity detection.

• Power bank functionality with USB 5V/1000mA output (when plugged into AC).

• Independent microprocessor for each slot for accurate measurement and safe charging.

• Suitable for rechargeable flashlight batteries, power banks, RC batteries, and more.

Specifications:

• Input Voltage: DC 12V / 3.0A

• Output Voltage: DC 4.2V (Li-ion) / DC 1.48V (NiMH/NiCd)

• Charging Current: 500mA × 4 / 700mA × 4 / 1000mA × 4 / 2000mA × 2

• Discharging Current: 250mA / 500mA

• Supported Batteries: 26650, 21700, 18650, 18350, 20650, 14500, AA, AAA

• USB Output: 5V / 1000mA

• Protection: Overcharge, Over-discharge, Short Circuit, Temperature, Reverse Polarity

• Display: LCD showing Voltage, Current, Time, Capacity, and Mode

• Dimensions: 162mm (L) × 100mm (W) × 36mm (H)

• Weight: Approx. 230g

• Termination Method: Intelligent voltage monitoring and cut-off control

How to Use:

1. Connect the power adapter (12V/3A DC) to the charger.

2. Insert batteries into the slots, ensuring correct polarity.

3. Select the mode (CHARGE, DISCHARGE, or TEST) using the “MODE” button.

4. Adjust current settings using the “CURRENT” button (500mA, 700mA, 1000mA, or 2000mA).

5. The LCD will display voltage, charging time, and capacity for each slot.

6. For NOR TEST mode, the charger will charge, discharge, then recharge to measure real capacity.

7. For FAST TEST mode, it discharges first, then charges to calculate the quick test result.

8. When charging is complete, the screen shows “FULL.”

9. For USB output, connect a USB device to the output port (requires AC input).

Package Includes:

• 1 × LiitoKala Lii-500 Smart Charger

• 1 × User Manual
• 1 × DC Adapter 12V 2A (Available with Combo Package)
• 1 x Car charging port (Available with Combo Package)
