Specifications:

Technical Specifications

• Product Category: Operational Amplifiers - Op Amps
• Mounting Style: SMD/SMT

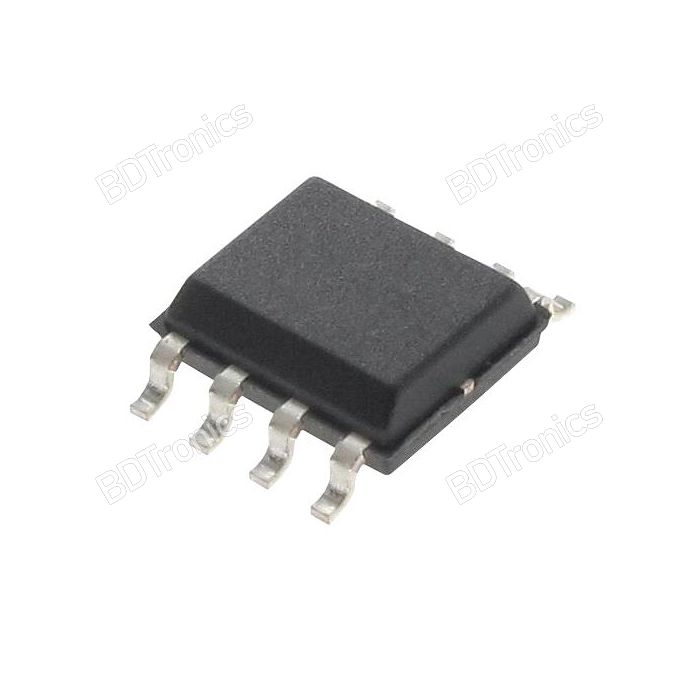

• Package / Case: SOIC-8
• Number of Channels: 1 Channel
• Supply Voltage - Max: 32 V, +/- 16 V
• GBP - Gain Bandwidth Product: 4 MHz
• Output Current per Channel: 60 mA
• SR - Slew Rate: 16 V/us
• Vos - Input Offset Voltage: 10 mV
• Supply Voltage - Min: 6 V, +/- 3 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Ib - Input Bias Current: 200 pA
• Operating Supply Current: 3.4 mA
• Shutdown: No Shutdown
• CMRR - Common Mode Rejection Ratio: 70 dB
• en - Input Voltage Noise Density: 15 nV/sqrt Hz
• Packaging: Reel
• Packaging: Cut Tape
• Amplifier Type: Wideband Amplifier
• Dual Supply Voltage: +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
• Height: 1.65 mm (Max)
• Length: 5 mm (Max)
• Maximum Dual Supply Voltage: +/- 16 V
• Minimum Dual Supply Voltage: +/- 3 V
• Operating Supply Voltage: 6 V to 32 V, +/- 3 V to +/- 16 V
• Product: Operational Amplifiers
• Product Type: Op Amps - Operational Amplifiers
• Subcategory: Amplifier ICs
• Supply Type: Dual
• Technology: BiFET
• Voltage Gain dB: 106.02 dB
• Width: 4 mm (Max)
• Unit Weight: 0.017870 oz
