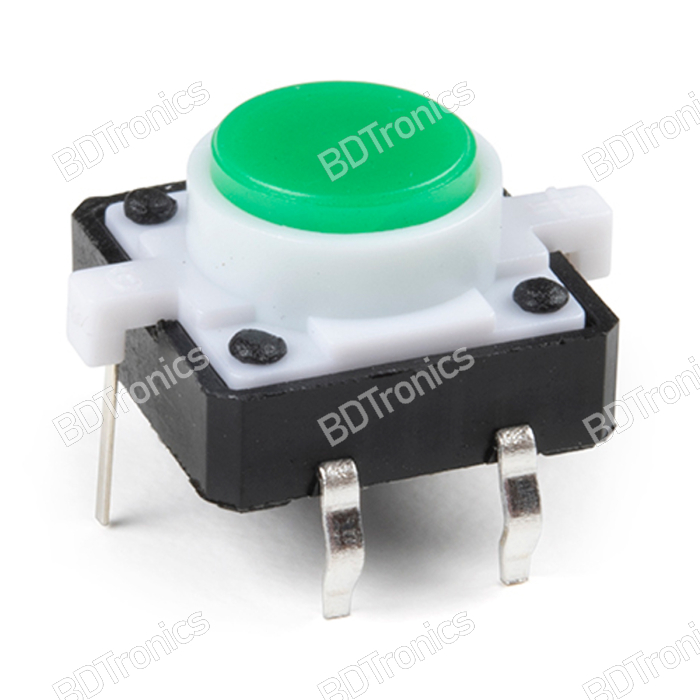

The LED Tactile Button in Green from BDTronics is an illuminated tactile switch designed for electronics enthusiasts and professionals alike. Featuring a built-in LED, it provides visual feedback and enhances user interface in various electronic projects.

Key Features:

• Tactile Feedback: Responsive tactile feel for positive feedback during operation.
• Built-in LED: Green LED integrated into the button for visual indication.
• Momentary Action: Activates when pressed and deactivates when released.
• Low Profile: Compact size for easy integration into electronic devices and projects.

Specifications:

• Button Type: Tactile Switch with LED
• LED Color: Green
• Operating Voltage: 12V DC
• Current Rating: 20mA
• Contact Resistance: <50mΩ
• Operating Temperature: -20°C to +70°C
• Dimensions: Standard 12mm diameter, suitable for panel mounting.

Applications:

• DIY Electronics Projects
• Prototyping
• Control Panels
• Instrumentation
• Consumer Electronics

Instructions for Use:

1. Mounting: Insert the tactile button into a panel cutout of appropriate size.
2. Wiring: Connect the button's terminals to your circuit. The terminals typically include two for the LED (anode and cathode) and two for the switch (normally open and common).
3. LED Operation: Apply 12V DC to the LED terminals to illuminate the green LED.
4. Button Operation: Press the button to activate the switch and illuminate the LED. Release to deactivate.
5. Integration: Ensure the button fits securely and aligns with your project's design and functionality requirements.

Caution:

• Observe polarity when connecting the LED terminals to avoid damaging the LED.
• Do not exceed the maximum current rating to prevent overheating or damage to the button and LED.

Package Includes:

• 1 x LED Tactile Button - Green

The LED Tactile Button in Green from BDTronics combines tactile feedback with visual indication, making it ideal for applications where user interaction and feedback are essential. It's a reliable choice for hobbyists and professionals looking to enhance their electronic projects with illuminated buttons.
