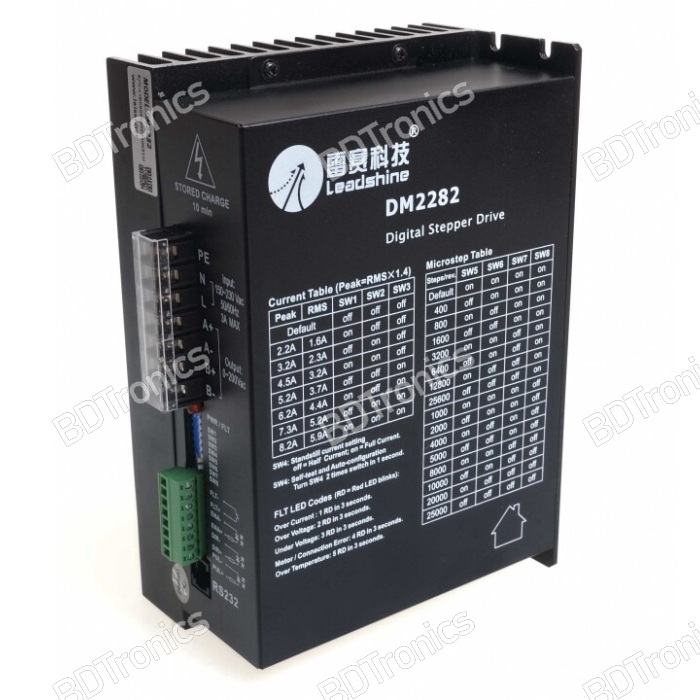

The Leadshine DM2282 is a premium, high-voltage digital stepper motor driver designed for demanding industrial automation applications. Compatible with 2-phase and 4-phase hybrid stepper motors, it delivers exceptional torque performance, ultra-smooth motion control, and excellent reliability.

Engineered to operate directly from AC mains voltage (230V), the DM2282 is ideal for high-performance CNC machines, laser cutters, engravers, XY tables, labeling systems, and other motion control systems where both high-speed and low-speed smoothness are essential.

With integrated anti-resonance, auto-tuning, and multi-stepping control, this driver ensures vibration-free operation, reduced motor heating, and optimum torque across the entire speed range.

Features:

• Original Leadshine stepper driver for industrial-grade applications

• Supports NEMA 34 to NEMA 51 stepper motors

• Operates directly on AC mains 150–230V (212–325VDC)

• Output current up to 8.2A RMS, DIP switch or software configurable

• Built-in motor auto-setup and multi-step smoothing technology

• Soft-start function prevents motor twitch during power-up

• Supports both PUL/DIR and CW/CCW signal types

• TTL-compatible optically isolated inputs

• Protection features: Overvoltage, undervoltage, overcurrent, and phase error

Applications:

• CNC Milling Machines

• Laser Engravers & Cutters

• High-Precision XY Positioning Tables

• Industrial Labeling Systems

• Robotics and Automation

Specifications:

Why Choose Leadshine DM2282?

If you're looking for a robust, high-performance, and digitally controlled stepper driver that can be powered directly from AC mains, the DM2282 is the ideal choice. It brings precision and power together with modern features like multi-step smoothing, auto-motor tuning, and advanced protection, making it the preferred solution for OEMs, engineers, and industrial automation specialists.
