LCR-TC1 1.8" Multi-functional Transistor Mosfet Diode Component Tester LCR Meter IR Decoder

Multifunctional tester for NPN and PNP transistors, capacitors, resistors, diodes, triodes, N-channel and P-channel MOSFETs, IGBTs, JFETs, thyristors, batteries, etc. Also, it can measure capacitance, inductance and resistance. It can decode Infrared (IR) Remote singal and measure zener diode voltage.

This device can perform self-calibration with a simple method. One-key operation, automatic detection and shutdown, you can also press the multi-function button to turn off the detector. Place the pins of the components in the corresponding area, turn the small handle, the detector will automatically detect, and the final result will be clearly displayed on the backlit TFT screen.

Technial Specifications:

• Color: White
• Size: 69*91*28mm/ 2.71x3.58x1.10 inch
• Display: 3.5 inch TFT Screen, Color Screen
• Diode Range: less than 4.5V
• Transistor Detection: 0.01-4.5V
• Zener Diode Detection: 0.01-30V
• Triac Range: IGT less than 6mA
• Capacitance: 25pF-100mF
• Resistor: 0.01-50MΩ
• Inductance: 0.01mH-20H
• Power Vol tage: 3.7V
• Power: Built-in Rechargeable Lithium Battery
• Display: 1.8 inch TFT screen
• Battery: 0.1-4.5V

• Automatically detect whether the device is faulty
• Zener diode voltage detection (0.01-30V)
• Self test with automatic calibration.
• Support Hitachi IR coding.
• IR waveform display.
• Infrared receiving instruction.
• Measurement results using TFT graphic display.
• One key operation.
• Auto power off (timeout settable).
• Built-in high capacity rechargeable Li-ion battery.
• Li-ion Battery voltage detection.
• Used to test NPN and PNP transistors, capacitors, resistors, diodes, transistors, N-channel and P-channel MOSFETs, IGBTs, JFETs, triacs and batteries

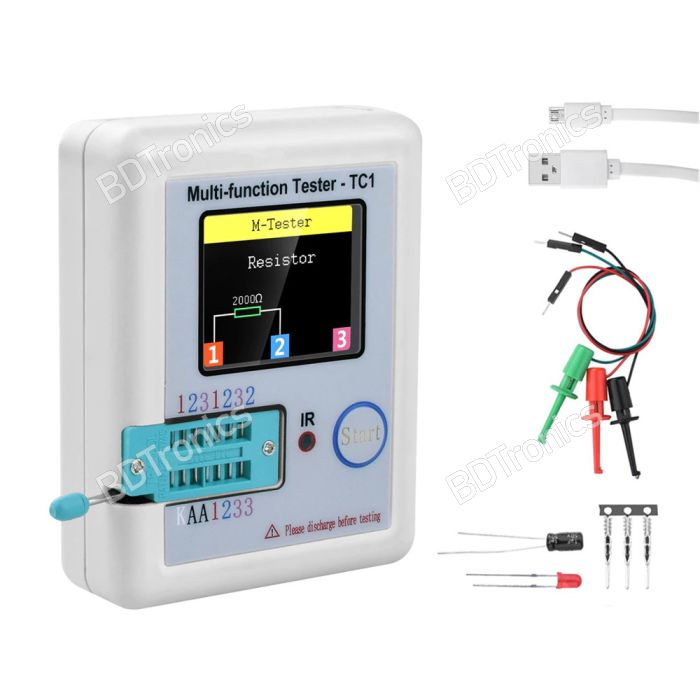

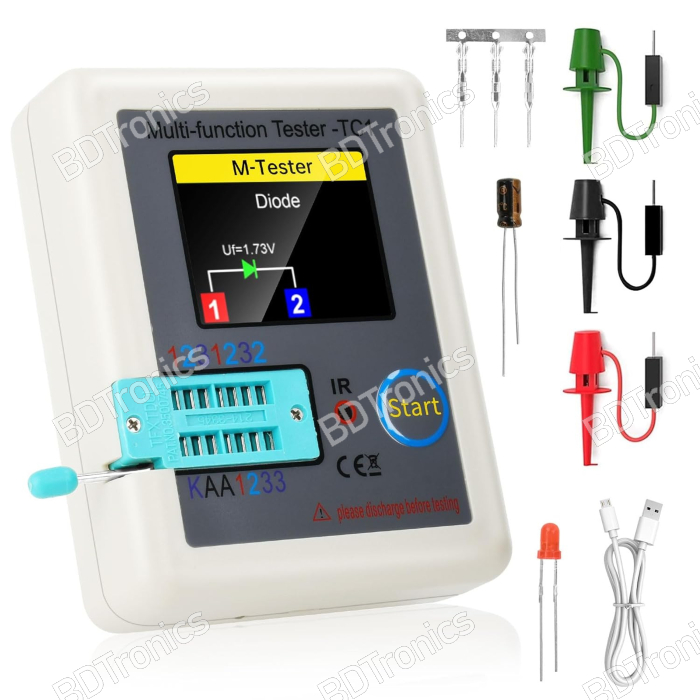

Package Included:

• 1 x Multifunctional TFT Transistor Tester
• 1 x Electronic components set
• 1 x Cable
• 3 x Test hook
