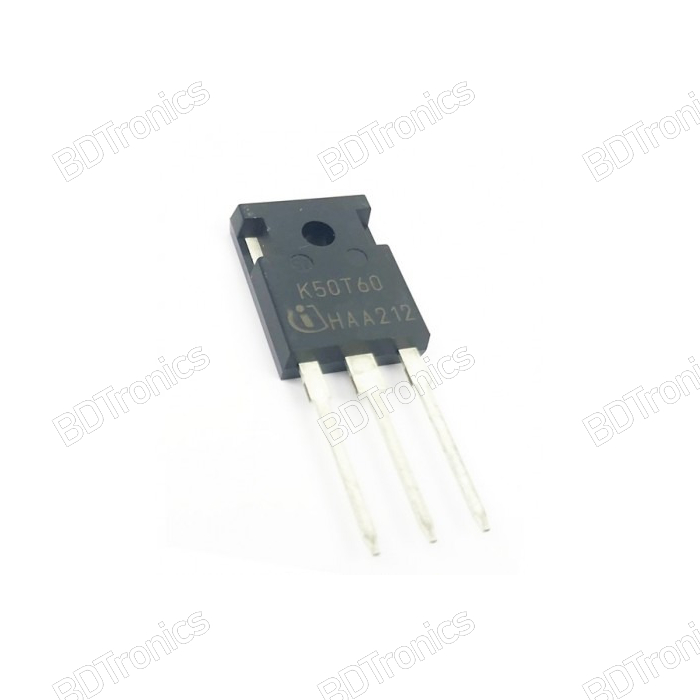

50T60 (Malaysia Original) 600V 80A N-Channel IGBT TO-247
Order before 12.00PM
The K50T60 from Infineon’s TRENCHSTOP™ Series is a high-efficiency, low-loss IGBT (Insulated Gate Bipolar Transistor) designed for demanding power switching applications. Utilizing advanced TRENCHSTOP™ and Fieldstop technology, it delivers superior performance in energy conversion systems including frequency converters and uninterruptible power supplies (UPS).
This 600V, 50A IGBT features a very low V<sub>CE(sat)</sub> of 1.5V (typ.), ensuring reduced conduction losses and improved thermal performance. Paired with a soft, fast-recovery Emitter Controlled High-Efficiency (HE) diode, it supports high-speed switching with low EMI and minimal switching losses. With a maximum junction temperature of 175°C and a short-circuit withstand time of 5µs, the K50T60 is ideal for high-reliability industrial applications.
Features:
-
Low VCE(sat) of 1.5V (typ.) for reduced conduction losses
-
High-speed switching with low gate charge and minimal EMI
-
Short-circuit rated with 5µs withstand time
-
High junction temperature operation up to 175°C
-
Integrated soft, fast-recovery Emitter Controlled HE diode
-
Positive temperature coefficient simplifies parallel operation
-
JEDEC-qualified and RoHS compliant
-
Pb-free lead plating for environmentally friendly manufacturing
-
Ideal for use in:
-
Frequency converters
-
Uninterruptible power supplies (UPS)
-
Industrial inverters
-
Applications:
-
Industrial Motor Drives
-
Power Inverters
-
UPS Systems
-
Welding Equipment
-
Renewable Energy Systems
Specifications:
| Parameter | Value | Unit |
|---|---|---|
| Collector-Emitter Voltage (V<sub>CE</sub>) | 600 | V |
| DC Collector Current (I<sub>C</sub>) @25°C | 80 | A |
| DC Collector Current (I<sub>C</sub>) @100°C | 50 | A |
| V<sub>CE(sat)</sub> @T<sub>j</sub>=25°C | 1.5 | V (typical) |
| Pulsed Collector Current | 150 | A |
| Short-Circuit Withstand Time | 5 | µs |
| Gate-Emitter Voltage (V<sub>GE</sub>) | ±20 | V |
| Power Dissipation @25°C | 333 | W |
| Operating Junction Temperature | -40 to +175 | °C |
| Storage Temperature | -55 to +150 | °C |
| Soldering Temperature (10s, 1.6mm) | 260 | °C |
