JST XH 2.54mm Pitch Male PCB Connector is a standard through-hole board connector used for reliable wire-to-board connections in electronics, robotics, 3D printers, drones, and embedded systems. This connector is designed to mate perfectly with JST XH female housings and cables, ensuring stable electrical contact and secure mechanical locking. Available from BDTronics, a trusted electronics components seller in Bangladesh, this connector is widely used in both DIY projects and commercial PCB designs.

The JST XH male PCB header supports clean PCB layout, consistent pin spacing, and long-term durability. It is commonly used for power input, signal transmission, sensor connections, balance ports, and control interfaces on development boards and custom PCBs.

Features:

• JST XH series male PCB connector

• Standard 2.54mm pitch for wide compatibility

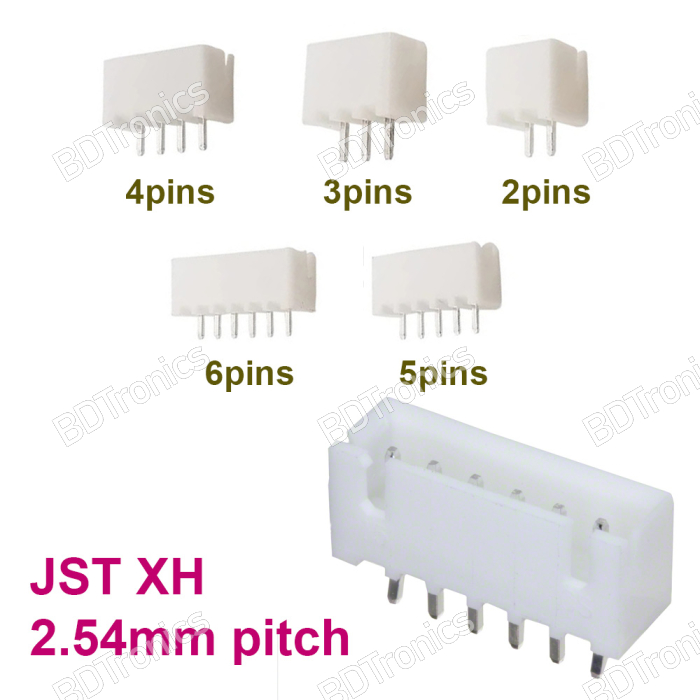

• Available pin options: 2P, 3P, 4P, 5P, 6P

• Through-hole mounting for strong PCB fixation

• Secure locking interface with JST XH female connector

• Stable electrical contact with low resistance

• Compact footprint suitable for dense PCB layouts

• Reliable performance in vibration-prone environments

Applications and Use Cases:

• Arduino, ESP32, STM32, Raspberry Pi expansion boards

• 3D printer control boards, endstops, fans, thermistors

• Drone flight controllers, power modules, sensors

• Robotics motor drivers and sensor interfaces

• Battery balance and low-current power connections

• Custom PCB design and electronics prototyping

• Industrial control and embedded electronics

How to Use:

• Insert the JST XH male connector pins into PCB through-holes

• Ensure correct orientation before soldering

• Solder each pin securely to the PCB pad

• Allow solder joints to cool and inspect for shorts

• Connect matching JST XH female cable or housing

Specifications:

• Connector Type: JST XH Male PCB Header

• Pitch: 2.54mm

• Pin Options: 2P / 3P / 4P / 5P / 6P

• Mounting Type: Through-hole

• Orientation: Vertical

• Rated Voltage: Up to 250V

• Rated Current: Up to 3A

• Contact Material: Phosphor bronze

• Plating: Tin plated

• Insulator Material: Nylon

• Operating Temperature: -25°C to +85°C
