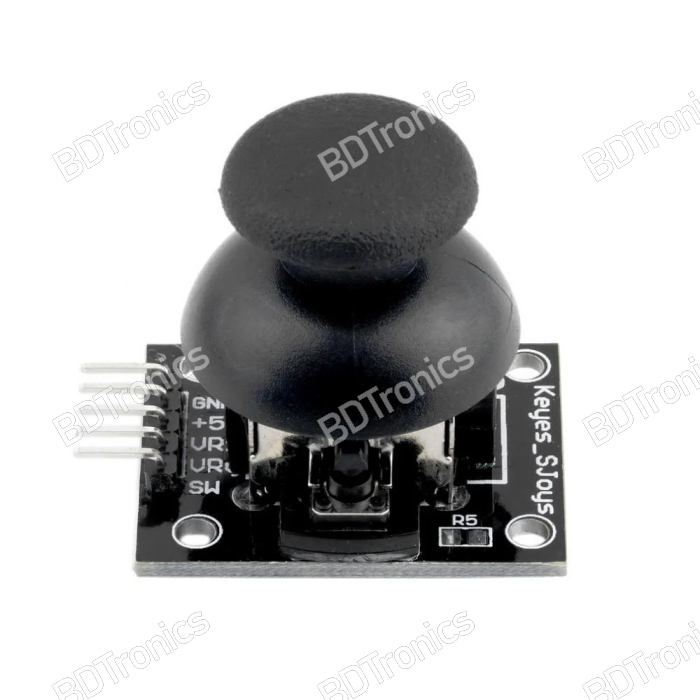

The Joystick 5Pin Breakout Module for Arduino is a compact and versatile analog joystick module, ideal for robotics, gaming controllers, and electronic projects. Designed similarly to PS2 (PlayStation 2) analog joysticks, it offers precise directional control using two potentiometers for X and Y axes, along with a selectable push-button feature. This module operates on a 5V supply and provides accurate analog voltage readings, making it perfect for Arduino, microcontroller, and DIY electronics projects in Bangladesh.

Features:

• Two-axis analog joystick for precise directional control

• Built-in push-button for select functionality when pressing down the joystick

• Uses two potentiometers (~10kΩ each) for X and Y axis detection

• Operates on a 5V power supply, compatible with Arduino and other microcontrollers

• Analog readout voltage: ~2.5V at center, ranges from 0V to 5V with movement

• Compact and lightweight design, ideal for integration into custom controllers or robotics

• Durable construction for long-term use in electronic projects

• Easy to connect using standard 5-pin interface for quick prototyping

• Suitable for gaming projects, robotic arms, motor control, and interactive devices

How to Use:

• Connect the VCC pin to 5V power and GND to ground on the Arduino

• Connect the VRx pin to an analog input for X-axis reading

• Connect the VRy pin to an analog input for Y-axis reading

• Connect the SW pin to a digital input pin to read the push-button state

• Read analog values using Arduino’s analogRead() function to detect joystick position

• Press down the joystick to trigger the button functionality for selection or control

• Integrate into custom control panels, robot controllers, or interactive projects

Product Instructions

• Ensure correct wiring to avoid damage: VCC to 5V, GND to ground

• Avoid applying voltage above 5V to prevent potentiometer damage

• Center the joystick to get ~2.5V output as neutral position

• Handle the module carefully to prevent bending or damaging the pins

• Ideal for repetitive testing and prototyping in educational and DIY electronics projects

Specifications:

• Interface: 5-pin breakout module

• Potentiometer Resistance: ~10kΩ each

• Power Supply: 5V

• Analog Output Voltage: 0V – 5V, ~2.5V at center

• Button: Select function via joystick press

• Compatibility: Arduino, microcontrollers, DIY electronics projects

• Module Size: Compact, lightweight for easy integration
