The ISL29125 is a low-power, digital RGB color light sensor with an I2C interface, perfect for Arduino and ESP8266 projects. This advanced sensor can detect red, green, and blue light components independently, making it ideal for color detection, ambient light sensing, and color matching applications.

In this comprehensive tutorial, you'll learn how to interface the ISL29125 sensor with an ESP8266 microcontroller, understand its technical specifications, and build practical projects using this versatile color sensor.

What is the ISL29125 RGB Sensor?

The ISL29125 is a digital RGB color sensor manufactured by Renesas Electronics (formerly Intersil). It features three separate photodiodes with red, green, and blue filters, allowing it to measure each color component with 16-bit resolution.

Technical Specifications:

• 16-bit ADC resolution for each color channel
• I2C digital interface (up to 400 kHz)
• Operating voltage: 2.25V to 3.63V
• Programmable interrupt function
• Four selectable light intensity ranges
• IR filtering capability
• Active current consumption: 56 µA (typical)
• Standby current: 0.5 µA

Measurement Ranges:

• 375 lux
• 10,000 lux (10k)
• 16,000 lux (16k)
• 64,000 lux (64k)

Hardware Requirements

To follow this tutorial, you'll need:

• ESP8266 development board (NodeMCU, Wemos D1 Mini, or similar)

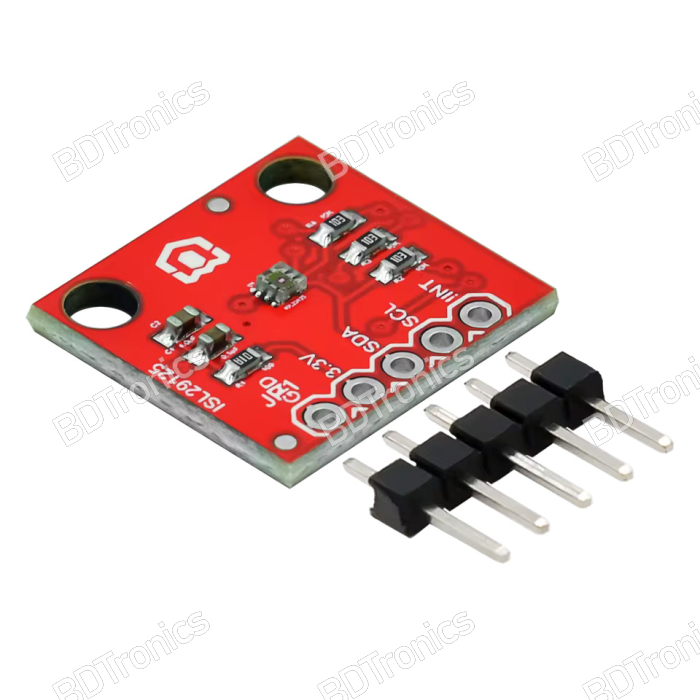

• ISL29125 RGB color sensor breakout board
• Jumper wires
• Breadboard (optional)
• USB cable for programming
• Arduino IDE installed on your computer

Circuit Diagram and Wiring

The ISL29125 uses I2C communication, requiring only four connections to the ESP8266.

Pin Connections

Important Notes:

• Always use 3.3V, not 5V, as the ISL29125 is not 5V tolerant
• Most ISL29125 breakout boards include pull-up resistors for I2C
• Keep wires short to minimize noise and interference

Arduino Code Implementation

Basic RGB Reading Code

Here's a complete Arduino sketch to read RGB values from the ISL29125:

#include <Wire.h>

// ISL29125 I2C Address
#define ISL_I2C_ADDR 0x44

// Register Addresses
#define DEVICE_ID    0x00
#define CONFIG_1     0x01
#define CONFIG_2     0x02
#define CONFIG_3     0x03
#define STATUS       0x08
#define GREEN_L      0x09
#define GREEN_H      0x0A
#define RED_L        0x0B
#define RED_H        0x0C
#define BLUE_L       0x0D
#define BLUE_H       0x0E

// ESP8266 I2C Pins
#define SDA_PIN D2
#define SCL_PIN D1

void setup() {
  Serial.begin(115200);
  delay(1000);

  Wire.begin(SDA_PIN, SCL_PIN);

  Serial.println("ISL29125 RGB Sensor Initialized");

  // Verify device ID
  uint8_t id = readRegister(DEVICE_ID);
  if (id != 0x7D) {
    Serial.println("ERROR: Sensor not detected!");
    while(1);
  }

  // Configure sensor: RGB mode, 375 lux range
  writeRegister(CONFIG_1, 0x05);
  writeRegister(CONFIG_2, 0x00);
  writeRegister(CONFIG_3, 0x00);

  Serial.println("Sensor ready!");
}

void loop() {
  uint16_t red = readColor(RED_L, RED_H);
  uint16_t green = readColor(GREEN_L, GREEN_H);
  uint16_t blue = readColor(BLUE_L, BLUE_H);

  Serial.print("R: ");
  Serial.print(red);
  Serial.print(" | G: ");
  Serial.print(green);
  Serial.print(" | B: ");
  Serial.println(blue);

  delay(500);
}

uint16_t readColor(uint8_t lowReg, uint8_t highReg) {
  uint8_t low = readRegister(lowReg);
  uint8_t high = readRegister(highReg);
  return (high << 8) | low;
}

void writeRegister(uint8_t reg, uint8_t value) {
  Wire.beginTransmission(ISL_I2C_ADDR);
  Wire.write(reg);
  Wire.write(value);
  Wire.endTransmission();
}

uint8_t readRegister(uint8_t reg) {
  Wire.beginTransmission(ISL_I2C_ADDR);
  Wire.write(reg);
  Wire.endTransmission();

  Wire.requestFrom(ISL_I2C_ADDR, 1);
  return Wire.available() ? Wire.read() : 0;
}

Understanding ISL29125 Configuration

CONFIG_1 Register

This register controls the operating mode and sensing range:

Bit Configuration:

• Bits 0-2: Operating mode

  • 000: Power down
  • 001: Green only
  • 010: Red only
  • 011: Blue only
  • 100: Standby
  • 101: RGB (most common)
  • 110: RG
  • 111: GB

• Bits 3-4: Light intensity range

  • 00: 375 lux
  • 01: 10,000 lux
  • 10: 16,000 lux
  • 11: 64,000 lux

Example: 0x05 = RGB mode with 375 lux range

CONFIG_2 Register

Controls IR filtering and active current:

• Bit 7: IR compensation (0 = disabled, 1 = enabled)
• Bits 0-5: IR filtering range

CONFIG_3 Register

Manages interrupt configuration and thresholds for automated triggering.

Practical Applications

1. Color Detection and Sorting

Use the ISL29125 to identify and sort objects by color in industrial automation or hobbyist projects.

String detectColor(uint16_t r, uint16_t g, uint16_t b) {
  if (r > g && r > b) return "Red";
  if (g > r && g > b) return "Green";
  if (b > r && b > g) return "Blue";
  if (r > 30000 && g > 30000 && b > 30000) return "White";
  if (r < 5000 && g < 5000 && b < 5000) return "Black";
  return "Unknown";
}

2. Ambient Light Monitoring

Track light conditions for smart home automation or plant growth monitoring.

3. Color Matching Systems

Create paint matching tools or quality control systems for manufacturing.

4. Proximity Detection

Detect objects by measuring reflected light changes.

Troubleshooting Common Issues

Sensor Not Detected

Problem: Device ID returns 0x00 or incorrect value

Solutions:

• Check wiring connections
• Verify 3.3V power supply
• Confirm I2C address (should be 0x44)
• Test with I2C scanner sketch
• Check for damaged sensor

Inconsistent Readings

Problem: RGB values fluctuate wildly

Solutions:

• Shield sensor from ambient light variations
• Use appropriate intensity range for your lighting
• Add delay between readings
• Enable IR filtering if needed
• Ensure stable power supply

Low or Zero Values

Problem: All RGB values read near zero

Solutions:

• Increase light intensity range setting
• Ensure sensor is properly illuminated
• Check if sensor is in correct mode (RGB, not standby)
• Verify power supply voltage

Advanced Features

Using Interrupts

The ISL29125 can trigger interrupts when color values exceed thresholds:

void setupInterrupt() {
  // Configure threshold registers
  writeRegister(0x04, 0x00); // Low threshold LSB
  writeRegister(0x05, 0x10); // Low threshold MSB
  writeRegister(0x06, 0x00); // High threshold LSB
  writeRegister(0x07, 0xFF); // High threshold MSB

  // Enable interrupt in CONFIG_3
  writeRegister(CONFIG_3, 0x01);
}

IR Filtering

For outdoor or sunlight applications, enable IR compensation:

// Enable IR filtering
writeRegister(CONFIG_2, 0x80);

Calibration and Accuracy

To improve accuracy:

1. White Balance Calibration: Take readings of a white surface under your target lighting
2. Dark Calibration: Record values in complete darkness
3. Normalize Values: Scale readings between dark and white reference points

uint16_t calibrateReading(uint16_t raw, uint16_t dark, uint16_t white) {
  if (white <= dark) return 0;
  if (raw <= dark) return 0;
  if (raw >= white) return 65535;
  return map(raw, dark, white, 0, 65535);
}

Performance Optimization

Power Saving

Put sensor in standby mode when not in use:

void enterStandby() {
  writeRegister(CONFIG_1, 0x04); // Standby mode
}

void wakeUp() {
  writeRegister(CONFIG_1, 0x05); // RGB mode
  delay(100); // Allow sensor to stabilize
}

Faster Reading

Increase I2C clock speed for quicker data transfer:

Wire.setClock(400000); // 400 kHz Fast Mode

Comparison with Other Color Sensors

ISL29125 vs TCS34725

• ISL29125: Lower power consumption, simpler interface, adequate for most projects
• TCS34725: Higher accuracy, better in low light, includes clear channel

ISL29125 vs APDS-9960

• ISL29125: Dedicated RGB sensing, higher resolution
• APDS-9960: Includes gesture detection and proximity, lower RGB resolution

The ISL29125 RGB color sensor is an excellent choice for ESP8266-based color detection projects. Its low power consumption, high resolution, and simple I2C interface make it perfect for battery-powered IoT applications, robotics, and automation systems.

With this guide, you now have the knowledge to implement the ISL29125 in your own projects, from basic color detection to advanced calibrated color matching systems.

Start experimenting with your ISL29125 sensor today and bring color detection capabilities to your next ESP8266 project!
