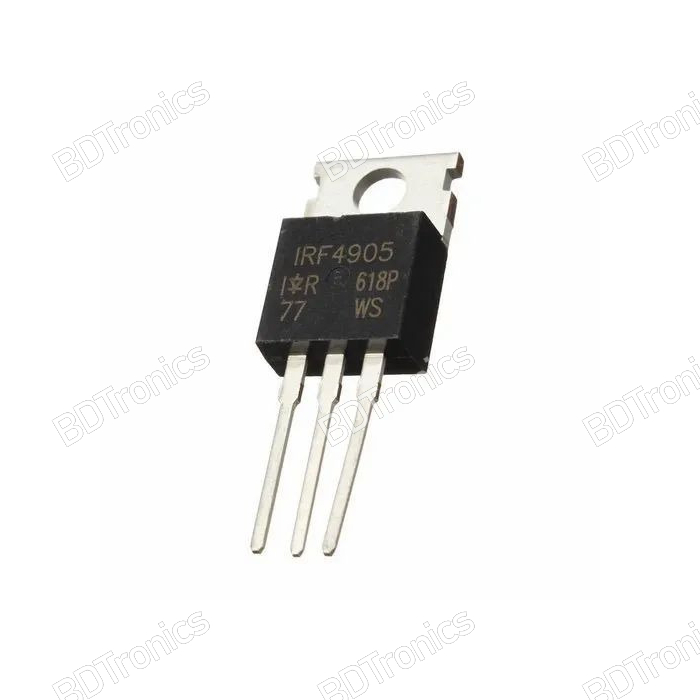

IRF4905PBF (Taiwan Original) 55V 74A P-Channel Hexfet Power Mosfet TO-220
Order before 12.00PM
The IRF4905PbF is a high-performance P-Channel HEXFET® Power MOSFET from International Rectifier, optimized using advanced fifth-generation processing for ultra-low on-resistance, high-speed switching, and rugged avalanche characteristics. Packaged in the industry-standard TO-220AB, it’s ideal for high-current, low-voltage switching applications in DC-DC converters, motor drives, power management, and automotive systems.
Features:
-
P-Channel MOSFET
-
Drain-to-Source Voltage (V<sub>DSS</sub>): –55V
-
Continuous Drain Current (I<sub>D</sub>):
-
–74A @ T<sub>C</sub> = 25°C
-
–52A @ T<sub>C</sub> = 100°C
-
-
Pulsed Drain Current (I<sub>DM</sub>): –260A
-
R<sub>DS(on)</sub>: 0.02Ω max @ V<sub>GS</sub> = –10V
-
Gate-to-Source Voltage (V<sub>GS</sub>): ±20V
-
Single Pulse Avalanche Energy (E<sub>AS</sub>): 930 mJ
-
Avalanche Current (I<sub>AR</sub>): –38A
-
Repetitive Avalanche Energy (E<sub>AR</sub>): 20 mJ
-
Peak Diode Recovery dv/dt: –5.0 V/ns
-
Power Dissipation (P<sub>D</sub>): 200W @ T<sub>C</sub> = 25°C
-
Operating Junction Temp (T<sub>J</sub>): –55°C to +175°C
-
Mounting Torque: 10 lbf·in (1.1 N·m)
