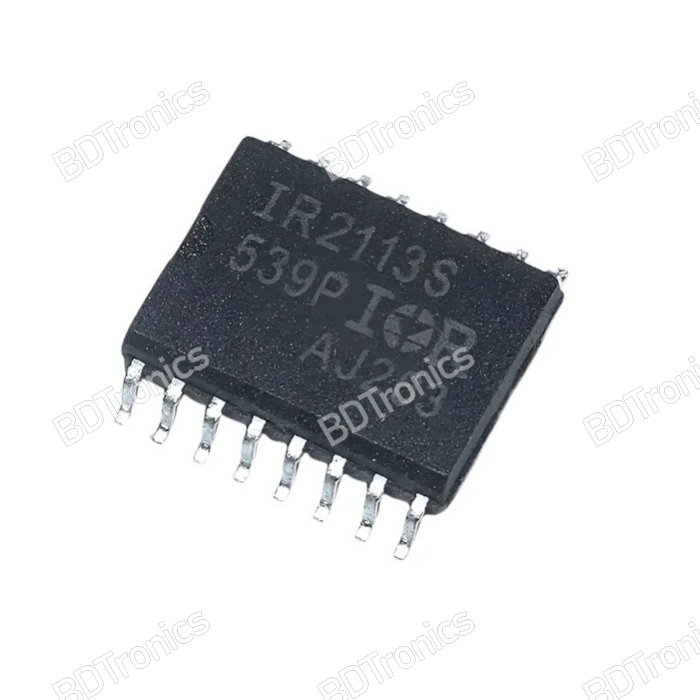

IR2113S IGBT Mosfet Gate Driver SMD SOIC
This product is out of stock. Are you interested about this product?
Order before 12.00PM
The IR2113 is a high-voltage, high-speed half-bridge gate driver IC designed to drive both high-side and low-side N-channel power MOSFETs or IGBTs. This robust and efficient gate driver operates with functional level-shift isolation and is ideally suited for high-performance switching applications including DC-DC converters, motor drives, UPS systems, and inverters.
With dual independent channels and high current output capability (2.5A source/sink), the IR2113 provides reliable switching and protection features such as undervoltage lockout (UVLO), matched propagation delays, and noise immunity. Its fast switching performance makes it a top choice for engineers requiring precise control and efficient power delivery in compact designs.
Features:
-
High-voltage half-bridge driver: Up to 600V
-
Dual-channel configuration: High-side and low-side drivers
-
High output current: 2.5A source / 2.5A sink
-
Fast propagation delays: 120 ns (turn-on) / 94 ns (turn-off)
-
Wide VCC range: 10V to 20V logic supply
-
Functional isolation via junction isolation (JI)
-
Built-in undervoltage lockout (UVLO) on both high-side (VBS) and low-side (VCC)
-
3.3V, 5V, and 15V logic input compatible
-
Optimized for PWM control, inverter systems, and motor drives
Applications:
-
Brushless DC motor (BLDC) and induction motor control
-
Switched-mode power supplies (SMPS)
-
Class D audio amplifiers
-
High-efficiency solar inverters
-
Industrial and consumer-grade UPS systems
Specifications:
| Parameter | Value |
|---|---|
| Number of Channels | 2 |
| Driver Configuration | High-side and low-side |
| Voltage Rating (Max) | 600V |
| VCC Supply Voltage | 10V – 20V |
| Output Source Current | 2.5A |
| Output Sink Current | 2.5A |
| Propagation Delay (Turn-On) | 120 ns |
| Propagation Delay (Turn-Off) | 94 ns |
| VBS UVLO (Off Threshold) | 8.2V |
| VCC UVLO (On Threshold) | 8.5V |
| VCC UVLO (Off Threshold) | 8.2V |
| Input Logic Compatibility | 3.3V / 5V / 15V |
| Isolation Type | Functional (JI - Junction Isolated) |
| Qualification | Industrial Grade |
| Packaging Options | SOIC-14, PDIP-14 |
