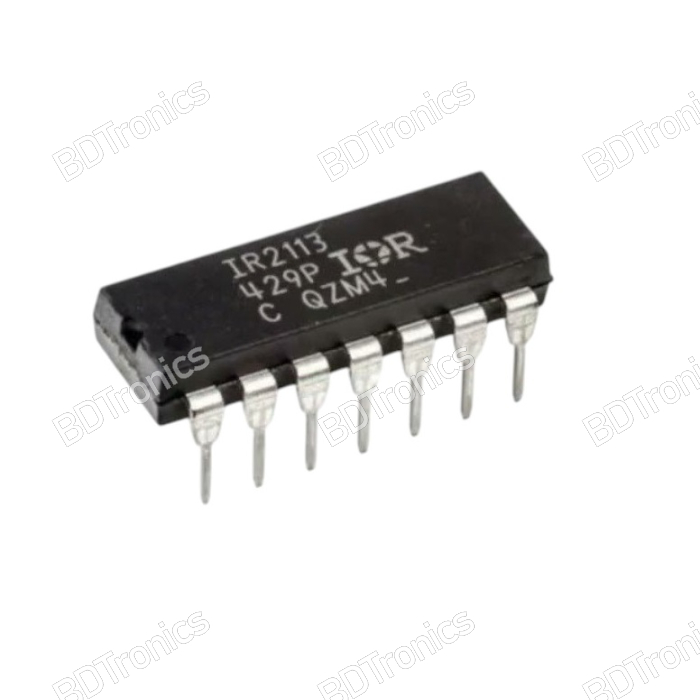

The IR2113(S)PBF is a high-voltage, high-speed MOSFET and IGBT driver IC designed for efficient and reliable gate driving in half-bridge and full-bridge power conversion applications. Manufactured by Infineon, this driver IC integrates rugged HVIC (High Voltage Integrated Circuit) technology and latch-immune CMOS architecture, ensuring safe and stable performance in demanding power electronics systems.

With a floating channel that operates up to +600V, a wide logic supply range (3.3V–20V), and a gate drive supply range (10V–20V), the IR2113(S)PBF is highly versatile for driving N-channel MOSFETs or IGBTs in both low-side and high-side configurations. Its robust design includes undervoltage lockout (UVLO), matched propagation delay, Schmitt-triggered inputs, and cycle-by-cycle edge-triggered shutdown logic, making it a top choice for designers working on motor drives, inverters, UPS, SMPS, and industrial automation systems in Bangladesh.

Features:

• Floating channel for bootstrap operation, fully operational up to +600V

• Tolerant to negative transient voltage, dV/dt immune

• Gate drive supply range: 10V to 20V

• Separate logic supply: 3.3V to 20V (logic compatible down to 3.3V)

• Independent high-side and low-side outputs

• High peak output current: ±2A / 2A

• Propagation delays matched for high-frequency switching

• Cycle-by-cycle edge-triggered shutdown logic

• CMOS Schmitt-triggered inputs with pull-down resistors

• Undervoltage lockout for both channels

• Outputs in phase with inputs

• Ruggedized monolithic HVIC construction for reliability

Specifications:

• Model: IR2113(S)PBF

• Manufacturer: Infineon Technologies

• Type: High & Low Side MOSFET/IGBT Gate Driver

• Maximum Voffset: 600V

• Gate Drive Supply Voltage (Vcc): 10V to 20V

• Logic Supply Voltage (Vss): 3.3V to 20V

• Logic Compatibility: TTL and CMOS (down to 3.3V)

• Peak Output Current: ±2A

• Typical Switching Times:

  • Turn-on (ton): 120ns

  • Turn-off (toff): 94ns

• Delay Matching: ≤20ns

• Package: 14-Lead PDIP (through-hole), also available in SOIC package

• Operating Temperature: –40°C to +125°C

• Applications: Half-bridge and full-bridge drivers, motor drives, inverters, SMPS, UPS, industrial power control

Applications:

• High voltage half-bridge and full-bridge inverters

• DC-AC and DC-DC converters

• Motor drives (AC motors, BLDC, PMSM)

• Switched-mode power supplies (SMPS)

• Uninterruptible Power Supply (UPS) systems

• Solar inverters and renewable energy systems

• Industrial automation and robotics
