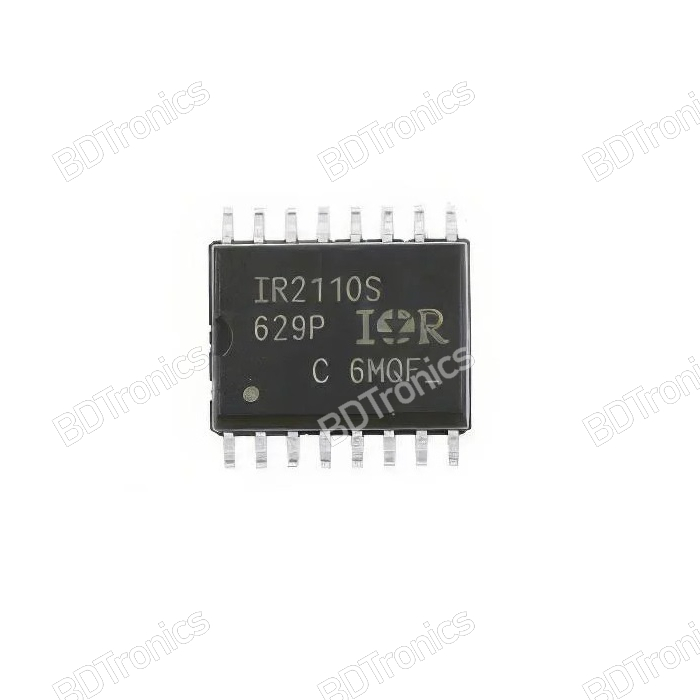

IR2110S IGBT Mosfet Gate Driver SMD SOIC
This product is out of stock. Are you interested about this product?
Order before 12.00PM
The IR2110S is a high-performance high-side and low-side gate driver IC designed to efficiently drive N-channel power MOSFETs and IGBTs in high-voltage switching applications. Built using proprietary high-voltage IC (HVIC) technology and latch-immune CMOS logic, the IR2110S enables reliable and isolated gate driving for half-bridge and full-bridge topologies.
This 16-lead SOIC surface-mount package is ideally suited for demanding DC-DC converters, inverters, motor drivers, and power management systems, operating up to 500V and delivering gate drive currents up to ±2A. With matched propagation delays, it is optimized for high-speed switching and PWM control systems.
Specifications:
| Feature | Specification |
|---|---|
| Function | High and Low Side Gate Driver for MOSFET/IGBT |
| Configuration | Dual-channel, independent high-side and low-side |
| Output Current (Source/Sink) | ±2A |
| High-side Floating Voltage (VOFFSET) | Up to 500V |
| Gate Drive Supply Voltage (VCC) | 10V to 20V |
| Logic Input Compatibility | TTL, CMOS, and 3.3V logic compatible |
| Logic Supply Voltage Range (VDD) | 3.3V to 20V |
| Propagation Delay (ton/toff) | 120ns (on) / 94ns (off) typical |
| Delay Matching | ≤10ns (IR2110) for precise timing |
| Input Features | Schmitt-triggered CMOS with internal pull-down resistors |
| Bootstrap Operation Support | Yes (Floating channel for high-side N-MOS/IGBT control) |
| Under-Voltage Lockout (UVLO) | For both high and low side channels |
| Output State | In-phase with input |
| Edge-Triggered Shutdown Logic | Yes |
| Transient Tolerance | High dV/dt immunity |
| Package Type | SOIC-16 (Surface Mount Device) |
| Operating Temperature Range | -40°C to +125°C |
| Manufacturer | Infineon Technologies |
| Part Number | IR2110S |
