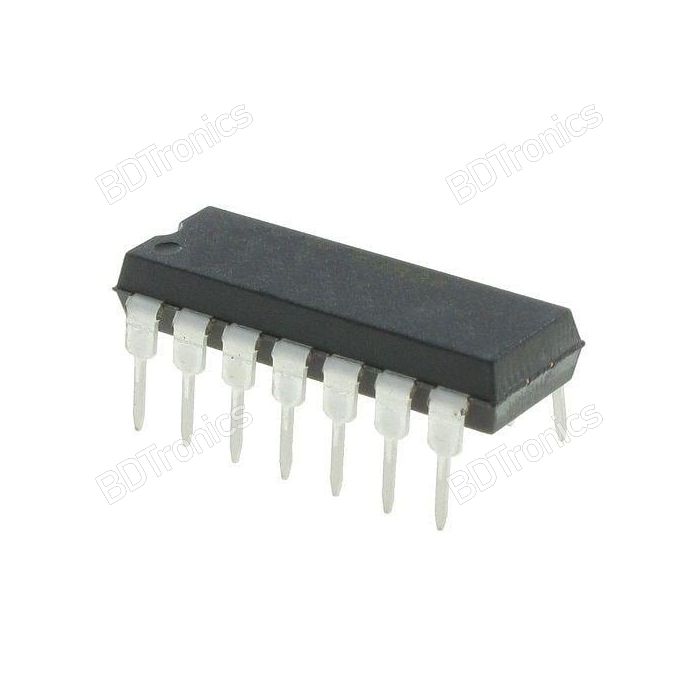

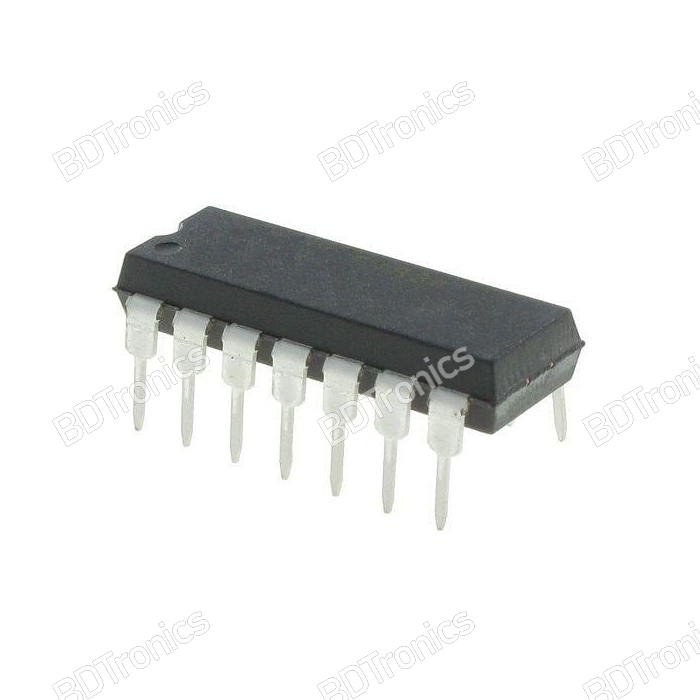

IR2110PBF Gate Drivers Hi&Lw Sd Drvr All HiVlt Pins 1 Sd PDIP 14

IR2110PBF Gate Drivers Hi&Lw Sd Drvr All HiVlt Pins 1 Sd

In stock

SKU PRD-00002551
Categories: ICs
Delivery Info
truck-fast
Inside Dhaka: 1-2 days
Express (Dhaka): 24 hours
Order before 12.00PM
Outside Dhaka: 2-3 days
hand-holding-dollar
Cash on delivery all over BD
Quality
award
100% authentic product
circle-check
Quality product guaranteed
Service
repeat
7 days easy return
credit-card
Safe & secure payment
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account

Product Details

Specifications:

      Technical Specifications

    • Product Category: Gate Drivers
    • Product: IGBT, MOSFET Gate Drivers
    • Type: High-Side, Low-Side
    • Mounting Style: Through Hole
    • Package / Case: PDIP-14
    • Number of Drivers: 2 Driver
    • Number of Outputs: 2 Output
    • Output Current: 2.5 A
    • Supply Voltage - Min: 10 V
    • Supply Voltage - Max: 20 V
    • Rise Time: 35 ns
    • Fall Time: 25 ns
    • Minimum Operating Temperature: - 40 C
    • Maximum Operating Temperature: + 125 C
    • Packaging: Tube
    • Features: Independent
    • Height: 5.33 mm
    • Length: 20.19 mm
    • Logic Type: CMOS, TTL
    • Maximum Turn-Off Delay Time: 94 ns
    • Maximum Turn-On Delay Time: 120 ns
    • Operating Supply Current: 340 uA
    • Pd - Power Dissipation: 1.6 W
    • Product Type: Gate Drivers
    • Propagation Delay - Max: 150 ns
    • Subcategory: PMIC - Power Management ICs
    • Technology: Si
    • Width: 7.11 mm
    • Part # Aliases: IR2110PBF SP001536788
    • Unit Weight: 0.057144 oz
