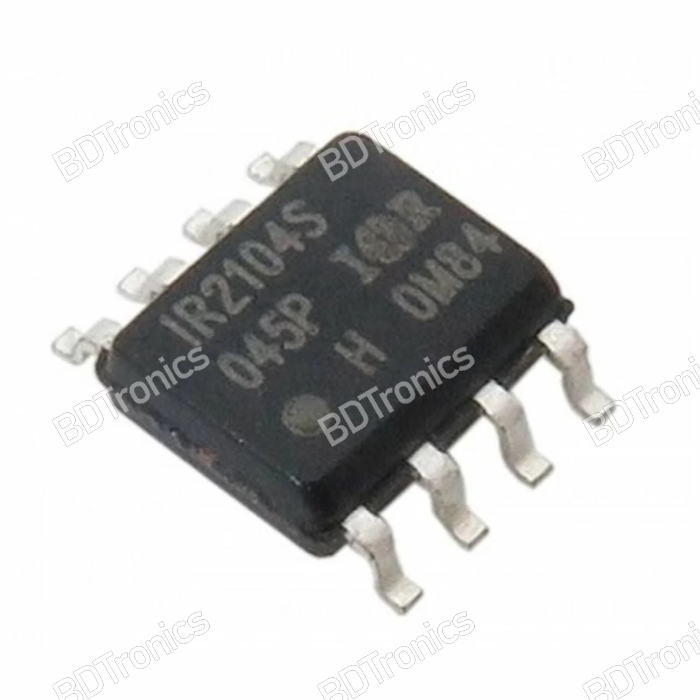

IR2104S Half Bridge IGBT Mosfet Gate Driver SMD SOIC
In stock
Order before 12.00PM
The IR2104(S) and IR2104(PbF) are high-speed, high-voltage half-bridge driver ICs designed to efficiently drive both high-side and low-side N-channel MOSFETs or IGBTs. With a floating channel fully operational up to +600V, these drivers are ideal for demanding power electronics applications including motor control, power supplies, DC-DC converters, and high-voltage inverters.
Features:
-
Floating Channel Capability: Operates up to +600V, suitable for high-side switching applications.
-
Wide Gate Drive Supply Range: 10V to 20V gate drive voltage ensures compatibility with various MOSFETs and IGBTs.
-
High Current Drive Capability: 130mA sourcing and 270mA sinking output current for robust MOSFET switching.
-
Logic Level Compatibility: Supports 3.3V, 5V, and 15V input logic—perfect for modern microcontrollers and digital logic systems.
-
Cross-Conduction Prevention: Integrated logic ensures safe switching by avoiding shoot-through.
-
Built-In Deadtime: Typical deadtime of 520ns enhances switching performance without external timing circuitry.
-
Matched Propagation Delay: Ensures synchronized switching for both high and low-side outputs.
-
Under-Voltage Lockout (UVLO): Protects the system by disabling outputs when supply voltage is below the safe threshold.
-
Shutdown Pin: External logic control to turn off both output channels simultaneously.
Specifications:
| Parameter | Value |
|---|---|
| Output Voltage (VOUT) | 10V – 20V |
| Maximum Offset Voltage (VOFFSET) | 600V max |
| Output Current (Source/Sink) | 130mA / 270mA |
| Turn-on/Turn-off Time (typ.) | 680ns / 150ns |
| Deadtime (typ.) | 520ns |
| Input Logic Voltage | 3.3V / 5V / 15V |
| Operating Temperature Range | -40°C to +125°C |
| Package | SOIC (8-pin) |
