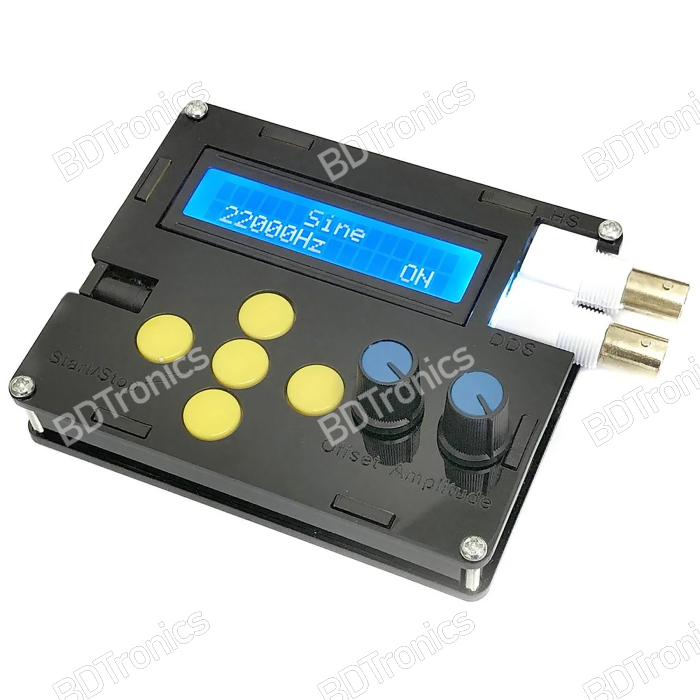

A compact Direct Digital Synthesis function generator offering sine, square, triangle, sawtooth and reverse sawtooth waveforms in the range 1Hz-65,534Hz. Intuitive push-button selection of all parameters.

In addition, the unit has a high frequency, adjustable output of 1MHz - 8MHz.

• Amplitude and dc offset controls.
• Signal output is via BNC connectors.

The unit is a cost-effective way of displaying a wide range of waveforms with a precise readout of the frequency.  The frequency may be incremented in steps of 1Hz, 10Hz, 100Hz, 1,000Hz or 10,000Hz, which allows the accurate setting of any frequency.

Features:

• DDS Frequency Range: 1Hz - 65534Hz
• DDS Frequency Step: 1Hz
• Frequency step adjustable to: 1,10,100,1000 or 10000 Hz
• High-Speed (HS) Frequency Output: 1MHz, 2MHz, 4MHz and 8MHz (discrete steps)
• DDS signals: sine wave, square wave, sawtooth, reverse sawtooth, triangle wave, the ECG wave and noise wave
• DDS signal amplitude and the offset amount can be adjusted separately by two potentiometers
• Offset: 0.5pp-5Vpp
• Amplitude levels: 0.5Vpp-14Vpp
• Output impedance: 20-200 ohms
• Operating voltage: DC9V (adapter included)
• Includes LCD menu screen
• Last used configuration memory.
• Comes with instructions

Package Includes:

• 1 x DDS Function Generator
• 1 x Probe
• 1 x 9V power supply adapter
