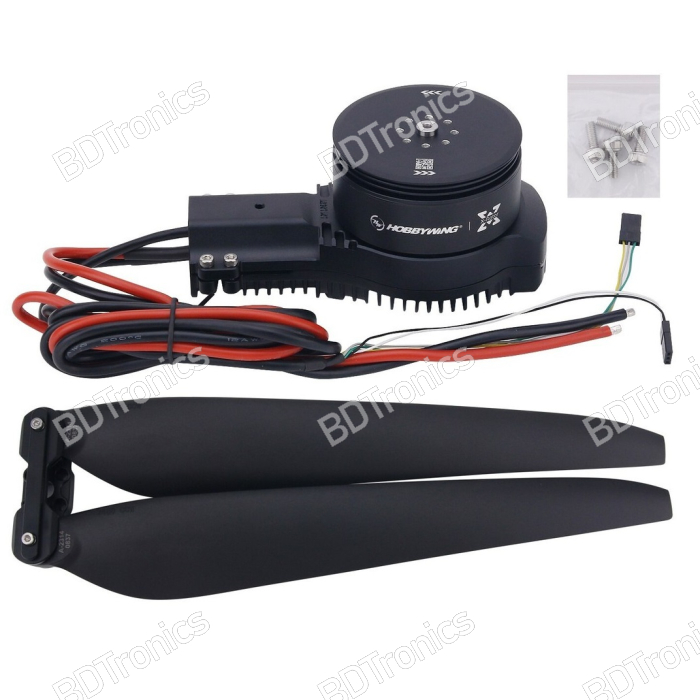

The Brand New Hobbywing XRotor X6 Plus Motor and Folding Propeller Combo Kit is a high-performance power system designed for agricultural drones, industrial UAVs, and heavy-lift multirotors. Engineered with precision and reliability, this combo provides exceptional thrust, waterproof durability, and smooth efficiency for professional-grade aerial operations. The X6 Plus brushless power system is capable of lifting 3.5–5.5 kg per axis and delivering up to 11.8 kg of thrust at 46V, ensuring powerful performance even under demanding conditions.

Built to the IPX6 waterproof standard, the XRotor X6 Plus is resistant to rainwater, pesticides, salt spray, sand, and dust, making it ideal for tough environments such as agriculture spraying drones, mapping drones, and inspection UAVs. The advanced FOC ESC and motor algorithm ensures smooth throttle response, stable flight control, and optimized energy efficiency for long operational endurance.

Features:

• High Load Capacity: Supports payloads between 3.5–5.5 kg per axis, ideal for agricultural and industrial drones.

• Strong Thrust Output: Delivers up to 11.8 kg thrust per axis at 46V for stable heavy lifting.

• High Efficiency Motor: Optimized 150KV brushless motor ensures energy-efficient performance with 12–14S batteries.

• Advanced ESC Algorithm: FOC (Field Oriented Control) technology provides smoother motor response and improved control precision.

• Durable and Reliable: Resistant to pesticides, salt, sand, and mud for consistent operation in harsh outdoor conditions.

• Waterproof & Dustproof: Rated IPX6, allowing operation in rain, mist, and wet agricultural environments.

• Precision Bearings: Imported Japanese bearings enhance stability and extend motor lifespan.

• Real-Time Data Output: Provides flight data feedback for monitoring motor performance and safety.

• Multiple Protections: Built-in safeguards against over-current, abnormal voltage, motor lock-up, and power-on self-check errors.

• Folding Propeller Compatibility: Supports 2388 or 2480 carbon fiber folding propellers for portability and easy maintenance.

• Temperature Resistant: Operates reliably between -20°C to 50°C, suitable for diverse weather conditions in Bangladesh.

Specifications:

• Item Type: Combo Kit (Motor + Folding Propeller)

• Motor KV Rating: 150 rpm/V

• Thrust Limitation: 11.8 kg/axis (46V, sea level)

• Payload Capacity: 3.5–5.5 kg/axis (46V, sea level)

• Battery Compatibility: 12–14S LiPo battery

• Stator Size: 62 × 18 mm

• Propeller Size: 2388 or 2480 folding propeller

• Bearing Type: Imported Japanese bearings

• Operating Temperature: -20°C to 50°C

• Waterproof Rating: IPX6

• Compatible Arm Size: 28–30 mm carbon fiber tube arms

• Shipping Weight: 1.05 kg

• Dimensions: 30 × 20 × 10 cm

Package Contents:

• 1 × Hobbywing XRotor X6 Plus Brushless Motor

• 1 × X6 Plus 2388 or 2480 Folding Propeller Set

• Mounting accessories and hardware set

How to Use:

• Mount the motor securely on a 28–30 mm carbon fiber drone arm using the included hardware.

• Connect the ESC with proper polarity and verify secure wiring to the flight controller.

• Install folding propellers (2388 or 2480) according to rotation direction for balanced thrust.

• Ensure proper ESC calibration and throttle range setup before flight.

• Use 12S–14S LiPo batteries to achieve optimal efficiency and power output.

• After installation, perform a power-on self-check and verify motor rotation direction.

• Keep the system clean and free from mud or pesticide residue after agricultural use.

Usage Instructions for Agricultural Drones:

• Suitable for crop spraying drones, fertilizer spreading UAVs, and seed broadcasting drones.

• Operate at stable voltage levels between 12S–14S for best performance.

• Clean propellers and motor housing regularly to maintain waterproof integrity.

• Store the motor kit in a dry and dust-free environment when not in use.

Advantages:

• Professional-grade motor and propeller combo for agriculture and mapping drones.

• Long operational lifespan due to heat and corrosion-resistant design.

• Excellent balance between thrust, efficiency, and reliability for continuous flight missions.

• Trusted Hobbywing engineering ensures consistent quality and performance for UAV professionals.
