The 24V 10A LiFePO4 Battery Charger is a high-efficiency charger designed specifically for 8S (8-cell) Lithium Iron Phosphate (LiFePO4) battery packs. It provides a precise 29.2V full-charge cut-off, ensuring safe, fast, and reliable charging. Ideal for solar energy systems, electric scooters, EVs, RVs, marine applications, and backup battery setups, this charger combines digital control, multiple connector compatibility, and intelligent protection features for safe operation.

With LED charging indicators and support for Anderson, XT60, XT90, and 73MM terminal connectors, this charger is highly versatile. The included heavy-duty crocodile clips ensure secure battery connections, while advanced safety circuits protect against overvoltage, overcurrent, overload, and short-circuit hazards.

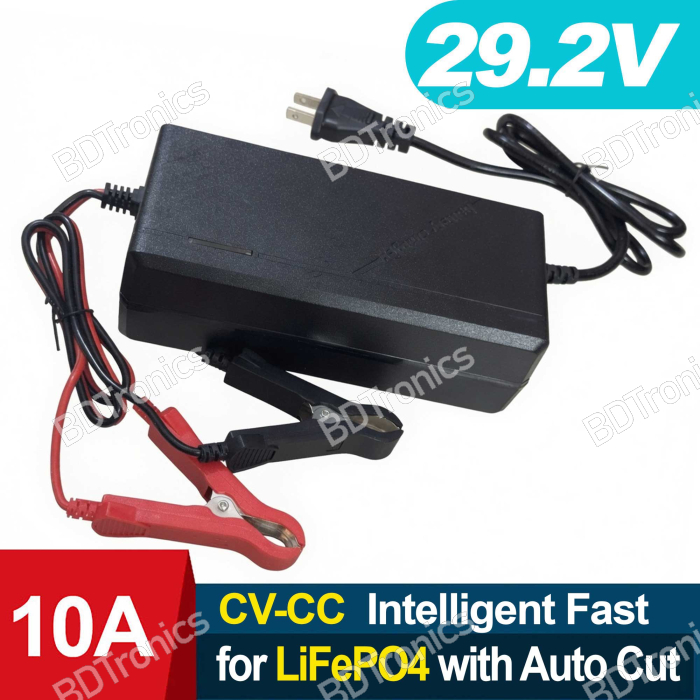

Full Charge Auto Cut-Off Digital 8S 29.2V (24V) 10A LiFePO4 Battery Charger

Features:

• Optimized for 8S LiFePO4 batteries (24V nominal, 29.2V full charge).

• Automatic cut-off at full charge to prevent overcharging and prolong battery life.

• High charging efficiency: ≥85% at full load.

• Digital charging with LED status indicator (Red: Charging, Green: Fully Charged).

• Multiple battery connector options: 73MM terminal, Anderson, XT60, XT90.

• Heavy-duty crocodile clips included for secure connections.

• Advanced safety protection: overvoltage, overcurrent, overload, short-circuit protection.

• Compact, lightweight, and durable design for home, industrial, and mobile applications.

Specifications:

• Type: LiFePO4 Battery Charger

• Input Voltage: AC 110–220V, 50/60Hz

• Battery Type: 8S LiFePO4 (24V nominal)

• Output Voltage: 29.2V DC

• Output Current: 10A

• Charging Power: 292W

• Charging Efficiency: ≥85%

• Battery Connectors: 73MM / Anderson / XT60 / XT90

• Battery Clip Type: Crocodile Clip

• AC Plug Type: EU Plug

• Color: Black

• Weight: Approx. 370g (±5g)

• Size: 165mm x 80mm x 57mm

• LED Indicator: Red (Charging), Green (Fully Charged)

Safety & Protection Features:

• Overvoltage Protection

• Overcurrent Protection

• Overload Protection

• Short-Circuit Protection

Usage Instructions:

1. Connect the charger to the battery first, then plug into the AC outlet.

2. Once charging completes, unplug the charger from AC before disconnecting the battery.

3. If the LED turns green, continue charging 2–3 hours for full battery balance.

4. Avoid charging deeply discharged or unsafe batteries.

5. Use the charger in dry, ventilated environments.

6. Do not leave the charger continuously connected when not in use.

Applications:

• Charging 8S (24V) LiFePO4 battery packs

• Off-grid solar energy and storage systems

• Electric scooters, bikes, and EVs

• Marine, RV, and backup power systems

• Emergency and standby battery backup solutions
