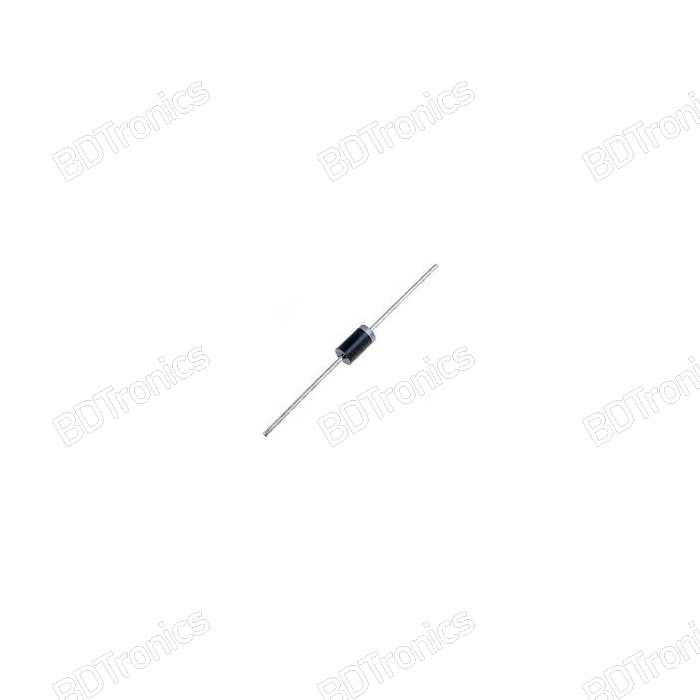

HER207 high-efficiency fast-recovery rectifier diode designed for power electronics, switch-mode power supplies (SMPS), battery chargers, and high-frequency inverters. This 2A, 800V diode delivers rapid switching performance with typical recovery times of 50–70ns, making it ideal for high-frequency power circuits requiring low forward voltage drop and high surge current capability.

BDTronics supplies HER207 diodes in Bangladesh for electronics engineers, repair technicians, industrial designers, and hobbyists working on power conversion, inverter circuits, and battery management systems.

Features:

• 800V Maximum Repetitive Peak Reverse Voltage

• 2A Maximum Average Forward Current

• Fast Recovery Time: 50–70ns

• Maximum Surge Current: 60A

• DO-15 Axial Lead Package (DO-204AC)

• Glass-Passivated Junction for Stability and Reliability

• Low Forward Voltage Drop for High Efficiency

• RoHS Compliant and Environmentally Friendly

• Color Band Cathode Marking for Easy Polarity Identification

• Ideal for High-Frequency and Switching Applications

• Reliable Performance in SMPS and Charger Circuits

• Compact Axial Lead Design for Easy PCB Mounting

Applications:

• Switch-Mode Power Supplies (SMPS)

• Battery Charger Circuits

• Freewheeling and Flyback Diodes

• High-Frequency Inverter Circuits

• DC-DC Converter Rectification

• Industrial Power Electronics

• LED Driver Power Rectification

• UPS Power Supplies

• Motor Driver Circuits

• Electronics Repair and Prototyping

How to Use:

• Observe polarity: cathode marked with color band

• Connect in series with load or as rectifier in AC-DC conversion

• Suitable for high-frequency switching circuits

• Ensure current rating and voltage rating are not exceeded

• Mount on PCB using axial leads or heatsink if necessary

• Use in parallel with other diodes for higher current handling if required

Specifications:

• Model: HER207

• Type: Fast-Recovery Rectifier Diode

• Maximum Repetitive Peak Reverse Voltage (VRRM): 800V

• Maximum Average Forward Current (IF): 2A

• Maximum Surge Current (IFSM): 60A

• Reverse Recovery Time (trr): 50–70ns

• Forward Voltage Drop (VF): Low

• Package: DO-15 (DO-204AC) Axial Lead

• Junction Type: Glass Passivated

• Polarity: Cathode marked with color band

• Compliance: RoHS

Package Includes:

• 100 × HER207 800V 2A Fast-Recovery Rectifier Diodes
