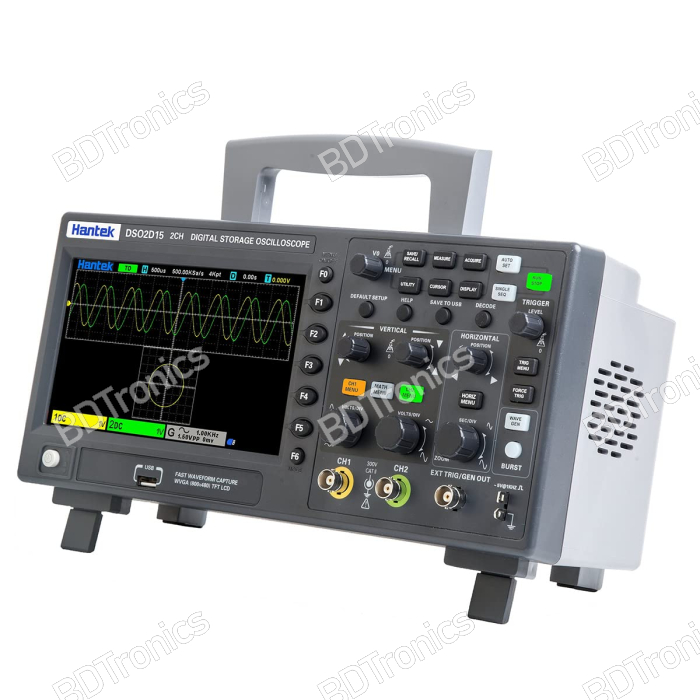

Hantek DSO2D15 150MHz 2 Channels 1GSa/s 8M Memory Depth with Signal Waveform Generator

2 channels, 150 MHz bandwidth, 1GSa/S sampling rate, 8M memory depth with 1CH built-in 25MHz Waveform Generator Supports 14 kinds of trigger modes, standard with 5 kinds of serial protocol triggers and decodes; 32 kinds of auto measurements with statistics Can save multiple data formats, such as settings, waveforms, reference waveforms, CSV, pictures 7-inch TFT LCD screen, 800 * 480 pixels, 16 million display colors (24bit true colors) Comes with 2 PP-150B 150MHz probe, 1 USB cable, 2 clip lines and 1 US power cable

In stock

SKU PRD-00003961
Delivery Info
truck-fast
Inside Dhaka: 1-2 days
Express (Dhaka): 24 hours
Order before 12.00PM
Outside Dhaka: 2-3 days
hand-holding-dollar
Cash on delivery all over BD
Quality
award
100% authentic product
circle-check
Quality product guaranteed
Service
repeat
7 days easy return
credit-card
Safe & secure payment
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account

Product Details

 Hantek DSO2D15 is a cost-effective economy oscilloscope,with 150MHz bandwidth,1GSa/s,8M memory depth, 3-digit digital voltage meter, 6-digit hardware frequency indicator function and abundant SCPI remote command control. It has 1ch built-in 25MHz waveform generator,support arbitrary waveform output. This lab oscilloscop supports BUS decode and protocol analysis includes RS232/UART, I2C, SPI, CAN, LIN.It is a useful device in various fields, such as communications, aerospace, embedded systems, computers, research and education, etc.




Feature:

  • 2 channels which are respectively controlled by independent knobs
  • 150MHZ analog channel bandwidth
  • Sampling rate up to 1 GSa/s
  • 8M memory depth
  • Vertical range 2mV/div ~ 10V/div
  • Built-in 1 CH 25MHz waveform generator
  • Vertical resolution: 8bit
  • Trigger: Edge, Pulse,Video, Slope, Overtime, Window, Pattern, Interval, Under Amp, UART, LIN, CAN, SPI, IIC
  • BUS decode and protocol analysis: RS232/UART, I2C, SPI, CAN, LIN
  • Can save multiple data formats, such as settings, waveforms, reference waveforms, CSV, pictures
  • A 3-digit digital voltage meter and a 6-digit hardware frequency indicator
  • 32 kinds of auto measurements with statistics, real-time statistics of maximum, minimum, standard deviation and etc.
  • 2 sets of digital voltmeters
  • Support threshold testing, free measurements within the screen
  • Abundant SCPI remote command control
  • USB Host/Device



Package Includes:

  • 1 x Hantek DSO2D15 Oscilloscope
  • 2 x PP-150B 150MHz probe
  • 1 x USB cable
  • 2 x clip lines
  • 1 x power cable
  • 1 x Instruction Manual
Show More

General Questions

  • What is the price of the Hantek DSO2D15 150MHz 2 Channels 1GSa/s 8M Memory Depth with Signal Waveform Generator in Bangladesh?

    The latest price of Hantek DSO2D15 150MHz 2 Channels 1GSa/s 8M Memory Depth with Signal Waveform Generator in Bangladesh is BDT 33,500.00 . You can buy the Hantek DSO2D15 150MHz 2 Channels 1GSa/s 8M Memory Depth with Signal Waveform Generator at the best price on BDTronics.com or contact us via phone.

  • Where to buy Hantek DSO2D15 150MHz 2 Channels 1GSa/s 8M Memory Depth with Signal Waveform Generator in Bangladesh?

    You can buy Hantek DSO2D15 150MHz 2 Channels 1GSa/s 8M Memory Depth with Signal Waveform Generator online by ordering on our website or directly collect by visiting our store in person. We provide home delivery service all over BD with cash on delivery and online payment method. It usually takes 1-2 days to deliver inside Dhaka and 2-3 days outside Dhaka.
