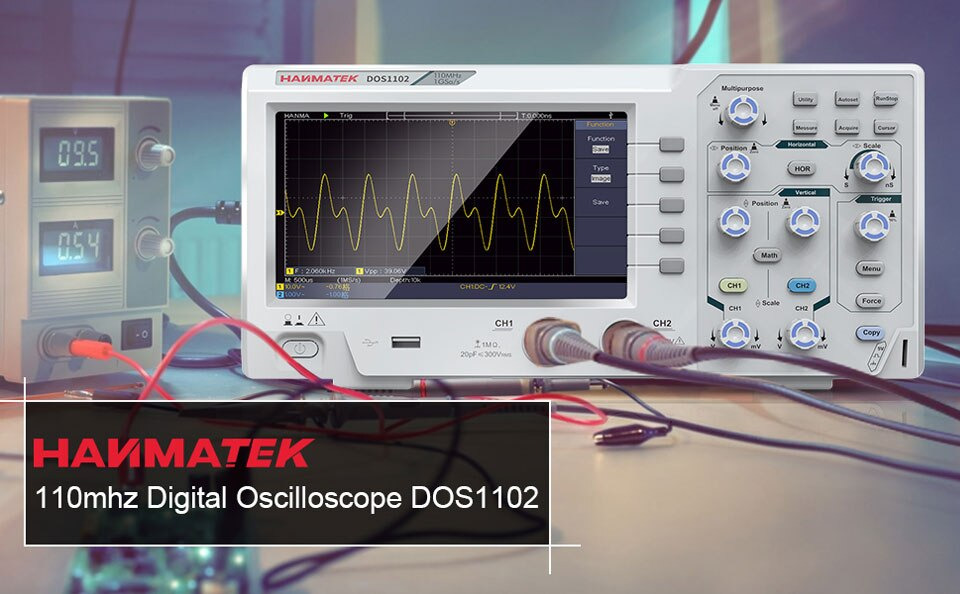

HANMATEK DOS1102 110mhz 2-Channel 1Gs/S Digital Storage Oscilloscope

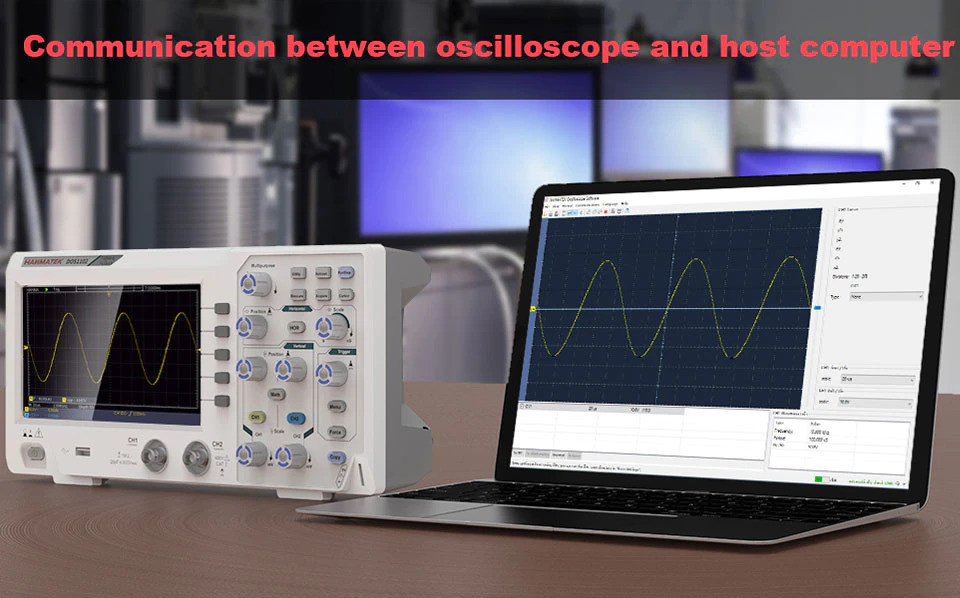

The Hanmatek DOS1102 is a great digital storage oscilloscope for those looking diagnose and measure a wide range of signals and devices, ideal for fault finding and diagnosis work. The integrated LCD screen clearly shows your measurements, or connect via USB to your PC for recording large screen viewing of your data collection.   It supports 110MHz bandwidth, 1GSa / s real-time sampling rate, dual channel, 2ns / div ~ 1000s / div time base range; storage depth (record length of each acquired waveform) is not less than 10K sampling points; stored waveform is not less 16 groups; with U disk storage function; USB Device & Host interface.

In stock

SKU PRD-00003506
Delivery Info
truck-fast
Inside Dhaka: 1-2 days
Express (Dhaka): 24 hours
Order before 12.00PM
Outside Dhaka: 2-3 days
hand-holding-dollar
Cash on delivery all over BD
Quality
award
100% authentic product
circle-check
Quality product guaranteed
Service
repeat
7 days easy return
credit-card
Safe & secure payment

Customer Reviews

Price
star star star star star
Quality
star star star star star
Value
star star star star star
Works great emoji-happy
Review by
This oscilloscope works good for our purpose. Powerful and precise measurement. Recommended for professional use!
Price
star star star star star
Quality
star star star star star
Value
star star star star star
Best emoji-happy
Review by
We received the oscilloscope as shown on the photo. Delivery was fast and on time.
Price
star star star star star
Quality
star star star star star
Value
star star star star star
good but.. emoji-happy
Review by
oscilloscope works but, one month por pelam. stock sesh hoye jay kisudin por por. you need better management
Price
star star star star star
Quality
star star star star star
Value
star star star star star
perfect emoji-happy
Review by
works absolutely perfect

4 Item(s)

Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account

Product Details

Features:

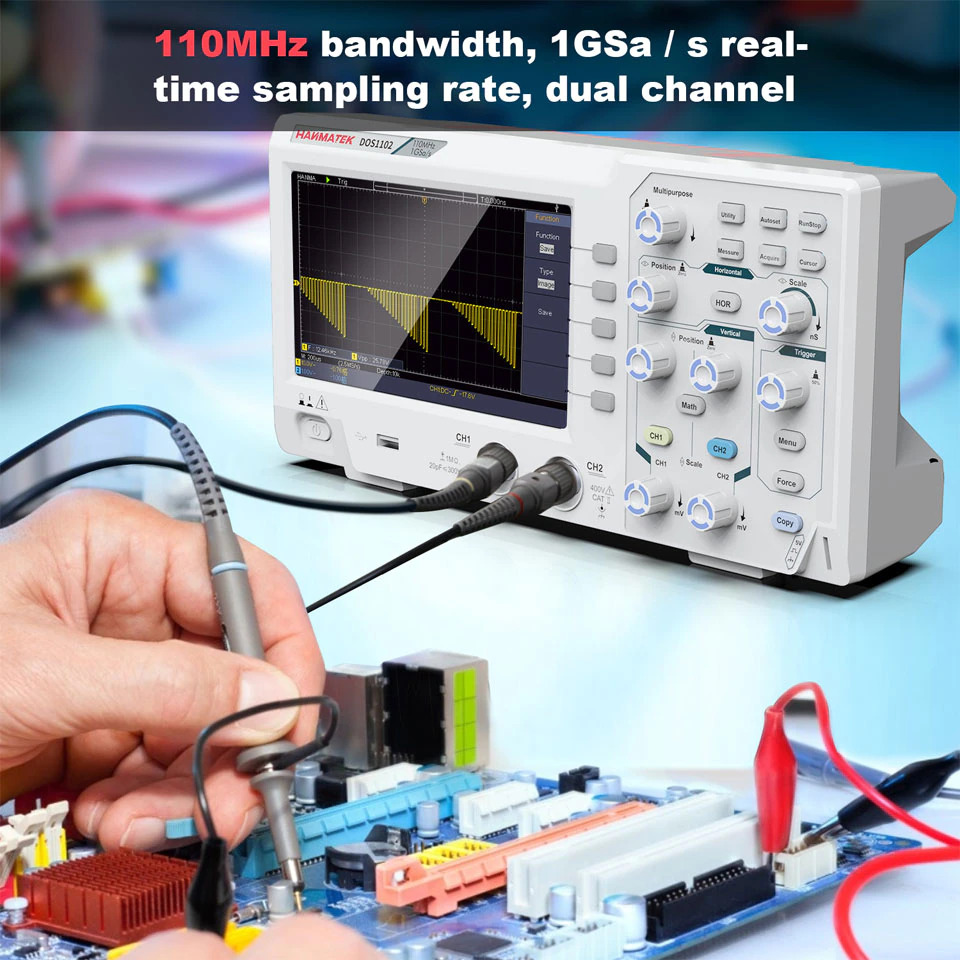

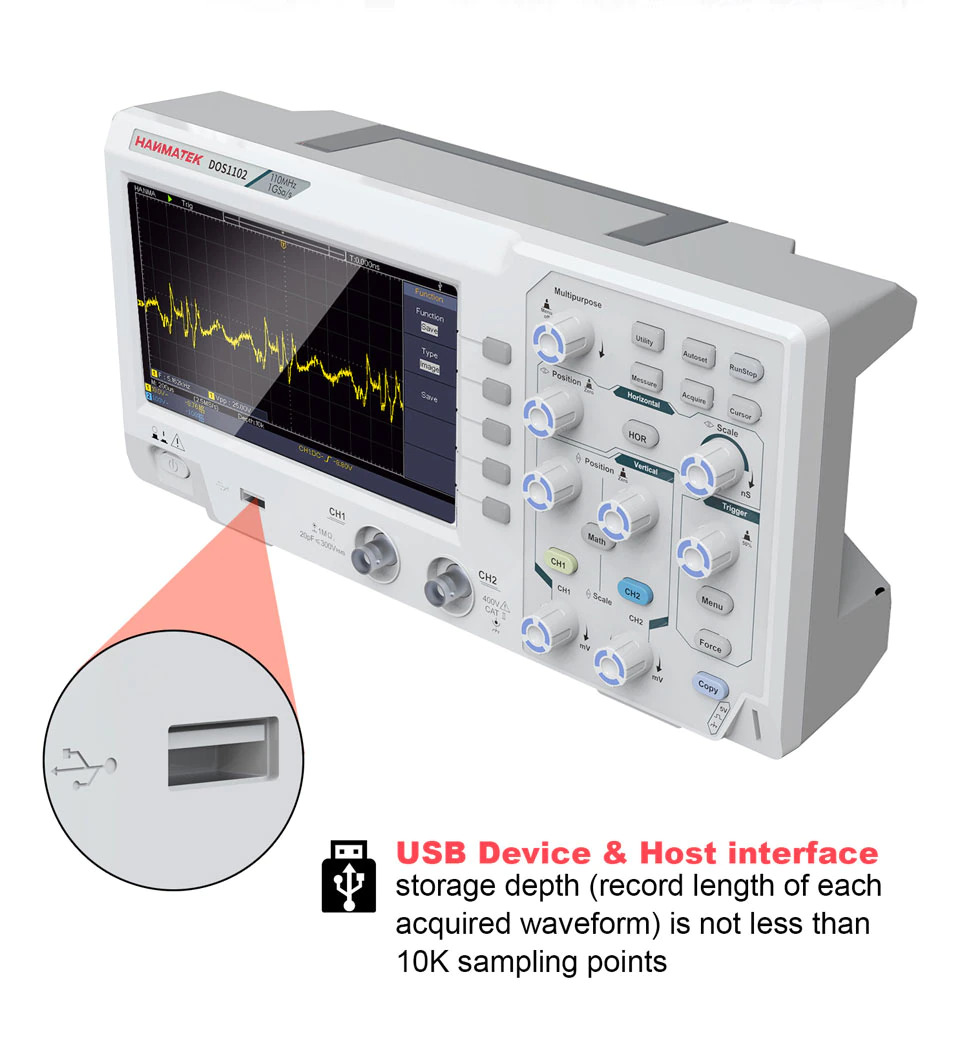

  • 110MHz bandwidth, 1GSa / s real-time sampling rate, dual channel, 2ns / div ~ 1000s / div time base range; storage depth (record length of each acquired waveform) is not less than 10K sampling points; stored waveform is not less 16 groups; with U disk storage function; USB Device & Host interface.

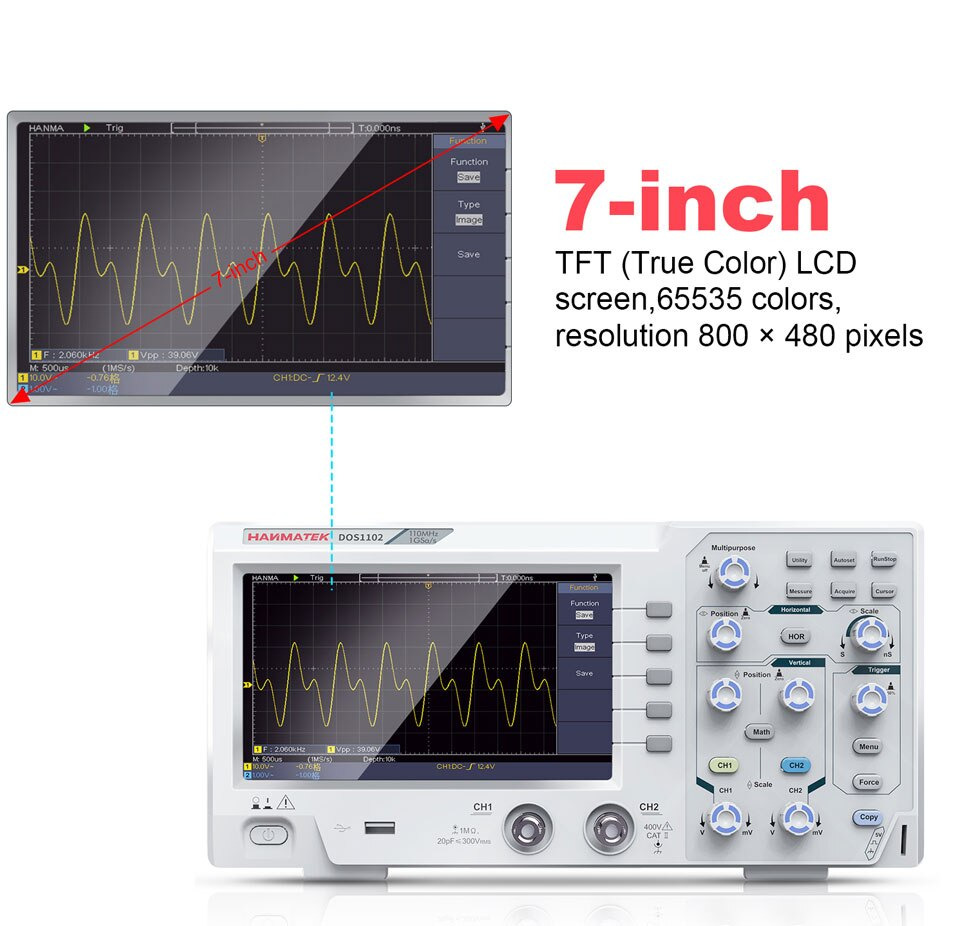

  • 7 inch 800*480 LCD screen.
  • Support cursor measurement, cursor mode is not less than voltage difference (△ V), time difference (△ T), time difference & voltage difference ( △ V), four modes of automatic cursor
  • With automatic range function, support horizontal, vertical, single waveform / multi-waveform tracking; probe attenuation multiples of 1X, 10X, 100X, 1000X, four kinds
  • Built-in 6-bit hardware frequency meter, which can measure 2Hz ~ 20MHz; with current measurement function, measurement range: 100.0mA / V ~ 1KA / V
  • 30 kinds of automatic measurement functions.
  • Support LABVIEW communication, support secondary development.

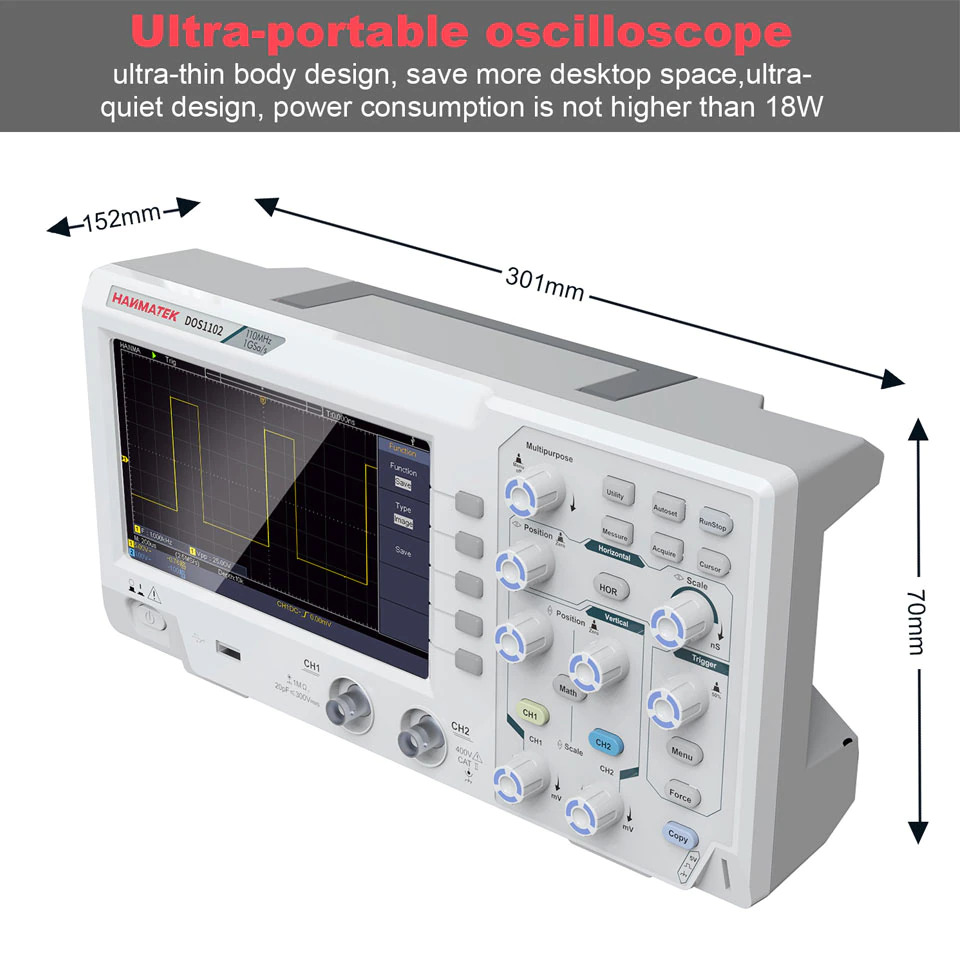

  • Ultra-portable oscilloscope with a volume of 301 x 152 x 70 mm, ultra-thin body design, thickness of 70 mm, weight of 1.1 kg, saving more desktop space, ultra-quiet design, power consumption not higher than 18W

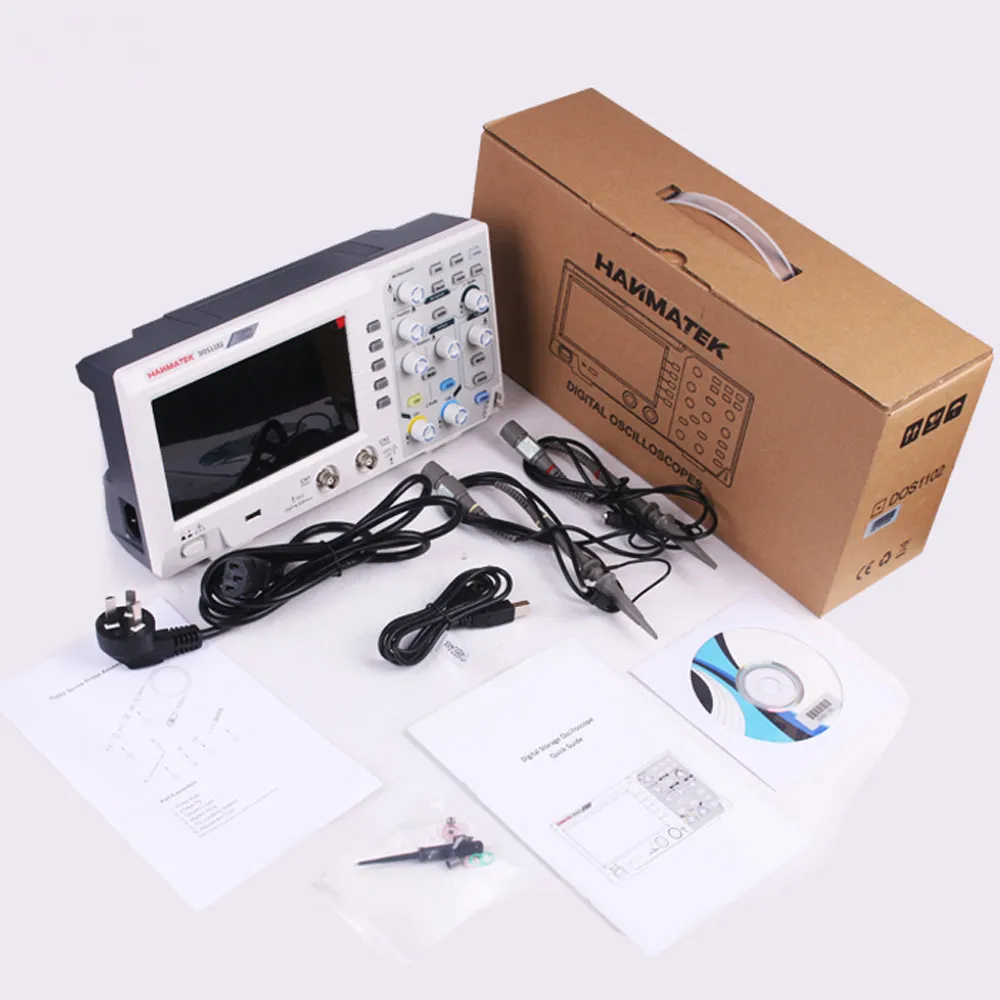

  • Package included:1 x Oscilloscope, 1 x Oscilloscope Kit
  • Model Number: DOS1102
  • Languages: Chinese, English, German, French, Italian, Spanish, Japanese, Russian

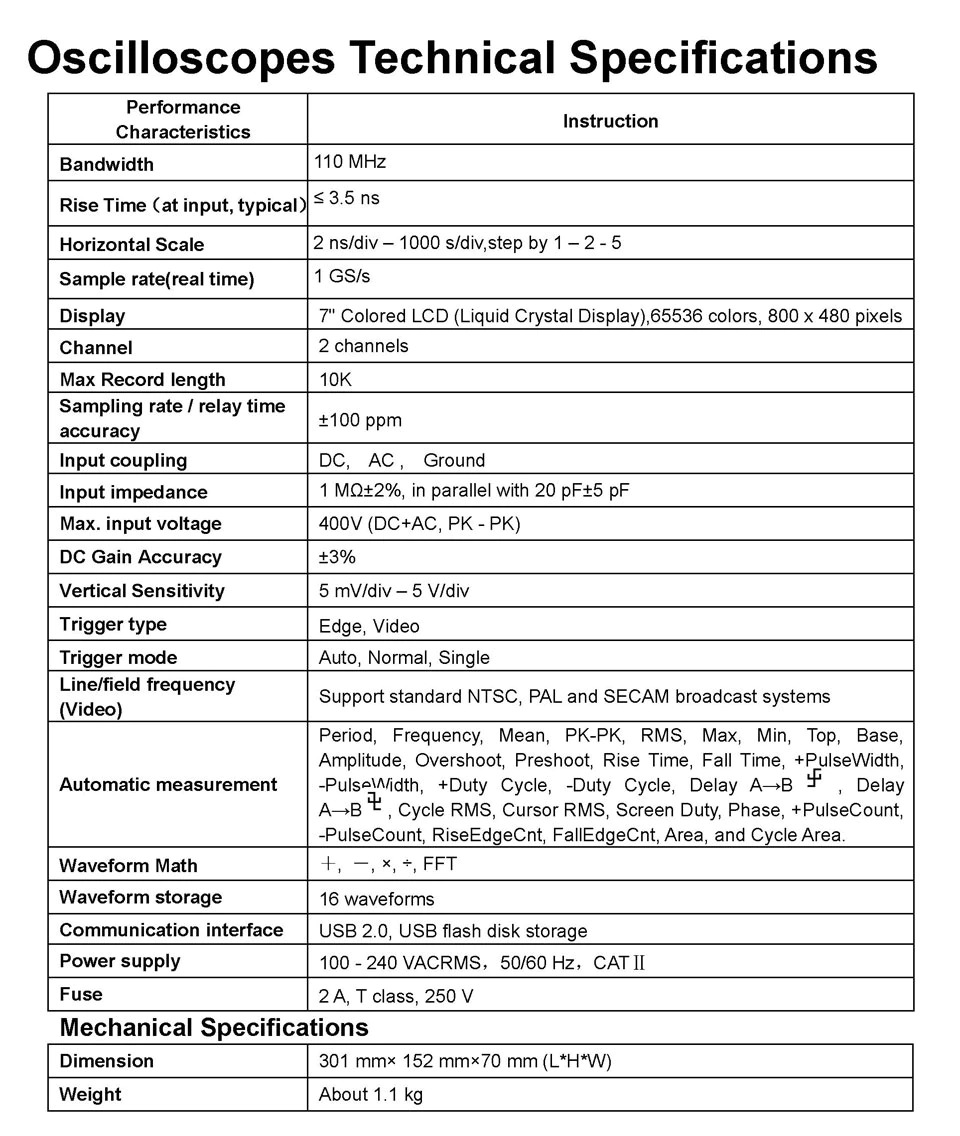

Specifications:

Highlights:





arrow-down
Show More
