The GP2Y1014AU0F compact optical dust sensor is a high-performance particle sensor module designed to detect fine particles such as smoke, pollen, spores, and dust in the air. This sensor operates using an infrared emitting diode and a phototransistor that work together to measure the light scattered by airborne particles, providing a voltage output proportional to the dust density.

With its compact size, low power consumption, and reliable performance, the GP2Y1014AU0F is widely used in air purifiers, dust detection systems, fire alarm systems, dust removal equipment, industrial monitoring, and air quality monitoring robots. It is capable of detecting particles as small as 0.8µm with high sensitivity, making it suitable for applications that require accurate air pollution and dust concentration monitoring.

This module comes with a cable, resistor, and capacitor, making integration into electronic circuits and microcontroller projects simple and convenient.

Features:

• Compact and lightweight optical dust sensor module

• Detects fine particles including smoke, pollen, spores, and dust

• High sensitivity with 0.5V/(0.1mg/m³) output response

• Reliable clean air voltage baseline for accurate measurement

• Low current consumption (20mA peak) for energy-efficient applications

• Easy to integrate into electronic devices with included cable and components

• Suitable for air purification, dust detection, fire alarm systems, and industrial monitoring

• Long lifespan and stable performance under varying conditions

Specifications:

• Product Name: GP2Y1014AU0F Compact Optical Dust Sensor Module

• Power Supply Voltage: DC 5.2V

• Operating Current: 20mA (peak)

• Sensitivity: 0.5V / (0.1mg/m³)

• Minimum Detectable Particle Size: 0.8µm

• Clean Air Voltage: 0.9V (typical)

• Operating Temperature: -10°C ~ 65°C

• Storage Temperature: -20°C ~ 80°C

• Module Size: 46mm × 30mm × 17.6mm

• Module Weight: 15g

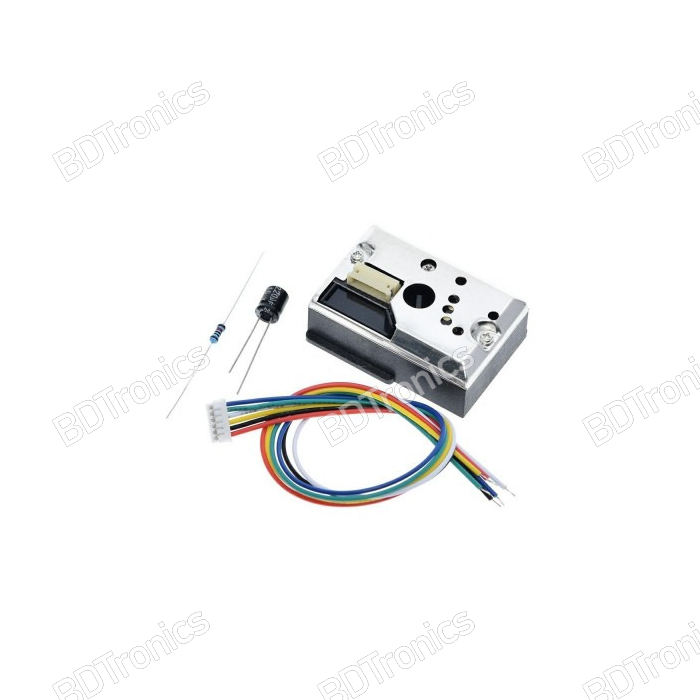

Package Includes:

• 1 x GP2Y1014AU0F Dust Sensor Module

• 1 x Cable

• 1 x 150Ω Resistor

• 1 x 220µF 16V Capacitor
