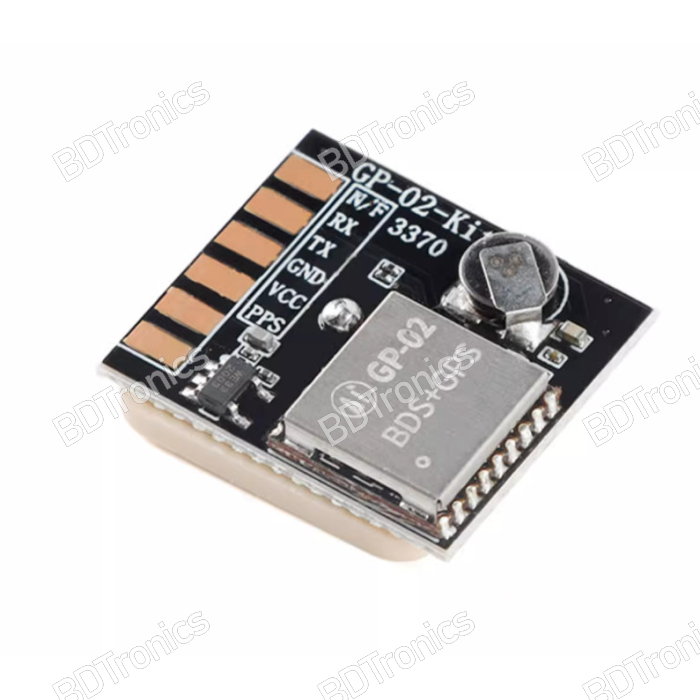

Ai-Thinker GP-02 GPS Development Board available at BDTronics is a compact multi-mode GNSS positioning solution designed for accurate location tracking, embedded development, IoT devices, robotics, and navigation projects in Bangladesh. Built around the AT6558R satellite positioning chip, this development board integrates RF front end, digital baseband processor, power management unit, and 32-bit RISC CPU to deliver reliable positioning with low power consumption.

BDTronics provides Ai-Thinker GP-02 GPS Development Board for students, engineers, makers, and developers seeking precise GPS tracking and serial communication integration for Arduino, STM32, ESP32, Raspberry Pi, and other microcontroller projects. With ceramic antenna and multi-satellite support including BDS, GPS, and GLONASS, the module ensures faster cold start, stable signal reception, and enhanced positioning accuracy even in challenging environments.

Features:

• Multi-mode GNSS support including BDS, GPS, and GLONASS for accurate positioning

• High performance AT6558R satellite positioning chip

• Integrated RF front end and digital baseband processor for stable signal reception

• Built-in 32-bit RISC CPU for efficient processing and navigation calculations

• Active antenna detection and protection for reliable hardware operation

• NMEA protocol support for easy integration with microcontrollers and development platforms

• Compact PCB design suitable for drones, vehicle tracking, wearable devices, and IoT applications

• Low power consumption ideal for battery powered embedded systems

• Ceramic antenna included for improved satellite signal acquisition

• Serial communication interface for simple data reading and configuration

Applications:

• Vehicle tracking and fleet monitoring systems

• IoT location tracking devices and smart asset tracking

• Drone navigation and robotics positioning projects

• GPS data logging and mapping applications

• Arduino, ESP32, STM32, Raspberry Pi GPS integration

• Smart agriculture and outdoor positioning systems

• Timing synchronization and navigation research projects

How To Use:

• Connect VCC and GND to regulated power supply according to board voltage requirement

• Connect TX and RX pins to microcontroller UART interface for NMEA data output

• Place module in open sky area for faster satellite lock and accurate positioning

• Use serial monitor or GPS parsing library to read latitude, longitude, altitude, and time data

• Configure NMEA output rate or satellite mode using supported serial commands

• Mount antenna facing upward and away from metal obstruction for best reception

Packing Included:

• 1 x Ai-Thinker GP-02 GPS Development Board

Specifications:

• Model: GP-02 GPS Development Board

• Positioning Chip: AT6558R

• Satellite Support: BDS, GPS, GLONASS

• Protocol: NMEA

• CPU: 32-bit RISC processor

• Antenna: Onboard ceramic antenna

• Interface: UART serial communication

• Functions: Active antenna detection, RF front end, baseband processing, power management

• Form Factor: Compact development board

• Application Type: GNSS positioning, embedded GPS development
