Geekworm X1004 PCIe to Dual 2280 NVMe SSD Shield for Raspberry Pi 5

Order before 12.00PM

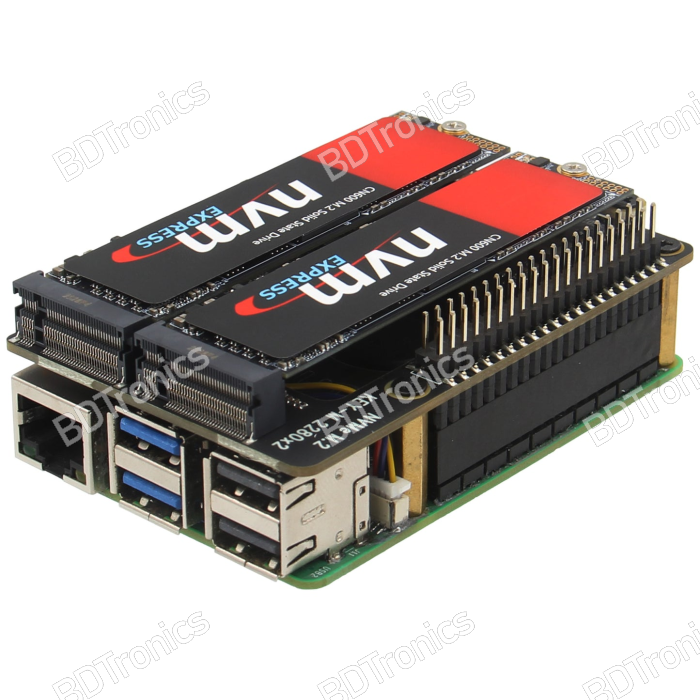

The Geekworm X1004 PCIe to Dual 2280 NVMe SSD Shield is a high-performance storage expansion board designed specifically for the Raspberry Pi 5. This advanced NVMe shield allows users to connect two M.2 2280 NVMe SSDs directly to the Raspberry Pi 5 through the PCIe interface, significantly improving storage speed and capacity compared to traditional microSD cards.
Designed like a traditional Raspberry Pi HAT, the X1004 mounts neatly on top of the Raspberry Pi 5 while still providing access to the 40-pin GPIO header. This allows users to stack additional HAT modules and maintain full GPIO functionality. The shield supports up to 8TB total storage (4TB + 4TB), making it an excellent solution for high-performance applications such as AI processing, data logging, network storage servers, and large-scale software development projects.
The built-in ASMedia ASM1182e PCIe switch enables dual NVMe SSD support while maintaining stable data transfer speeds of up to PCIe 2.0 5Gbps. Integrated LED indicators display power and drive activity status, while high-efficiency DC/DC converters provide stable power to both SSDs. The board is also compatible with the official Raspberry Pi cooling system, ensuring efficient thermal performance for long-term operation.
X1004 supports the Hailo-8 AI accelerator module and allows booting from an NVMe SSD, making it a powerful upgrade for advanced Raspberry Pi 5 setups. (Note: This kit does not include the Raspberry Pi or NVMe SSD)
Features:
-
Designed exclusively for Raspberry Pi 5 systems
-
Supports two M.2 2280 NVMe SSD drives for high-speed storage expansion
-
Maximum total storage capacity up to 8TB (4TB + 4TB)
-
PCIe 2.0 interface delivering data transfer speeds up to 5Gbps
-
Built-in ASMedia ASM1182e PCIe packet switch for dual NVMe connectivity
-
Supports booting the Raspberry Pi 5 directly from NVMe SSD
-
Compatible with Hailo-8 AI accelerator modules
-
Retains access to the 40-pin GPIO header for stacking additional HATs
-
Fully compatible with the Raspberry Pi official passive and active cooling solutions
-
Integrated blue LED indicators for power and drive activity status
-
High-efficiency DC/DC step-down converters delivering up to 3.5A + 3.5A for SSD power
-
Supports Raspberry Pi HAT+ standby power management mode
-
Automatically powers down when Raspberry Pi 5 shuts down
-
Sturdy mounting design with standoffs and mounting holes for stable installation
-
Helps improve heat dissipation and protects installed SSD drives
Specifications:
-
Model: X1004 v1.1
-
Compatibility: Raspberry Pi 5 only
-
Storage Interface: PCIe to Dual NVMe
-
Supported SSD Type: M.2 NVMe SSD only
-
SSD Size Support: 2280 NVMe drives
-
Maximum Storage Capacity: 8TB total (4TB + 4TB)
-
Data Transfer Speed: PCIe 2.0 up to 5Gbps
-
PCIe Switch Chip: ASMedia ASM1182e
-
Power Supply: 40-pin GPIO header and PCIe FFC connection
-
SSD Power Output: 3.5A + 3.5A DC/DC step-down converters
-
Status Indicators: Blue LED power and activity indicators
-
Cooling Compatibility: Compatible with Raspberry Pi official passive and active coolers
-
Mounting Type: HAT-style top mounting with standoffs
Important Notes:
-
Only compatible with M.2 NVMe SSD drives
-
Not compatible with M.2 SATA SSD or M.2 PCIe AHCI drives
-
Due to the ASM1182e PCIe switch, the shield operates at PCIe 2.0 speed only
-
PCIe Gen 3.0 is not supported even if enabled in Raspberry Pi settings
-
Hailo-8 AI accelerator and NVMe SSD share PCIe bandwidth
-
New NVMe drives must be partitioned and formatted before first use
-
Older NVMe SSD models may have slower performance compared to newer drives
How to Use:
-
Mount the X1004 shield on top of the Raspberry Pi 5 using the included standoffs
-
Connect the PCIe FFC cable between the Raspberry Pi 5 and the shield
-
Install up to two M.2 2280 NVMe SSDs onto the board
-
Secure the SSDs using the provided screws
-
Power on the Raspberry Pi 5 and install the required NVMe drivers if necessary
-
Partition and format the SSDs before accessing them in the operating system
-
Monitor LED indicators to verify drive activity and operation
Applications:
-
High-speed storage upgrade for Raspberry Pi 5
-
AI and machine learning projects with Hailo-8 accelerator
-
Network Attached Storage (NAS) servers
-
Data logging and database servers
-
Media servers and video storage systems
-
Edge computing and IoT gateways
-
Software development and virtualization environments
-
Robotics and automation systems requiring large storage capacity
Package Includes:
-
1 × Geekworm X1004 v1.1 NVMe SSD Shield
-
1 × Screw Pack
