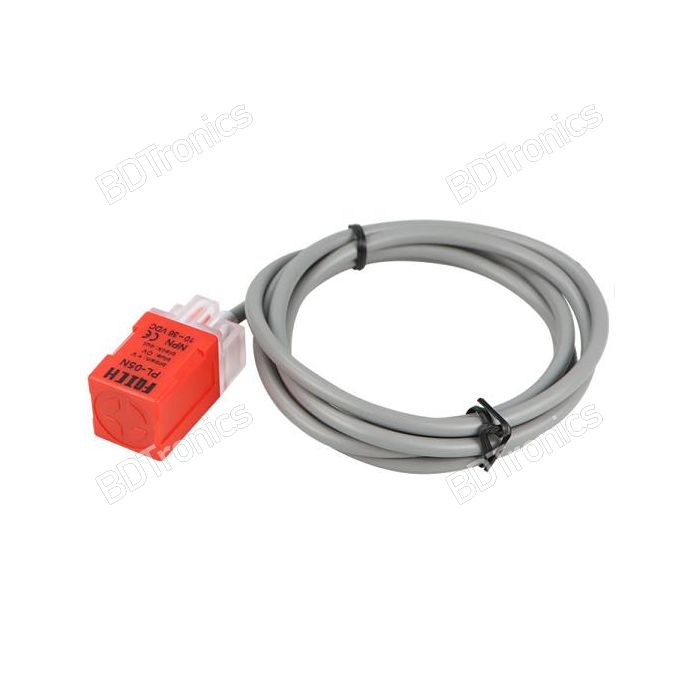

Fotek PL-05N NPN NO DC 10-30V Inductive Proximity Sensor

Inductive Proximity Sensor PL-05N NPN Limit Switch is used for controlling machinery as part of a control system, as a safety interlock, or to count objects passing a point. Being an inductive switch, no physical contact is required between the switch and the metallic surface being sensed. It's typically used in CNC and Laser Engraving machines which uses a metal target to sense the end of travel on an axis.

In stock

SKU PRD-00000037
Categories: PrototypingSensors
Delivery Info
truck-fast
Inside Dhaka: 1-2 days
Express (Dhaka): 24 hours
Order before 12.00PM
Outside Dhaka: 2-3 days
hand-holding-dollar
Cash on delivery all over BD
Quality
award
100% authentic product
circle-check
Quality product guaranteed
Service
repeat
7 days easy return
credit-card
Safe & secure payment
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account

Product Details

High Accuracy And Stable Accurate detection, stable performance, safe use, can meet your various needs. Power Supply Voltage: 10-30VDC. Durable Material The proximity switch is made of high quality ABS, durable and can be used for a long time. The structure is small and compact, reducing the size of the product and easy to install.  The detection distance is 5mm, and can detect objects and control the on and off of switches in various environments.

Specifications:

  • PL-05N
  • Brand: FOTEK
  • Square Type
  • Sensing distance: 5mm
  • Operating voltage: DC10-30V
  • Response frequency: 800Hz
  • Output method : NPN, 150mA load
  • Hysteresis: <10% of sensing distance
  • Protection degree: IP67
  • Working temperature/Hum : -20 ~+80C, 35%~90%RH
  • Body dimension : 30.5 x 17.9 x 10.2mm, LxWxH
  • Mounting Method: Flush
  • Sensing Direction: Horizontal
  • Material Housing: High-impact plastic
  • Screw hole : 3.2mm, Pitch : 10.5mm
  • Wire length : 100cm (39-inch)
arrow-down
Show More

You might also be interested in...

DHT11–Temperature and Humidity Sensor Module
BDT 155.00
MQ7 Gas Sensor Module
BDT 175.00

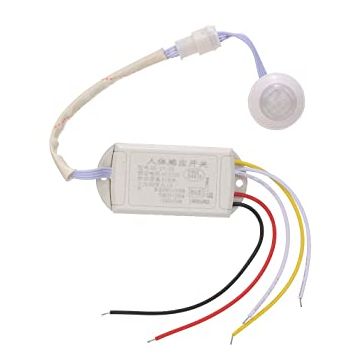

AC 220V IR LED Strip PIR Body Infrared Motion Sensor Automatic Light Switch
BDT 339.00
LJ8A3-4-Z/BX Inductive Proximity Sensor NPN NO DC 6-36V
Special Price BDT 495.00 Regular Price BDT 574.00
Water Level Sensor Cable Type Liquid Fluid Floating Switch
Special Price BDT 450.00 Regular Price BDT 630.00
MAX31865 Platinum PT100 RTD Temperature Sensor Amplifier Module
BDT 1,164.00
MQ6 Gas Sensor Module
BDT 165.00
801S Vibration Shock Sensor Module For Arduino
BDT 380.00

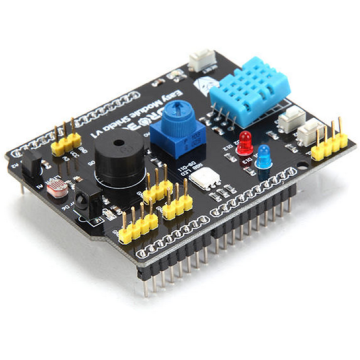

9 in 1 Multifunction Expansion Board DHT11 Humidity Sensor LM35 Temperature Sensor Buzzer for Arduino
