FNIRSI® S1 Smart Digital Multimeter Large Screen Auto Range
Order before 12.00PM

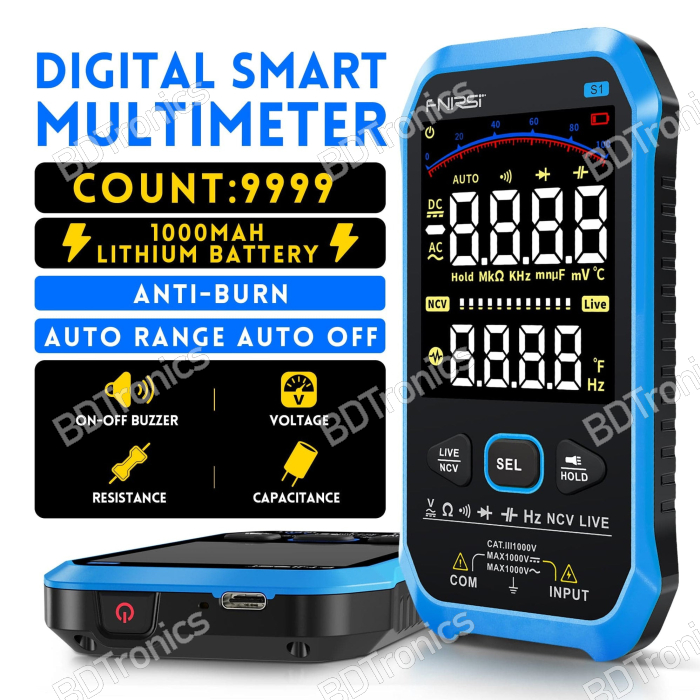

FNIRSI S1 Smart Digital Multimeter is a compact and intelligent measuring tool designed for professional electricians, electronics engineers, technicians, and DIY users. Featuring a large VA color display, True RMS measurement, automatic identification, NCV detection, rechargeable battery, and intelligent anti-burn protection, this multimeter provides reliable and accurate measurement for AC/DC voltage, resistance, capacitance, frequency, temperature, diode testing, and more. Available in Bangladesh from BDTronics.
FNIRSI S1 Smart Multimeter combines portability, durability, and advanced digital measurement functions in a slim lightweight body suitable for industrial, laboratory, home, and field use. BDTronics offers genuine FNIRSI digital multimeters for electronics and electrical applications in Bangladesh.
Features:
-
Large VA color display for clear measurement reading
-
Smart automatic function identification
-
AC and DC voltage measurement
-
True RMS measurement for accurate readings
-
Intelligent anti-burning protection design
-
Auto range digital multimeter
-
NCV non-contact voltage detection
-
Live wire detection mode
-
Built-in flashlight for low light operation
-
Data hold function for convenient reading
-
Diode testing support
-
Resistance, capacitance, frequency, and temperature measurement
-
Rechargeable built-in lithium battery
-
USB rechargeable via power bank or computer
-
Compact slim portable design
-
Durable ABS body construction
-
Suitable for electronics repair and electrical maintenance
-
Available from BDTronics Bangladesh
Specifications:
-
Brand: FNIRSI
-
Model: S1
-
Display: VA color screen
-
Max count: 9999 counts
-
Material: ABS
-
Security level: CAT III 1000V
-
Power supply: 1000mAh rechargeable lithium battery
-
Size: 143mm × 75mm × 19mm
-
Weight: 135g
AC Voltage Measurement:
-
Range: 0V – 1000V
-
Resolution:
-
0–10V: 0.001V
-
10–100V: 0.01V
-
100–1000V: 0.1V
-
1000V: 1V
-
-
Accuracy:
-
±(0.8%+3)
-
±(1.2%+3)
-
DC Voltage Measurement:
-
Range: 0V – 1000V
-
Resolution:
-
0–10V: 0.001V
-
10–100V: 0.01V
-
100–1000V: 0.1V
-
1000V: 1V
-
-
Accuracy:
-
±(0.8%+3)
-
±(1.2%+3)
-
Resistance Measurement:
-
Range: 0Ω – 100MΩ
-
Resolution:
-
0–1000Ω: 0.1Ω
-
1k–100kΩ: 0.01kΩ
-
100k–1000kΩ: 0.1kΩ
-
1M–100MΩ: 0.01MΩ
-
-
Accuracy:
-
±(0.8%+3)
-
±(1.2%+3)
-
Capacitance Measurement:
-
Range: 0nF – 10mF
-
Resolution:
-
0–10nF: 0.001nF
-
10–100nF: 0.001nF
-
100–1000nF: 0.1nF
-
1µF–10µF: 0.001µF
-
10µF–100µF: 0.01µF
-
100µF–1000µF: 0.1µF
-
1mF–10mF: 0.001mF
-
-
Accuracy:
-
±(4.5%+5)
-
Frequency Measurement:
-
Range: 0Hz – 10MHz
-
Resolution:
-
0–10Hz: 0–10Hz
-
10–100Hz: 0.01Hz
-
100–1000Hz: 0.1Hz
-
1k–10kHz: 0.001kHz
-
10k–100kHz: 0.01kHz
-
100k–1000kHz: 0.1kHz
-
1000kHz–10MHz: 1kHz
-
-
Accuracy:
-
±(0.1%+3)
-
Temperature Measurement:
-
Celsius:
-
-20°C to 0°C
-
1°C to 400°C
-
401°C to 1000°C
-
-
Fahrenheit:
-
-4°F to 32°F
-
33.8°F to 752°F
-
-
Resolution:
-
1°C / 1°F
-
-
Accuracy:
-
±(5%+4)
-
±(1%+3)
-
±(2%+5)
-
Additional Functions:
-
Auto power OFF
-
NCV induced voltage detection
-
Live wire detection
-
Built-in buzzer
-
Analog bar display
-
Low battery indication
-
Data hold function
-
Auto measurement mode
-
Diode testing mode
-
Flashlight illumination
Applications:
-
Electrical maintenance and troubleshooting
-
Electronics repair and testing
-
Home appliance servicing
-
DIY electronics projects
-
Industrial electrical work
-
AC/DC voltage testing
-
Continuity and resistance testing
-
Capacitor and frequency measurement
-
Educational laboratory use
Package Includes:
-
FNIRSI S1 Smart Digital Multimeter ×1
-
Test leads
-
Rechargeable built-in battery
-
User manual
