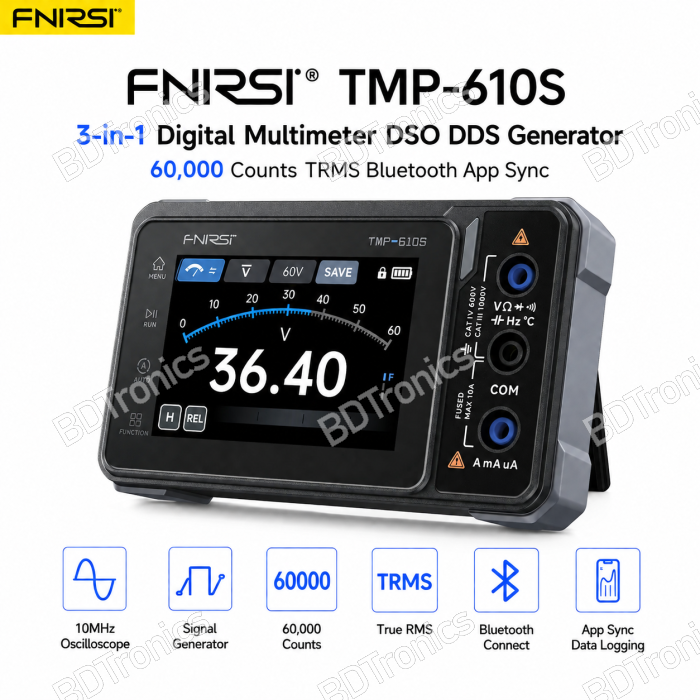

FNIRSI TMP-610S is a professional 3-in-1 handheld test instrument combining a Digital Multimeter, 10MHz Oscilloscope, and Signal Generator in a single portable device by BDTronics. Designed for electronics engineers, technicians, students, field service professionals, and industrial maintenance applications, the TMP-610S provides advanced measurement capabilities with a 60,000-count True RMS multimeter, 48MSa/s oscilloscope, built-in signal generator, Bluetooth app connectivity, rechargeable battery, and portable handheld design.

The FNIRSI TMP-610S eliminates the need for multiple bench instruments by integrating essential diagnostic tools into one compact unit. Available from BDTronics Bangladesh for electronics troubleshooting, circuit analysis, repair work, automotive diagnostics, embedded development, and educational applications.

Features:

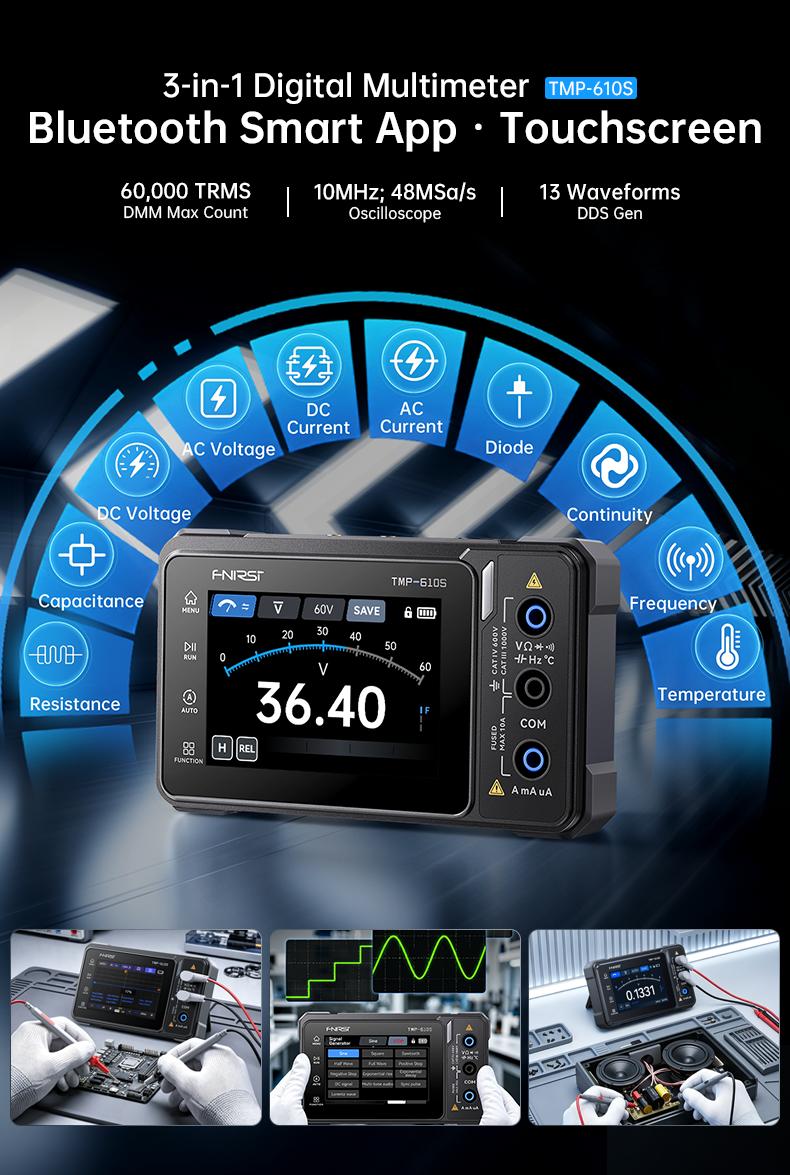

• 3-in-1 design combining Oscilloscope, Digital Multimeter, and Signal Generator

• High-precision 60,000-count digital multimeter

• Built-in 10MHz bandwidth oscilloscope

• Real-time sampling rate up to 48MSa/s

• Integrated signal generator with 13 waveform outputs

• Bluetooth app control and data monitoring

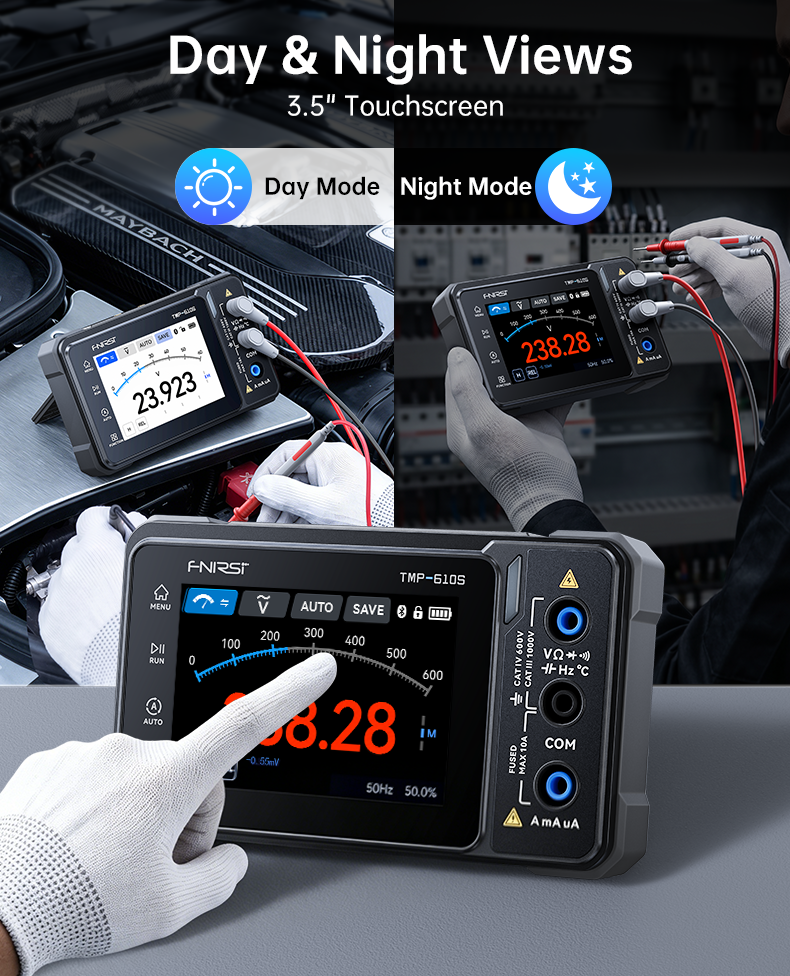

• Large color display for waveform and measurement visualization

• True RMS measurement capability

• Supports voltage, current, resistance, capacitance, frequency, temperature, continuity, and diode testing

• Portable handheld design for field work

• Built-in adjustable desktop stand

• Rechargeable 3000mAh lithium battery

• USB Type-C charging interface

• Auto sleep power-saving function

• Protective silicone cover included

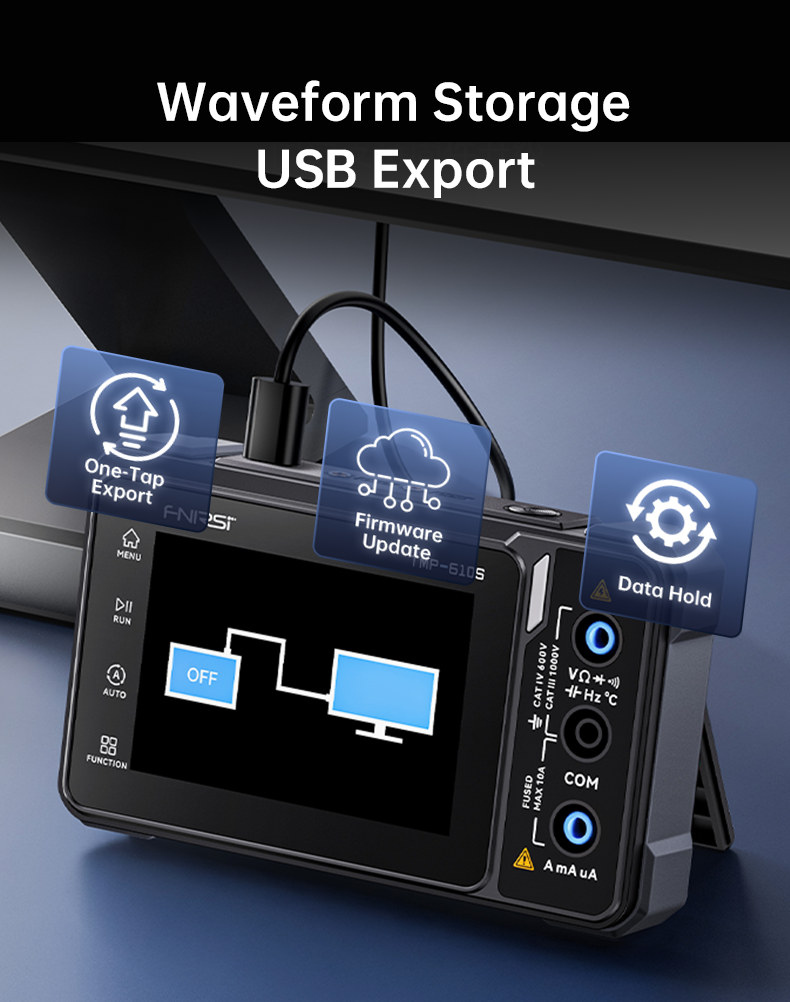

• Waveform screenshot saving function

• Cursor measurement support

• Adjustable trigger settings

• Suitable for electronics repair and development

• Ideal for laboratory, industrial, and educational use

Specifications:

Multimeter Specifications

• Display Count: 60,000 Counts

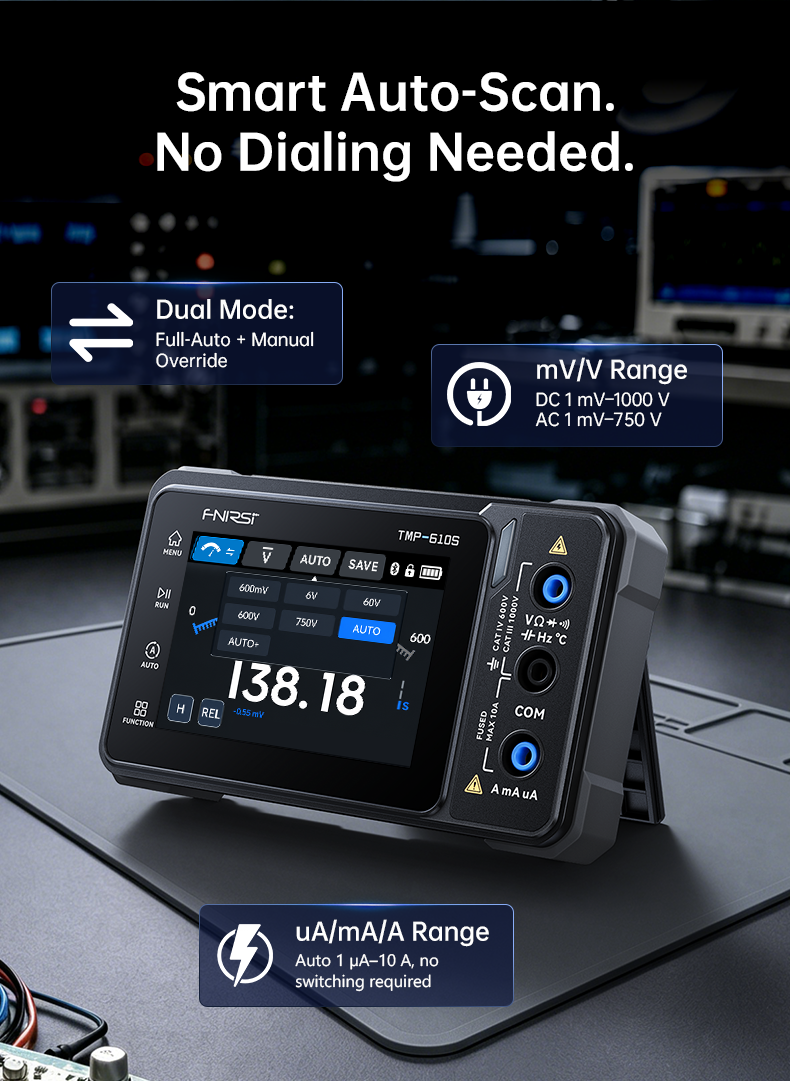

• DC Voltage Range: 600mV / 6V / 60V / 600V / 1000V

• AC Voltage Range: 600mV / 6V / 60V / 600V / 750V

• DC Current Range: 600μA / 6000μA / 60mA / 600mA / 6A / 10A

• AC Current Range: 600μA / 6000μA / 60mA / 600mA / 6A / 10A

• Resistance Range: 600Ω / 6KΩ / 60KΩ / 600KΩ / 6MΩ / 60MΩ

• Capacitance Range: 60nF / 600nF / 6μF / 60μF / 600μF / 6mF / 60mF

• Frequency Measurement: 10Hz – 60MHz

• Temperature Measurement: -40°C to 1000°C

• Temperature Measurement: -40°F to 1832°F

• Continuity Range: 0Ω – 1KΩ

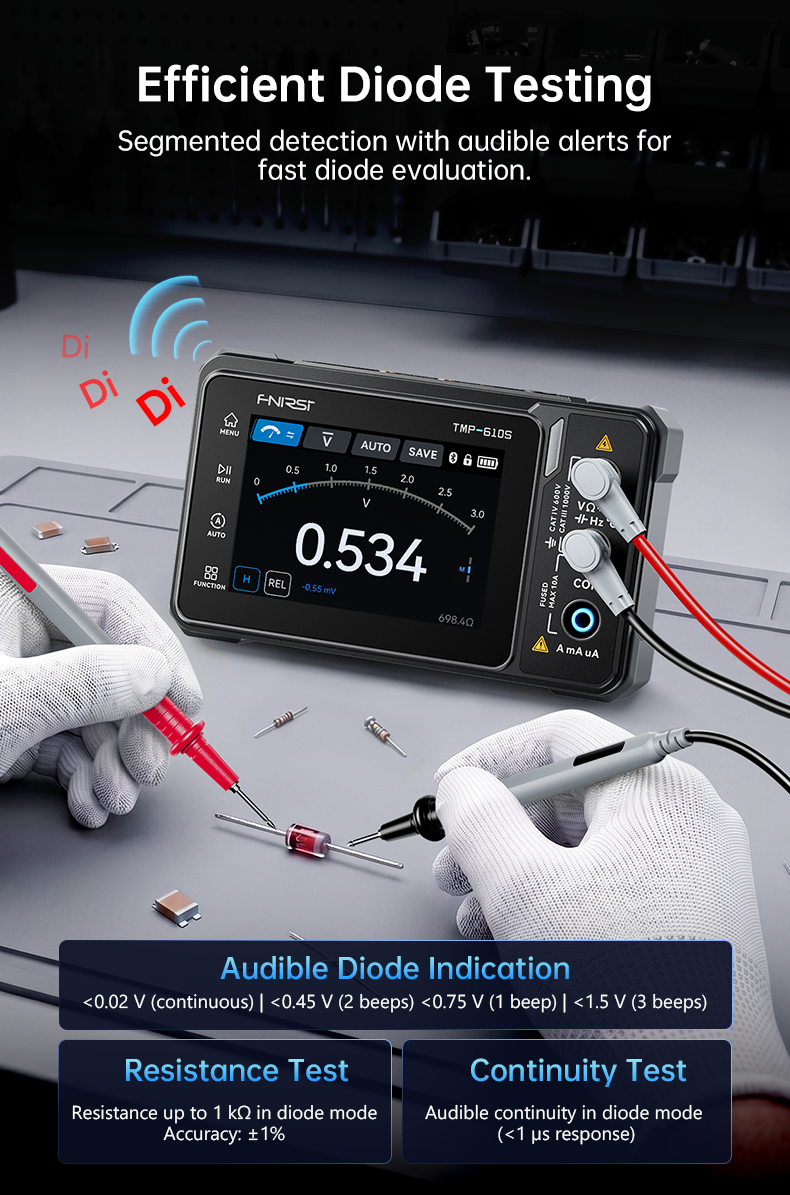

• Diode Test Range: 0V – 3.0V

• AC Frequency Response: 10KHz

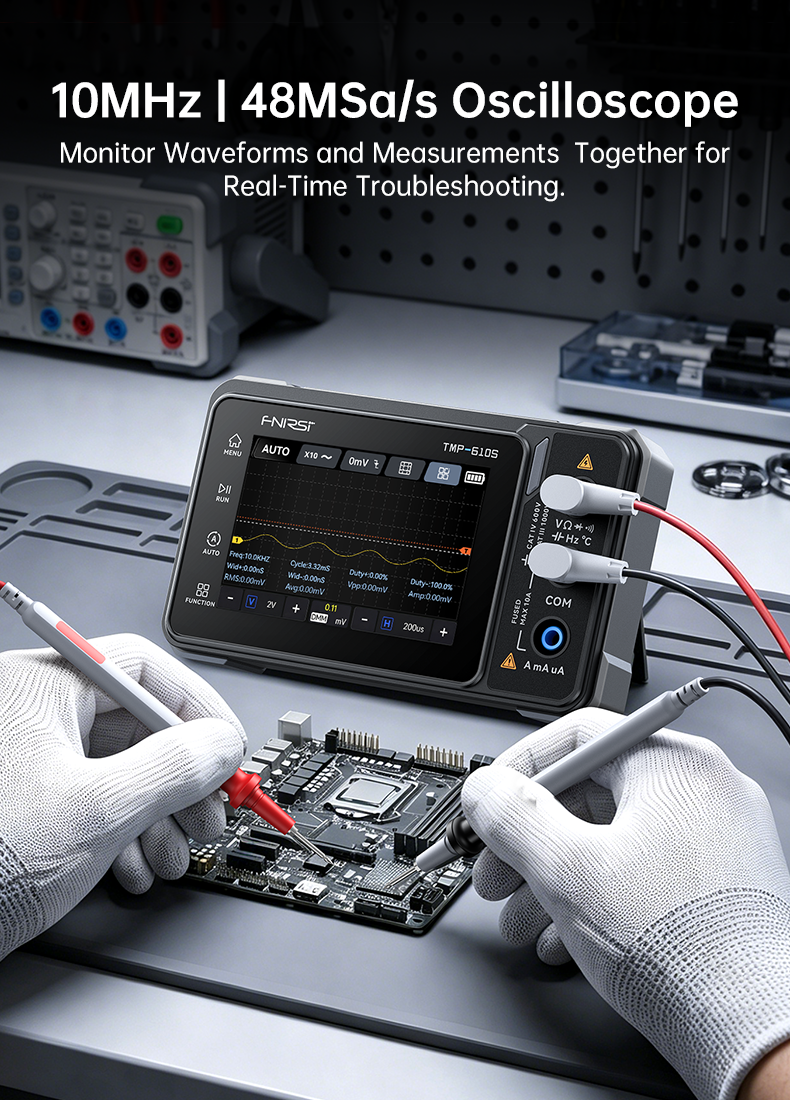

Oscilloscope Specifications

• Analog Bandwidth: 10MHz

• Real-Time Sampling Rate: 48MSa/s

• Input Impedance: 1MΩ

• Coupling Modes: AC / DC

• Voltage Range (1:1 Probe): 80Vpp (±40V)

• Voltage Range (1:10 Probe): 800Vpp (±400V)

• Vertical Sensitivity: 10mV/div to 10V/div

• Vertical Position Adjustment: Supported

• Time Base Range: 50ns to 20s

• Trigger Modes: Auto / Normal / Single

• Trigger Types: Rising Edge / Falling Edge

• Adjustable Trigger Level: Yes

• Persistence Modes: Off / 500ms / 1s / Infinite

• Cursor Measurement: Supported

• Waveform Screenshot Saving: Supported

Oscilloscope Measurement Parameters

• Frequency

• Period

• Positive Duty Cycle

• Negative Duty Cycle

• Positive Pulse Width

• Negative Pulse Width

• Maximum Voltage

• Minimum Voltage

• Peak-to-Peak Voltage

• Amplitude

• RMS Voltage

• Average Voltage

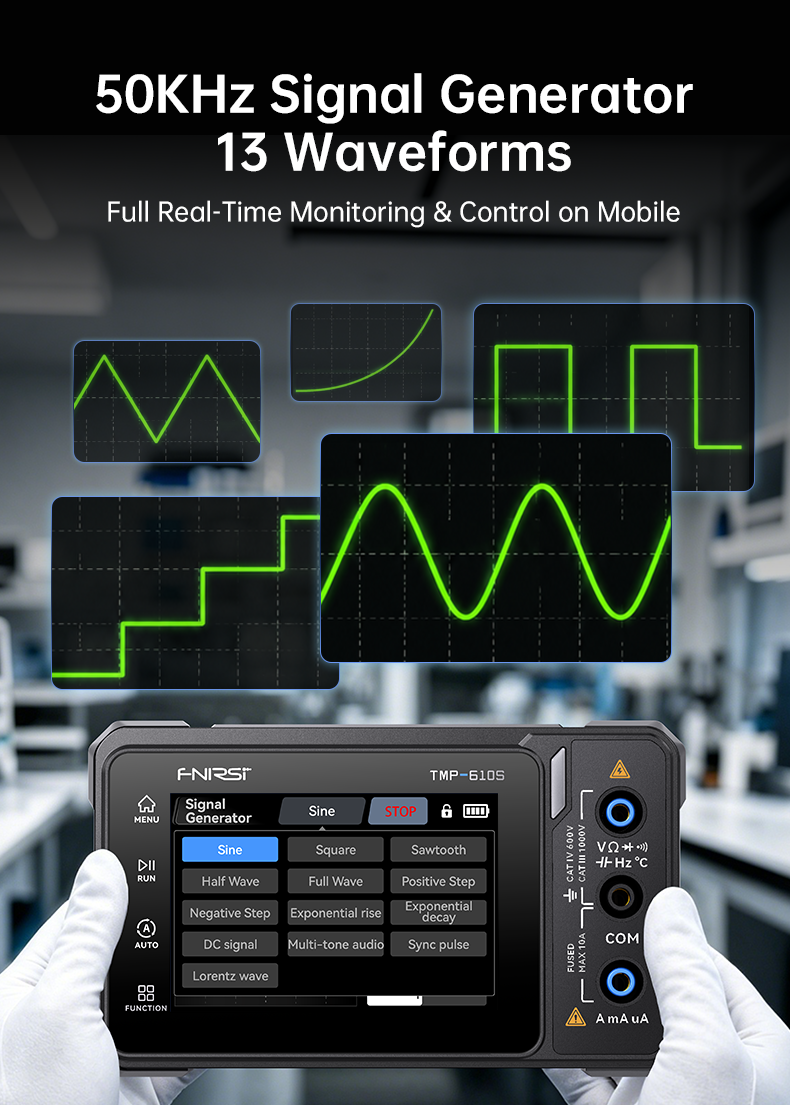

Signal Generator Specifications

• Output Waveforms: 13 Types

• Frequency Range: 0Hz – 50KHz

• Output Amplitude: 0V – 3.0V

• Duty Cycle Range: 0% – 100%

• Adjustable Duty Cycle: Square Wave and Sawtooth Wave

General Specifications

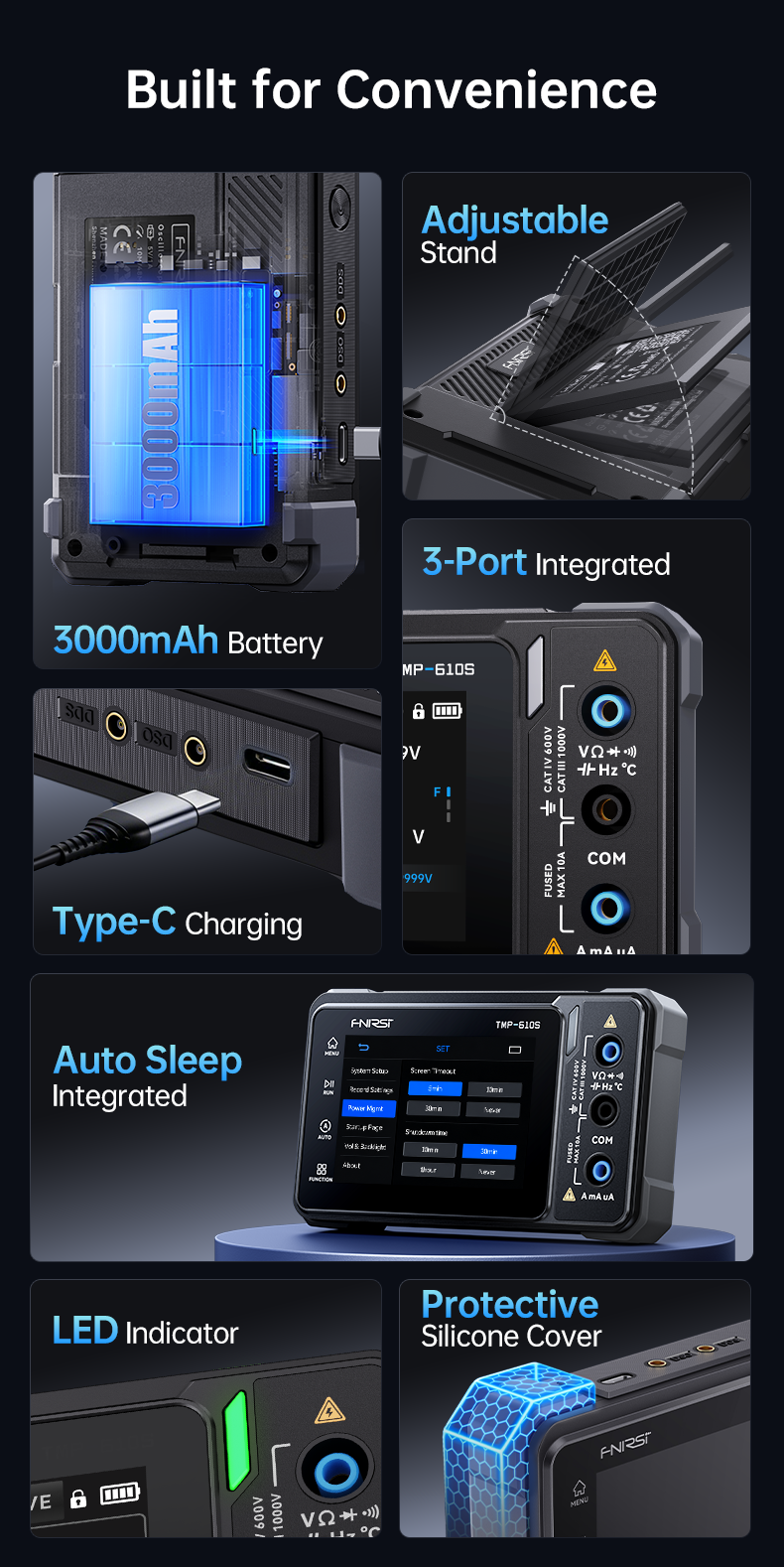

• Battery Capacity: 3000mAh Rechargeable Battery

• Charging Interface: USB Type-C

• Bluetooth Connectivity: Supported

• Auto Sleep Function: Supported

• Adjustable Stand: Built-in

• Protective Silicone Cover: Included

Applications:

• Electronics troubleshooting

• PCB debugging

• Power supply testing

• Signal analysis

• Embedded system development

• Arduino projects

• ESP32 projects

• STM32 development

• Industrial maintenance

• Electrical installation testing

• Automotive electronics diagnostics

• Frequency measurement

• Waveform analysis

• Educational laboratory work

• Communication circuit testing

• Sensor signal analysis

• Audio circuit testing

• DIY electronics projects

Oscilloscope Functions:

• Analyze analog and digital signals

• Observe waveform characteristics

• Measure frequency and period

• Analyze pulse width and duty cycle

• View signal amplitude and RMS values

• Capture and save waveform screenshots

• Adjustable triggering for stable waveform display

• AC and DC signal coupling modes

• Cursor-based waveform measurements

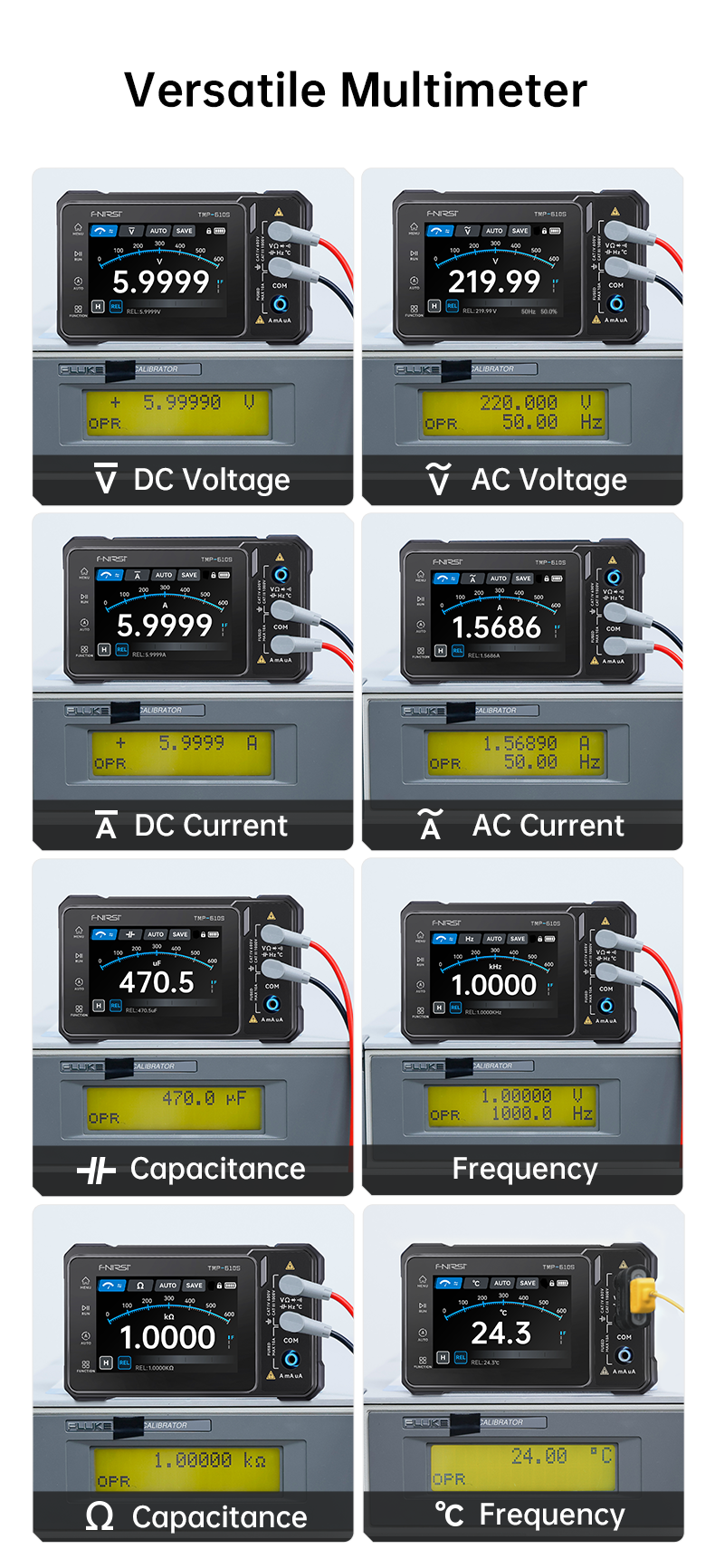

Multimeter Functions:

• DC voltage measurement

• AC voltage measurement

• DC current measurement

• AC current measurement

• Resistance measurement

• Capacitance measurement

• Frequency measurement

• Temperature measurement

• Continuity testing

• Diode testing

• True RMS measurements

Signal Generator Functions:

• Generate 13 waveform types

• Adjustable frequency output

• Adjustable output amplitude

• Variable duty cycle adjustment

• Suitable for circuit testing and debugging

• Useful for amplifier, filter, and signal path testing

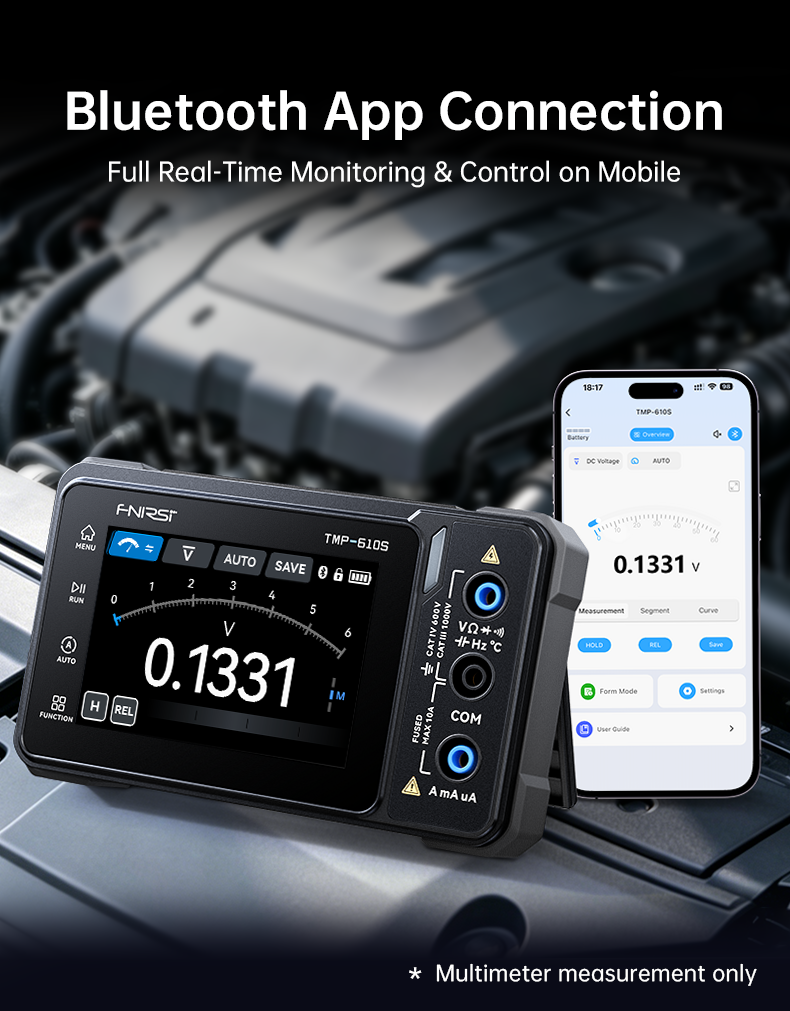

Bluetooth App Connectivity:

• Wireless connection to smartphone

• Real-time monitoring

• Data visualization

• Improved measurement convenience

• Portable remote operation capability

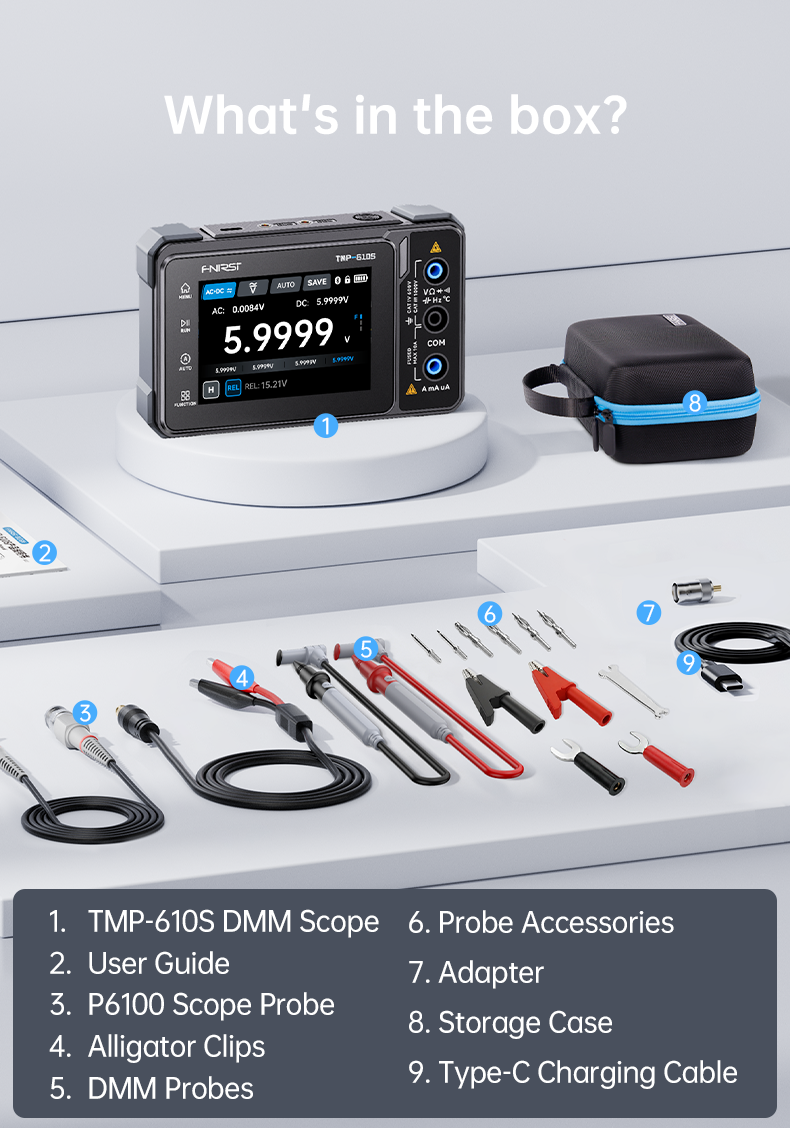

Package Contents:

• 1 × FNIRSI TMP-610S DMM Scope

• 1 × User Guide

• 1 × P6100 Oscilloscope Probe

• 1 × Adapter

• 1 × Alligator Clip Set

• 1 × Pair of Multimeter Test Probes

• 1 × Probe Accessories Kit

• 1 × Storage Carrying Case

• 1 × USB Type-C Charging Cable
