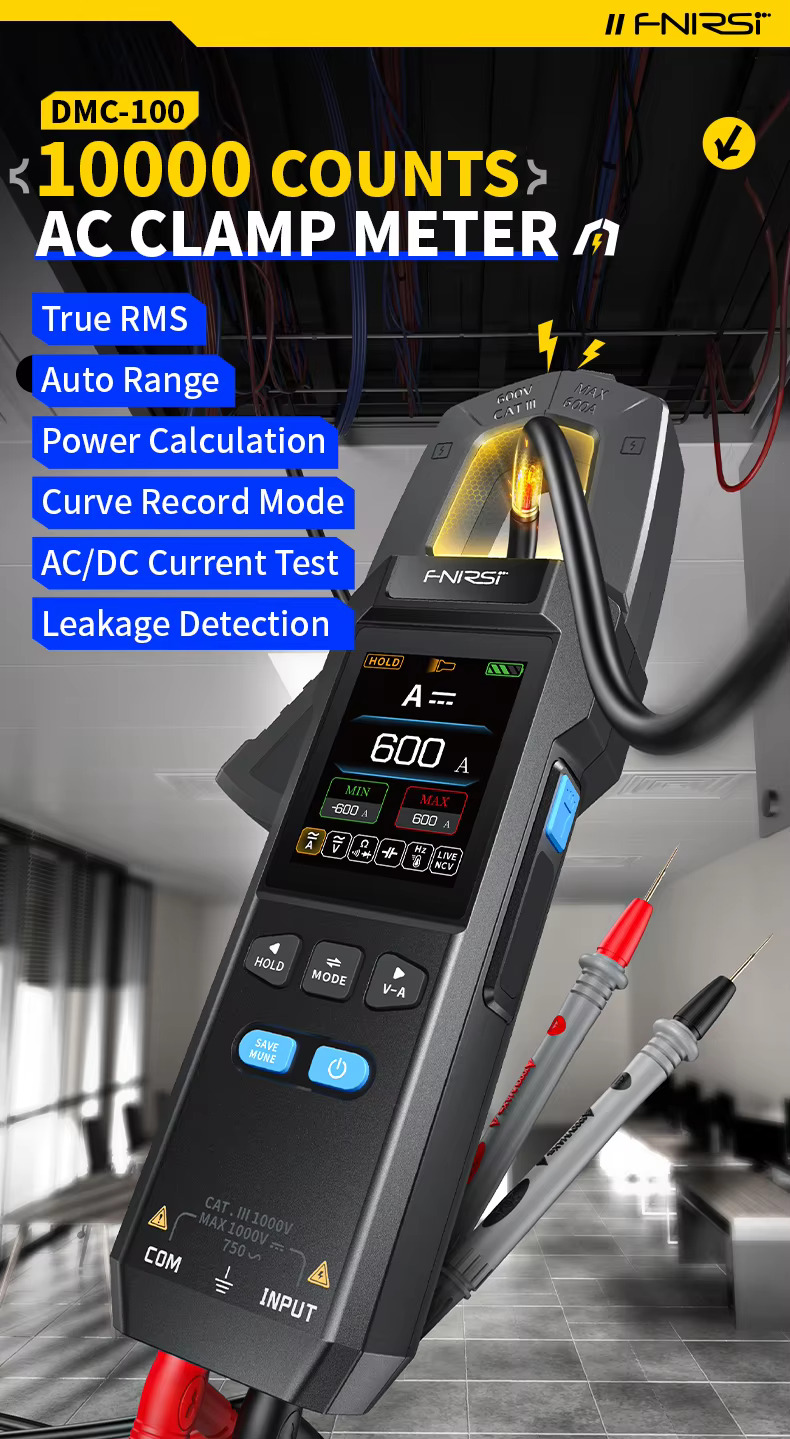

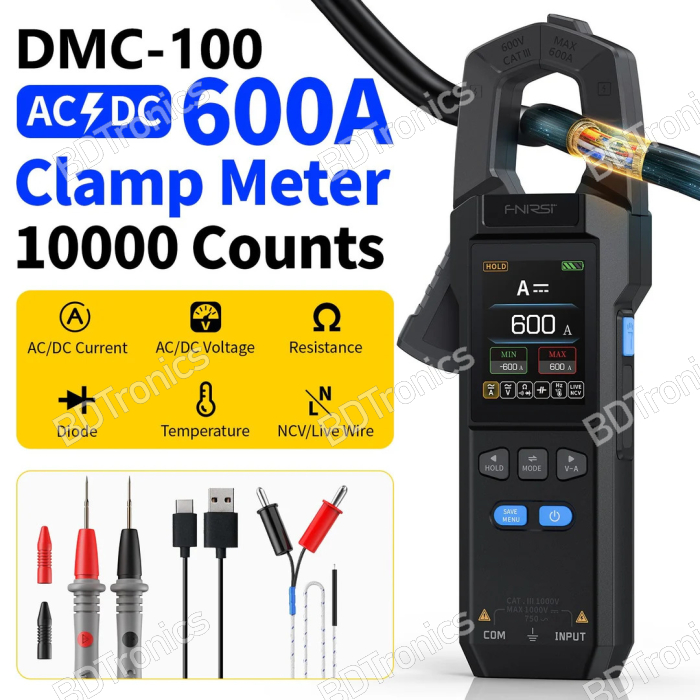

The FNIRSI DMC-100 Digital Clamp Meter is a high-precision 10,000-count True RMS smart clamp meter designed for professional electrical measurement, industrial maintenance, laboratory testing, automotive diagnostics, and home electrical inspection. Available from BDTronics, this advanced clamp meter supports both AC and DC current and voltage measurement with high accuracy and stability.

Equipped with a 2.0-inch full-color TFT display, intelligent UI, waveform visualization, and power measurement mode, the FNIRSI DMC-100 delivers clear data visualization and real-time monitoring. It supports up to 600A current measurement and 750V voltage measurement, making it suitable for a wide range of low- and high-power electrical applications.

With features such as NCV non-contact voltage detection, temperature measurement up to 1300°C, data storage, USB Type-C charging, firmware upgrade support, and a built-in flashlight, this clamp meter is an all-in-one professional diagnostic tool. BDTronics supplies this original FNIRSI clamp meter for engineers, technicians, electricians, students, and advanced DIY users in Bangladesh.

Features:

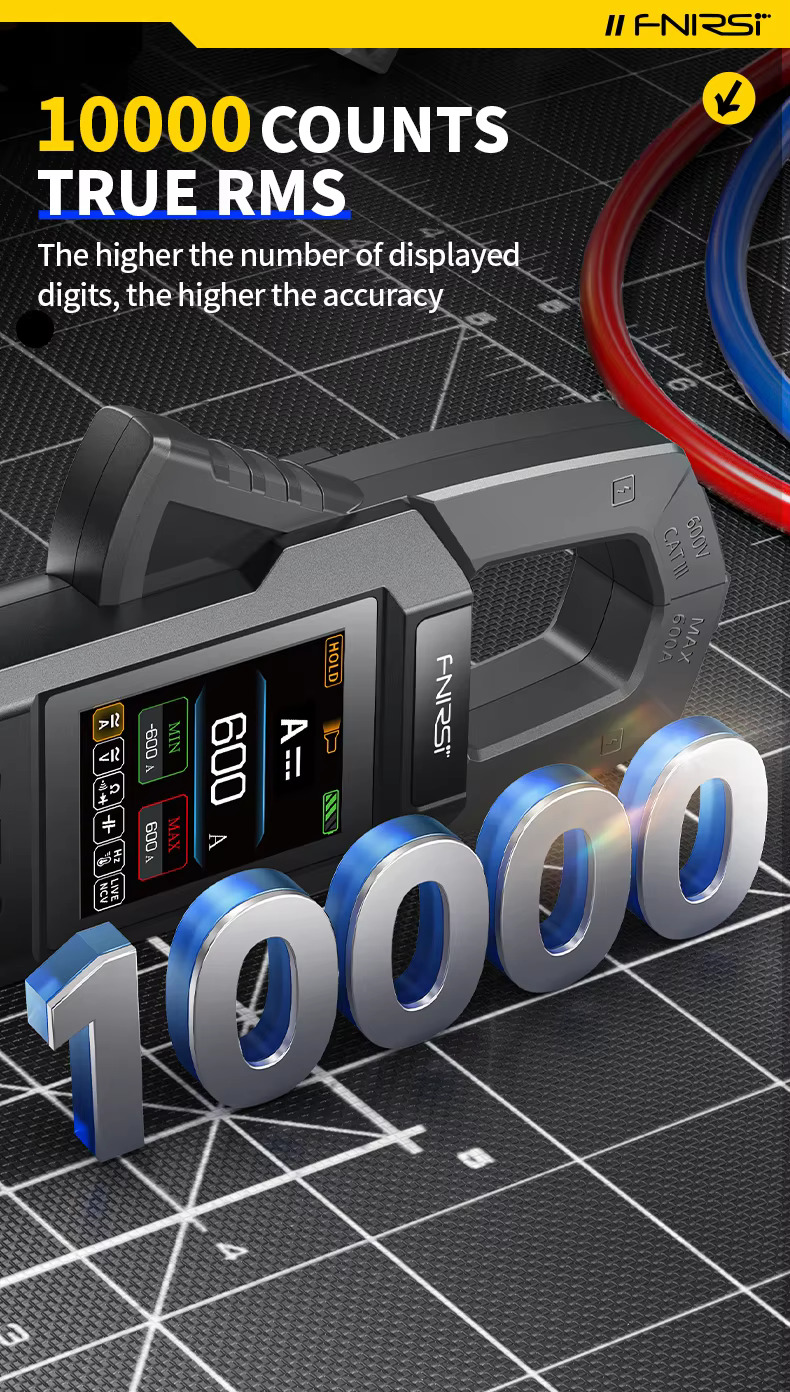

• High-Precision Measurement: 10,000-count True RMS intelligent clamp meter for ultra-accurate readings.
• Wide Measurement Range: Measures up to 750V for voltage and up to 600A for current, making it suitable for a wide range of applications.

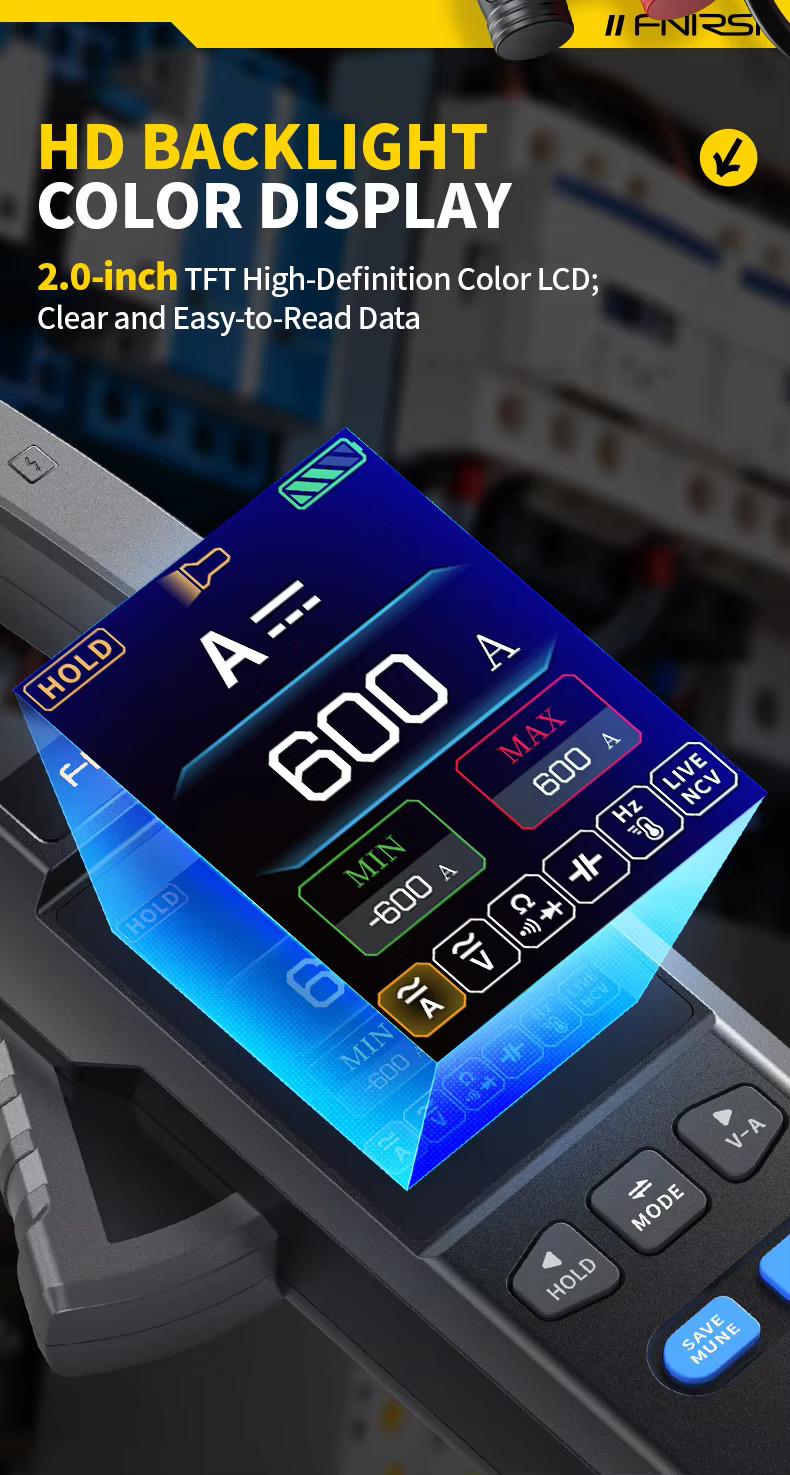

• Clear High-Quality Display: 2.0-inch full-color TFT screen with 240 x 320 resolution provides clear, vibrant visuals for easy data interpretation.
• Intuitive User Interface: New UI design with data curve display for an instant view of measurement trends.

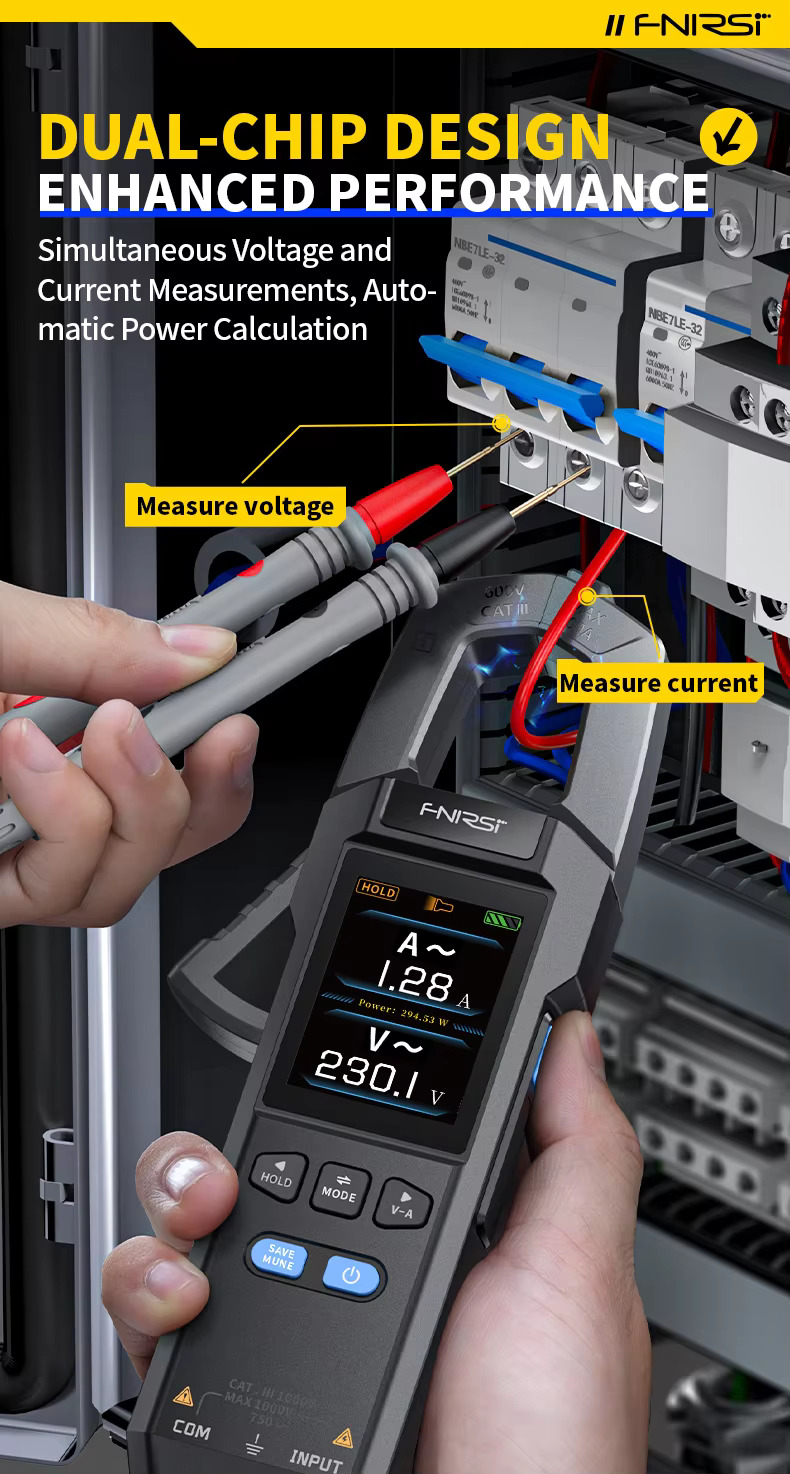

• Three Measurement Modes: Switch freely between general measurement, waveform display, and power measurement modes, offering flexibility for various tasks.

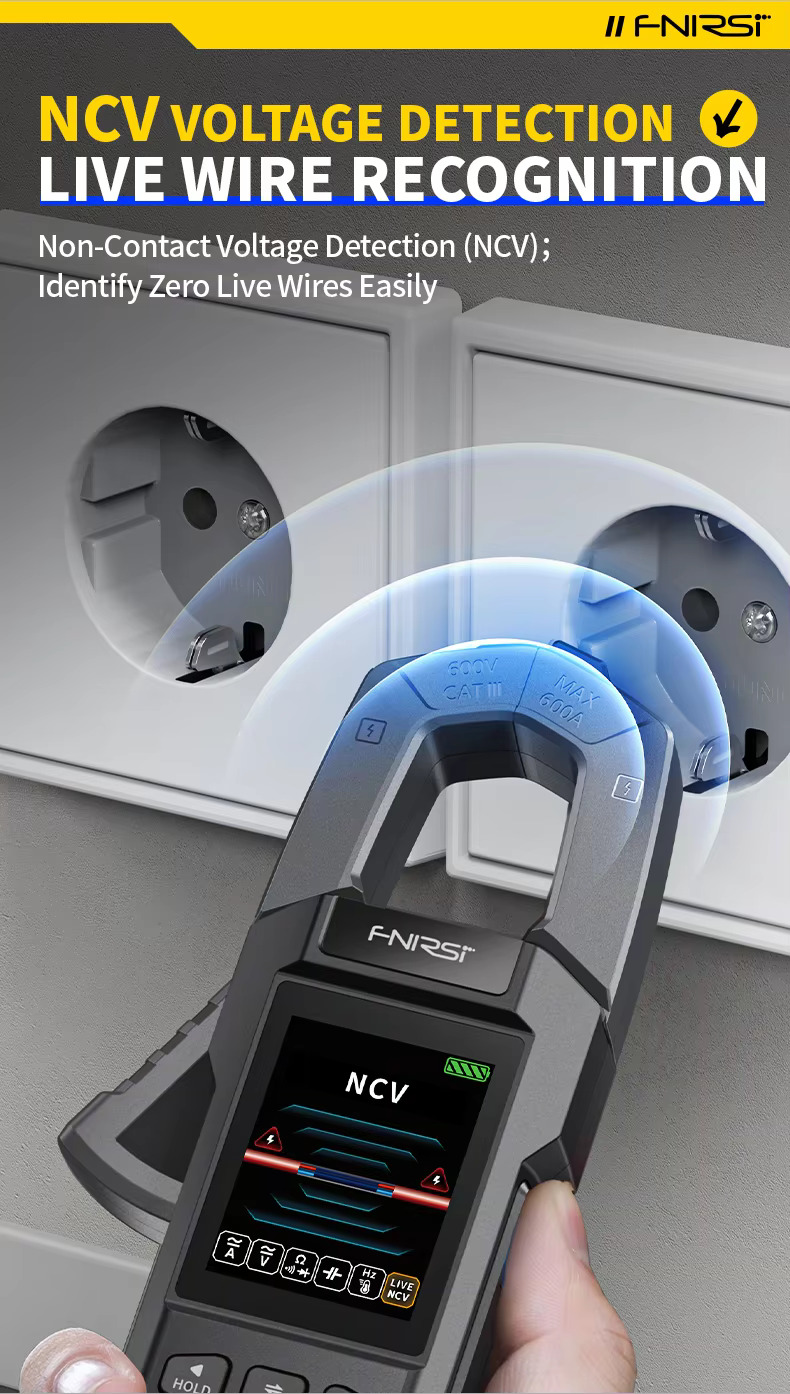

• Non-Contact Voltage (NCV) Function: Safely measure voltage without direct contact, and identify zero/fire lines for added safety.
• Wide Temperature Measurement Range: Capable of measuring temperatures between -55°C to 1300°C (-67℉ to 2372℉).
• Long Battery Life: Powered by a 3.7V 1500mAh lithium battery for extended usage between charges.

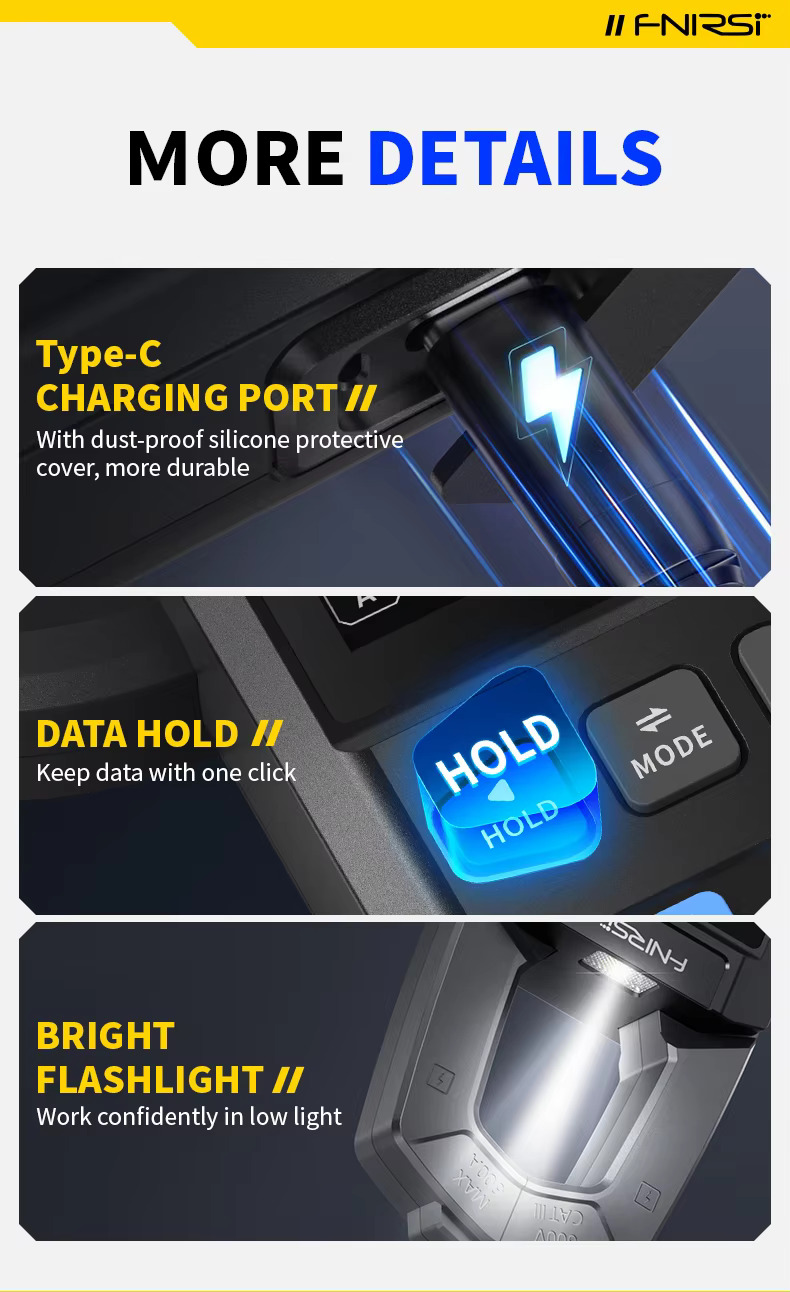

• USB Type-C Charging & Data Transfer: Convenient USB Type-C port for charging and firmware updates (only for firmware transmission).

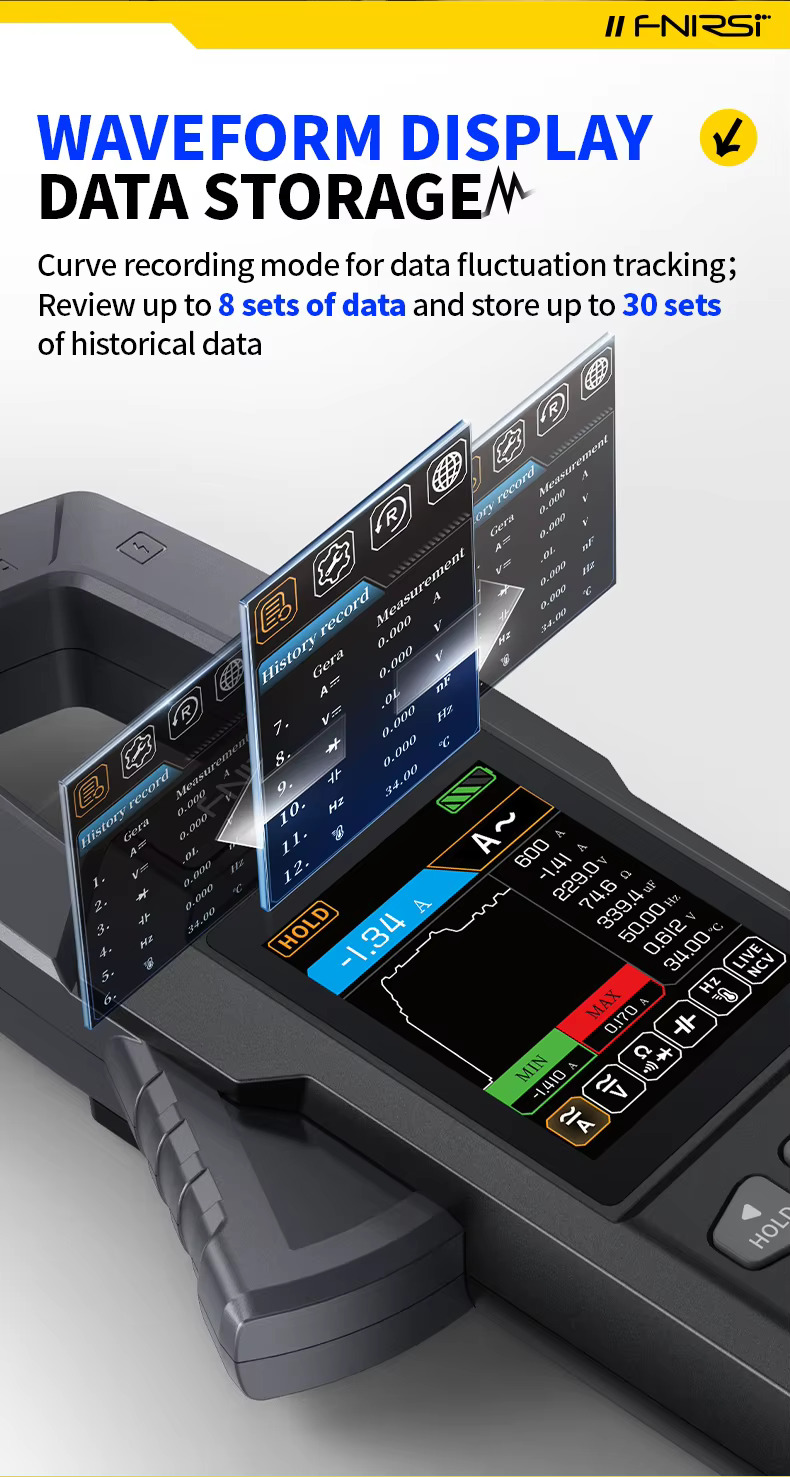

• Additional Features: Includes a built-in flashlight, screen backlight for visibility in low light, and data-saving capabilities to store up to 30 groups of measurement data.
• Auto Power-Off: Automatically shuts off after a set period of inactivity to save battery life.
• Temperature Unit Switching: Easily toggle between Celsius (℃) and Fahrenheit (℉) for temperature readings.
• Adjustable Screen Brightness: 10 levels of brightness adjustment for comfortable viewing in different environments.
• Firmware Upgradeable: Keep your device up to date with the latest features through firmware upgrades.
• Torch Function: Built-in flashlight for better visibility when working in dark or low-light conditions.
• Data Hold and Storage: Capture and hold measurements, and store up to 30 measurement data points for easy reference.

Specifications:

• Brand: FNIRSI
• Model: DMC-100
• Display: 2.0" TFT color screen
• Screen Resolution: 240 x 320 pixels
• Battery: 3.7V, 1500mAh Lithium Battery
• Charging Specification: USB Type-C, 5V/1A

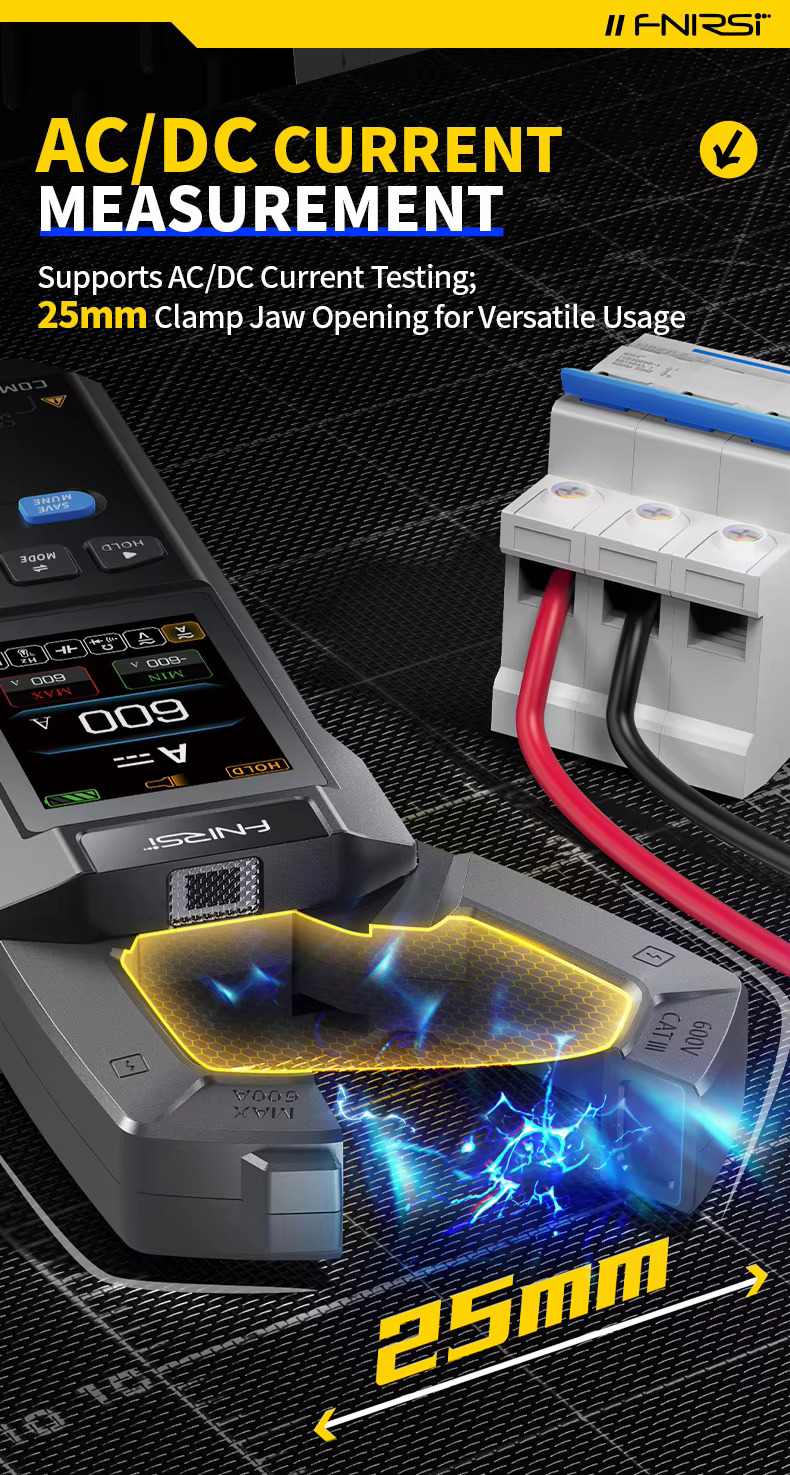

• Maximum Jaws Size: 25mm
• Temperature Unit: Celsius (℃) / Fahrenheit (℉)
• Product Size: 193 x 74 x 32 mm
• Product Weight: 194g

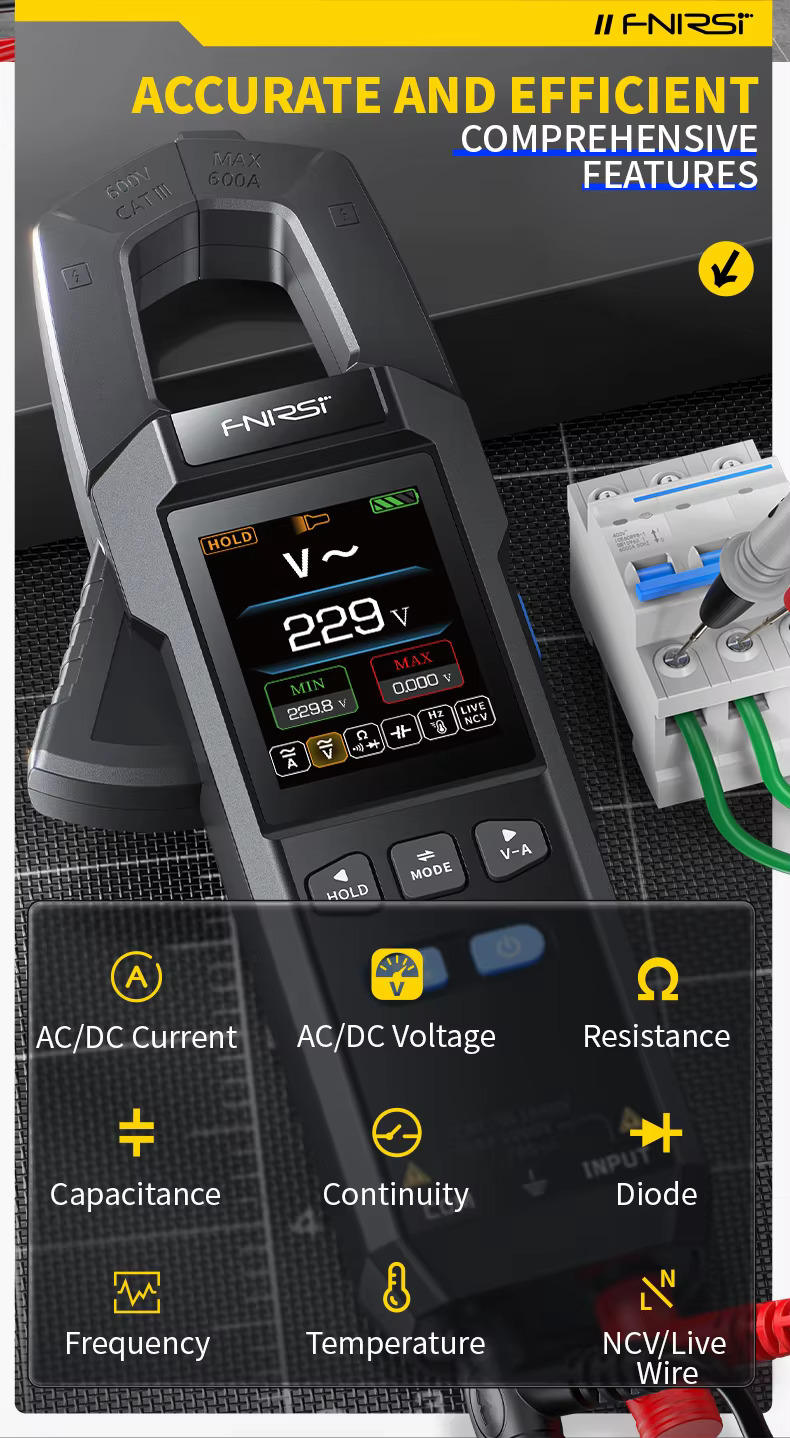

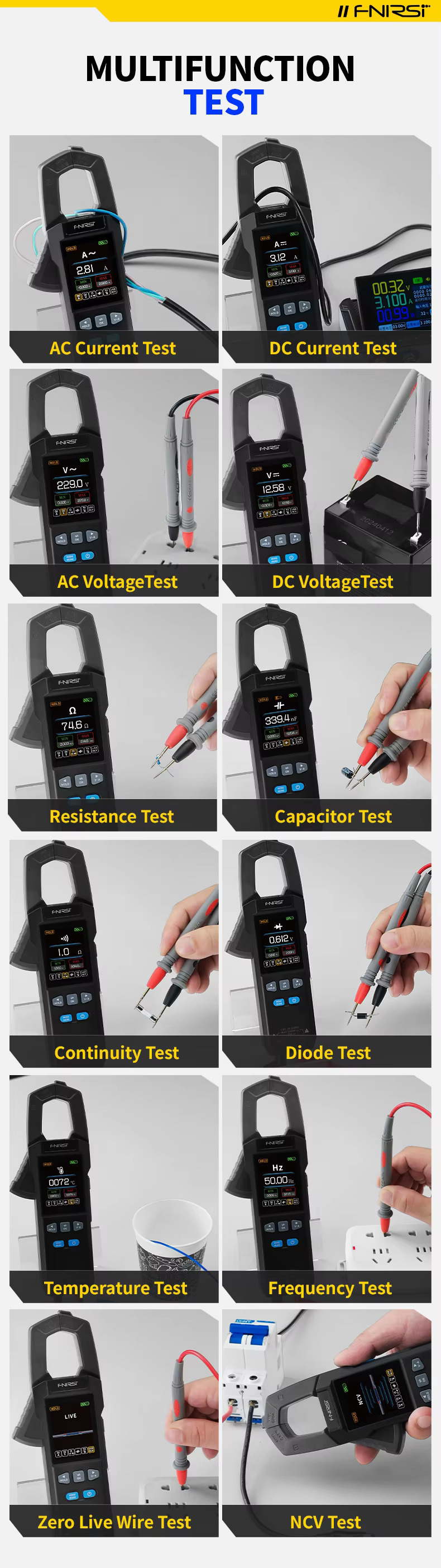

Measurement Ranges:

• DC Voltage: 9.999V / 99.99V / 999.9V
• AC Voltage: 9.999V / 99.99V / 750.0V
• DC & AC Current: 99.99A / 600.0A
• Resistance: 99.99MΩ / 9.999MΩ / 999.9KΩ / 99.99KΩ / 9.999KΩ / 999.9Ω
• Capacitance: 9.999mF / 99.99mF / 999.9μF / 99.99μF / 9.999μF / 999.9nF / 99.99nF / 9.999nF
• Frequency: 9.999MHz / 999.9KHz / 99.99KHz / 9.999KHz / 999.99Hz / 99.99Hz / 9.999Hz
• Temperature: -551300℃ / -672372℉
• Diode Measurement: Yes
• On/Off Test: Yes
• Non-Contact Voltage (NCV): Yes
• Zero Fire Wire Check: Yes

Measurement Modes:

• General Measurement Mode
• Waveform Display Mode
• Power Measurement Mode

Additional Functions:

• Manual Measurement Adjustment
• Maximum/Minimum Value Recording
• Waveform Display
• Power Calculation
• Data Hold Function
• Data Storage: Up to 30 groups of measurement data
• Language Options: Chinese / English
• Brightness Adjustment: 10-speed adjustable
• Auto Power-Off Options: OFF / 5min / 15min / 30min
