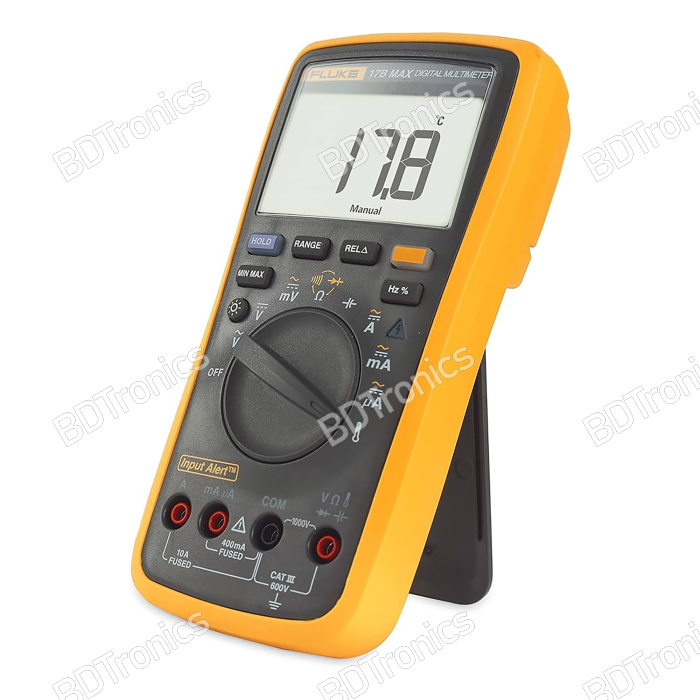

Fluke 17B MAX Digital Multimeter
Order before 12.00PM
The Fluke 17B MAX Digital Multimeter is a rugged, reliable, and versatile measuring instrument designed for electricians, electronics engineers, and R&D professionals. Building on the trusted Fluke 17B+ design, the 17B MAX introduces enhanced features including audible and visual input alert alarms, fine-tip test leads for circuit board testing, and an easy wake-from-sleep interface for efficient use in the field or lab.
BDTronics offers Fluke 17B MAX multimeters in Bangladesh for accurate voltage, current, resistance, capacitance, frequency, and temperature measurements, ensuring professionals can perform precise diagnostics in industrial, electronics, and laboratory environments.
| Specifications | ||||
|---|---|---|---|---|
| Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, relative humidity at 0 % to 75 % Accuracy specifications take the form of: ± ([% of Reading] + [Number of Least Significant Digits]). | ||||
| Function | Range | Resolution | Accuracy | |
| 15B MAX | 17B MAX | |||
| AC Volts (40 Hz to 500 Hz)1 | 6.000 V 60.00 V 600.0 V 1000 V |
0.001 V 0.01 V 0.1 V 1 V |
1.0 % + 3 | 1.0 % + 3 |
| AC Millivolts | 600.0 mV | 0.1 mV | 3.0 % + 3 | 3.0 % + 3 |
| DC Volts | 6.000 V 60.00 V 600.0 V 1000 V |
0.001 V 0.01 V 0.1 V 1 V |
0.5 % + 3 | 0.5 % + 3 |
| DC Millivolts | 600.0 mV | 0.1 mV | 1.0 % + 10 | 1.0 % + 10 |
| AC Current μA (40 Hz to 400 Hz)2 | 400.0 μA 4000 μA |
0.1 μA 1 μA |
1.5 % + 3 | 1.5 % + 3 |
| AC Current mA (40 Hz to 400 Hz)2 | 40.00 mA 400.0 mA |
0.01 mA 0.1 mA |
1.5 % + 3 | 1.5 % + 3 |
| AC Current A (40 Hz to 400 Hz)2 | 4.000 A 10.00 A |
0.001 A 0.01 A |
1.5 % + 3 | 1.5 % + 3 |
| DC Current μA2 | 400.0 μA 4000 μA |
0.1 μA 1 μA |
1.5 % + 3 | 1.5 % + 3 |
| DC Current mA2 | 40.00 mA 400.0 mA |
0.01 mA 0.1 mA |
1.5 % + 3 | 1.5 % + 3 |
| DC Current A2 | 4.000 A 10.00 A |
0.001 A 0.01 A |
1.5 % + 3 | 1.5 % + 3 |
| Diode Test3 | 2.000 V | 0.001 V | 10% | 10% |
| Temperature 4 | 50.0 °C to 400.0 °C 0 °C to 50.0 °C -55.0 °C to 0 °C |
0.1 °C | NA | 2 %+1 °C 2 °C 9 %+2 °C |
| Resistance (Ohms)5 | 400.0 Ω 4.000 kΩ 40.00 kΩ 400.0 kΩ 4.000 MΩ 40.00 MΩ |
0.1 Ω 0.001 kΩ 0.01 kΩ 0.1 kΩ 0.001 MΩ 0.01 MΩ |
0.5 % + 3 0.5 % + 2 0.5 % + 2 0.5 % + 2 0.5 % + 2 1.5 % + 3 |
0.5 % + 3 0.5 % + 2 0.5 % + 2 0.5 % + 2 0.5 % + 2 1.5 % + 3 |
| Capacitance6 | 40.00 nF 400.0 nF 4.000 μF 40.00 μF 400.0 μF 2000 μF |
0.01 nF 0.1 nF 0.001 μF 0.01 μF 0.1 μF 1 μF |
2 % + 5 2 % + 5 5 % + 5 5 % + 5 5 % + 5 5 % + 5 |
2 % + 5 2 % + 5 5 % + 5 5 % + 5 5 % + 5 5 % + 5 |
| Frequency1 (10 Hz to 100 kHz) | 50.00 Hz 500.0 Hz 5.000 kHz 50.00 kHz 100.0 kHz |
0.01 Hz 0.1 Hz 0.001 kHz 0.01 kHz 0.1 kHz |
NA | 0.1 % + 3 |
| Duty Cycle1 | 1% to 99% | 0.10% | NA | 1 % typical7 |
| Continuity Threshold | — | — | 70Ω | 70Ω |
| Backlight | — | — | Yes | Yes |
| 1 All ac, Hz, and duty cycle are specified from 1 % to 100 % of range. Inputs below 1 % of range are not specified. 2 Typical burden voltage: DC/AC Current µA: 100 µV / µA; DC/AC Current mA: 2 mV/mA; DC/AC Current A: 0.03 V/A 3Typically, open circuit test voltage is 2.0 V and short circuit current is <0.6 mA 4Use Type K thermocouple 5 Typical open circuit test voltage is 0.54 V, maximum short circuit current is 1.8 mA 6Specifications do not include errors due to test lead capacitance and capacitance floor (may be up to 1.5 nF in the 40 nF range). 7 Typical means when the frequency is at 50 Hz or 60 Hz and the duty cycle is between 10 % and 90 %. |
||||
| Input Characteristics | ||||
|---|---|---|---|---|
| Function | Overload Protection | Input Impedance (Nominal) | Common Mode Rejection Ratio | Normal Mode Rejection Ratio |
| AC Volts | 1000 V 1 | >10 MΩ, <100 pF | >60 dB at 50 Hz or 60 Hz | — |
| AC Millivolts | 1000 V 1 | >1 MΩ, <100 pF | >80 dB at 50 Hz or 60 Hz | — |
| DC Volts | 1000 V 1 | >10 MΩ, <100 pF | >100 dB at 50 Hz or 60 Hz | >60 dB at 50 Hz or 60 Hz |
| DC Millivolts | 1000 V 1 | >1 MΩ, <100 pF | >80 dB at 50 Hz or 60 Hz | — |
| 1106 V Hz max | ||||
| General Specifications | |
| Maximum voltage between any Terminal and Earth Ground | 600 V |
| Maximum differential voltage between V and COM terminals | 1000V |
| Display (LCD) | 6000 counts, updates 3/sec |
| Battery Type | 2 AA, IEC LR6 |
| Battery life | 500 hours minimum |
| Temperature | Operating 0 °C to 40 °C; Storage -30 °C to 60 °C |
| Relative Humidity | Operating Humidity Non-condensing (<10 °C); ≤90 % RH at 10 °C to 30 °C; ≤75 % RH at 30 °C to 40 °C |
| Operating Humidity, 40 MΩ range | ≤80 % RH at 10 °C to 30 °C; ≤70 % RH at 30 °C to 40 °C |
| Altitude | Operating 2000 m; Storage 12000 m |
| Temperature Coefficient | 0.1 X (specified accuracy) /°C (<18 °C or >28 °C) |
| Fuse protection for current inputs | 440 mA, 1000 V, fast-blow, use only Fluke specified parts. 11 A, 1000 V, fast-blow, use only Fluke specified parts |
| Size (HxWxL) | 183 mm x 91 mm x 49.5 mm |
| Weight | 455 g |
| Ingress Protection | IP40 |
| Safety | IEC 61010-1, IEC61010-2-030: CAT III 600 V, Pollution Degree 2 |
| Electromagnetic Environment | IEC 61326-1: Portable |
| Electromagnetic Compatibility (EMC) | Only applicable in Korea |
Class A Equipment (Industrial Broadcasting & Communication Equipment)1
1Equipment meets requirements for industrial electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes.
Features:
-
Audible and Visual Input Alert for Incorrect Connections
-
6000-Count Voltage Measurement Display
-
Fine-Tip Test Leads for Circuit Board Testing and Electronics Applications
-
Capacitance Measurement up to 2000µF
-
Frequency and Temperature Measurement Capability
-
CAT III 600V Safety Rating for Industrial Use
-
Simple Interface to Wake Meter from Sleep Mode
-
Durable and Rugged Construction for Field and Laboratory Use
-
Compact and Portable Design for Ease of Handling
-
Ideal for Troubleshooting Electrical Systems and Electronic Circuits
-
Enhanced Accuracy for Professional Electronics Work
Applications:
-
Electrical System Testing and Troubleshooting
-
Circuit Board Testing in Electronics R&D
-
Industrial Maintenance and Diagnostics
-
Laboratory Electrical and Electronics Measurements
-
Voltage, Current, and Resistance Verification
-
Capacitor Testing and Frequency Measurements
-
Temperature Monitoring in Electrical Equipment
-
Professional Electronics and Electrical Education
-
Field Service Multimeter for Engineers and Technicians
-
Portable Diagnostics for Industrial Automation Systems
Package Includes:
-
1 × Fluke 17B MAX Digital Multimeter
-
1 × Pair of Fine-Tip Test Leads
-
User Manual and Quick Start Guide
Fluke 17B MAX Bangladesh, Fluke 17B MAX multimeter price Bangladesh, digital multimeter Fluke 17B MAX, CAT III 600V multimeter Bangladesh, professional electronics multimeter, circuit board testing DMM, Fluke 17B MAX with fine-tip probes, voltage, current, resistance meter, capacitance measurement multimeter, temperature and frequency measurement DMM, BDTronics Fluke 17B MAX Bangladesh, BDTronics electronics measurement tools Bangladesh, buy Fluke 17B MAX Bangladesh BDTronics, BDTronics digital multimeter supplier Bangladesh
