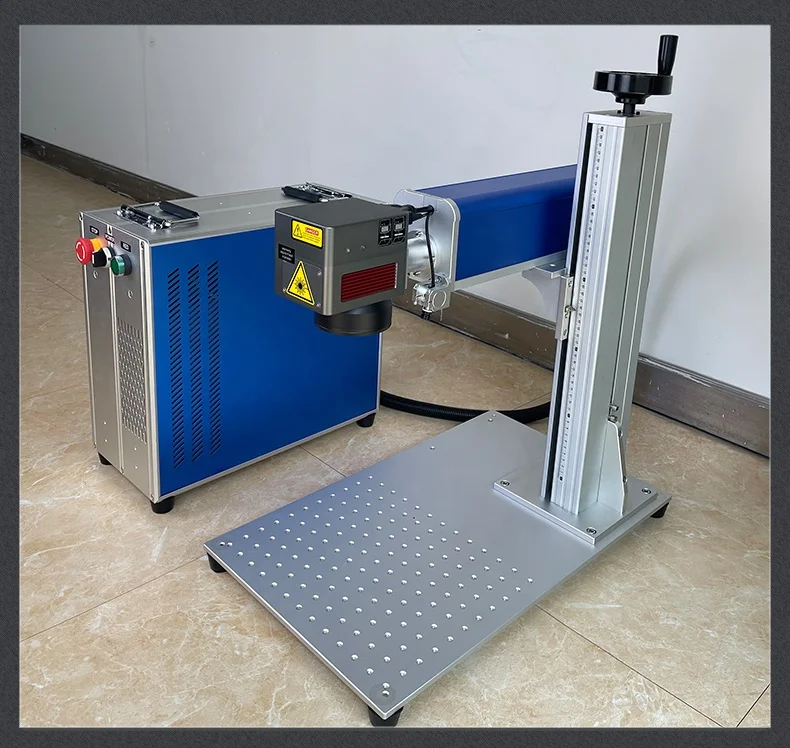

Industrial Fiber Laser Machine with Rotating Axis is a professional-grade laser engraver and marker designed for high-speed, high-precision applications. With a compact working area of 110x110mm, this fiber laser delivers consistent and permanent markings on a wide range of materials, including metals, plastics, ceramics, and more.

Equipped with advanced EZCAD2 and LightBurn software compatibility, it supports multiple file formats for flexible and efficient operation. Ideal for industrial marking, jewelry engraving, barcode engraving, logo design, serial number marking, and custom production, this machine ensures fast performance with exceptional accuracy.

Work Examples

Features:

• High Precision Laser Marking – Minimum line width of 0.01mm and character size of 0.15mm for fine details.

• Fast Marking Speed – Up to 7000mm/s, suitable for mass production and industrial use.

• Deep Marking Capability – Depth up to ≤2mm on metals and selected materials.

• Durable & Reliable – ±0.002mm repeatability accuracy for long-term precision.

• Wide Format Support – Compatible with BMP, JPG, GIF, TGA, AI, DXF, PLT, PNG, TIF, DST, and more.

• Easy to Operate – Supports Microsoft Windows XP/2000/7/8/10 with intuitive EZCAD2/LightBurn software.

• Air Cooling System – Efficient and maintenance-free cooling for stable performance.

• Long Service Life – Backed with a 24-month warranty for reliability and support.

Specifications:

• Laser Power: 20W Fiber Laser

• Working Area: 110 × 110mm

• Cooling Mode: Air Cooling

• Laser Wavelength: 1064nm

• Pulse Frequency: 20 – 100 KHz

• Marking Depth: ≤ 2mm

• Marking Speed: ≤ 7000mm/s

• Marking Lines: 1 – 10 lines

• Minimum Line Width: 0.01mm

• Minimum Character Size: 0.15mm

• Repeatability Accuracy: ±0.002mm

• Resolution Ratio: 0.1mm

• Marking Content: Text, logos, barcodes, serial numbers, QR codes, patterns, and dates

• Software Compatibility: EZCAD2, LightBurn

• Supported Formats: BMP, JPG, GIF, TGA, AI, DXF, PLT, PNG, TIF, DST, etc.

• Unit Power Consumption: 500W

• Operating Temperature: 5°C – 40°C

• Relative Humidity: ≤ 90% (non-condensing)

• Dimensions (L × W × H): 45 × 57 × 76 cm

• Power Supply: AC 220V / 110V

• Weight: 47-67KG (based on option)

• Warranty: 24 Months

Applications:

• Metal engraving (stainless steel, aluminum, brass, copper, titanium, gold, silver)

• Non-metal marking (plastics, ceramics, leather, etc.)

• Industrial product labeling

• Barcode, QR code, and serial number engraving

• Jewelry customization and logo engraving
