FG-100 DDS Function Signal Generator 1HZ-500KHz Sine Square Triangle Sawtooth Wave
This product is out of stock. Are you interested about this product?
Order before 12.00PM

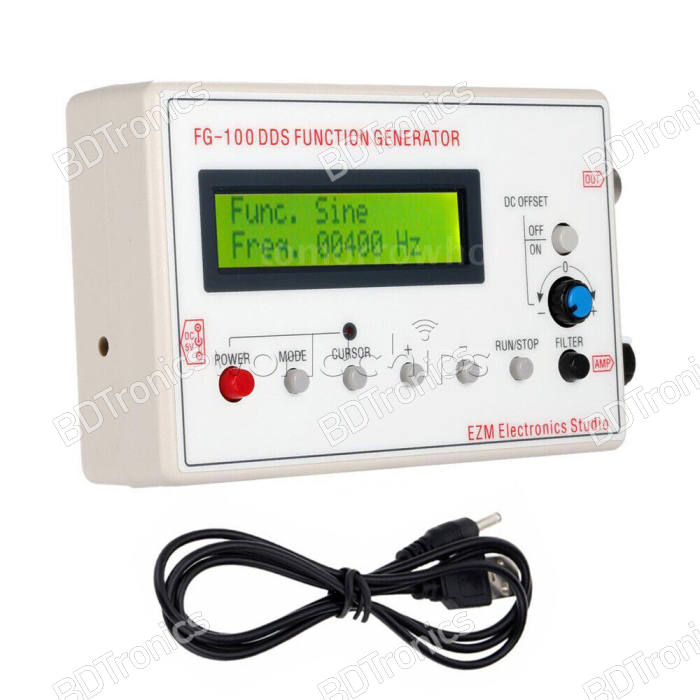

The FG-100 DDS Function Signal Generator is a compact and reliable tool designed for engineers, technicians, and electronics hobbyists. Featuring support for multiple waveform types and fine frequency control, this versatile signal generator is ideal for circuit testing, debugging, and educational applications. Powered by the ATMega48 microcontroller, the FG-100 delivers consistent performance in both lab and field environments.
Features:
-
Multi-Waveform Output
Supports sine, rectangle, triangle, positive sawtooth, and negative sawtooth waveforms to accommodate a wide range of testing requirements. -
Wide Frequency Range
-
Sine wave: 1 Hz to 500 kHz
-
Rectangle, triangle, sawtooth waves: 1 Hz to 20 kHz
-
-
High-Precision Frequency Control
Offers 1 Hz frequency resolution for accurate and repeatable signal generation. -
Adjustable Output and Offset
-
Output Voltage: 0 V to ±10 V peak-to-peak
-
Impedance: 50 Ω
-
DC Offset: ±10 V max
-
-
Low Signal Distortion
Sine wave distortion is kept below 1% at 1 kHz, ensuring clean and stable signal output. -
User-Friendly Interface
Equipped with an LCD1602 display (16x2 characters) for clear readouts of frequency and mode settings. -
Compact and Durable Design
Measuring only 140 mm x 80 mm x 35 mm and weighing 184 g, the FG-100 is ideal for benchtop or portable use.
Specifications:
| Category | Details |
|---|---|
| Waveforms | Sine, Rectangle, Triangle, Positive Sawtooth, Negative Sawtooth |
| Sine Frequency Range | 1 Hz – 500 kHz |
| Other Wave Frequency | 1 Hz – 20 kHz (Rectangle, Triangle, Sawtooth) |
| Output Voltage | 0 V to ±10 V (peak-to-peak) |
| Output Impedance | 50 Ω |
| DC Offset | ±10 V max |
| Distortion | < 1% @ 1 kHz (sine wave) |
| Microcontroller | ATMega48 (8-bit) |
| Display | LCD1602 (16x2 characters, 58 mm x 9.4 mm) |
| Frequency Resolution | 1 Hz |
| Power Supply | 3.5 Vdc – 10 Vdc |
| Supply Current | 300 mA typical |
| Dimensions | 140 mm x 80 mm x 35 mm |
| Weight | 184 g |
Applications:
-
Circuit testing and signal tracing
-
Frequency response analysis
-
Educational and training environments
-
Electronics design and debugging
-
Signal injection and verification
