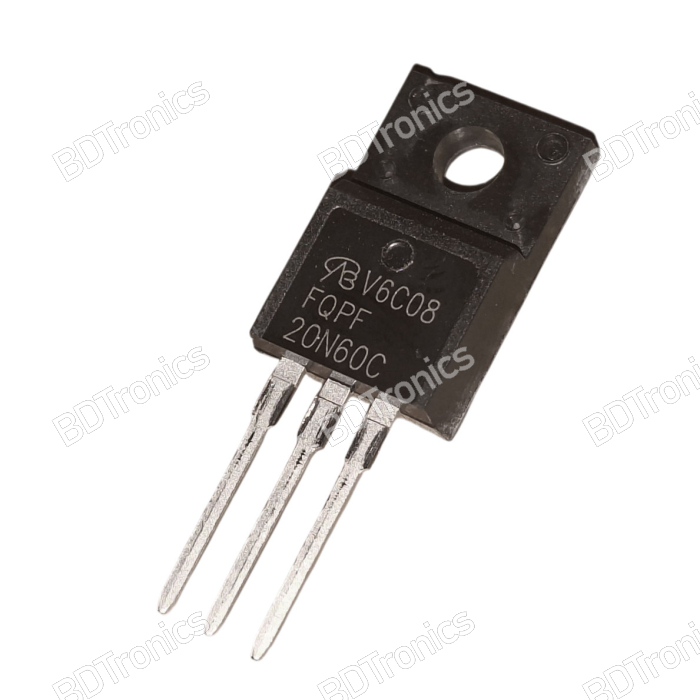

FQPF20N60C is a high-performance N-Channel Super Junction MOSFET designed for high voltage and high efficiency switching applications. With a 650V Drain-Source voltage rating and 20A continuous drain current capability, this MOSFET is suitable for SMPS, solar inverters, battery chargers, welding machines, telecom power supplies, and industrial power electronics. Available in Bangladesh from BDTronics, the FQPF20N60C offers fast switching performance, low conduction loss, and reliable operation in demanding applications.

This MOSFET is widely used in high frequency power conversion circuits including push-pull converters, half bridge, full bridge, flyback, and boost converter designs. BDTronics supplies FQPF20N60C MOSFET for engineers, technicians, and electronics developers in Bangladesh.

Features:

• High voltage 650V N-Channel Super Junction MOSFET

• Continuous drain current up to 20A

• Fast switching performance for high frequency operation

• Low conduction losses for improved efficiency

• High avalanche energy capability

• Suitable for SMPS and inverter circuits

• High power dissipation capability

• Rugged TO-220F insulated package design

• Optimized for switching applications

• Reliable operation under high load conditions

• Suitable for industrial and renewable energy systems

• Excellent performance in power supply applications

• Available from BDTronics Bangladesh

Specifications:

• MOSFET type: N-Channel Super Junction MOSFET

• Model: FQPF20N60C

• Drain-Source Voltage (VDS): 650V

• Gate-Source Voltage (VGS): ±30V

• Continuous Drain Current (ID) at 25°C: 20A

• Continuous Drain Current (ID) at 100°C: 13A

• Pulsed Drain Current (IDM): 53A

• Maximum Power Dissipation (PD): 208W

• Single Pulse Avalanche Energy (EAS): 367mJ

• Operating Junction Temperature: -55°C to +150°C

• Storage Temperature: -55°C to +150°C

• Drain-Source Voltage Slope (dV/dt): 37V/ns

• Reverse Diode dV/dt: 31V/ns

• Soldering Peak Temperature: 300°C for 10 seconds

• Package type: TO-220F insulated package

Applications:

• Switch Mode Power Supply (SMPS)

• Solar PV inverter systems

• High frequency DC-DC converters

• Battery charger circuits

• Welding machine power stages

• ATX computer power supplies

• Industrial power control systems

• Telecom and server power supplies

• Fluorescent ballast lighting

• HID lighting systems

• Renewable energy power conversion

• High voltage switching applications

How to Use:

• Use proper gate driver circuit for fast switching performance

• Apply suitable heatsink for high current operation

• Ensure gate voltage remains within ±30V limit

• Use snubber or TVS protection for inductive loads

• Keep PCB tracks short for reduced switching noise

• Suitable for PWM switching applications

• Verify thermal dissipation in high power circuits

• Use proper isolation and safety spacing for high voltage designs
