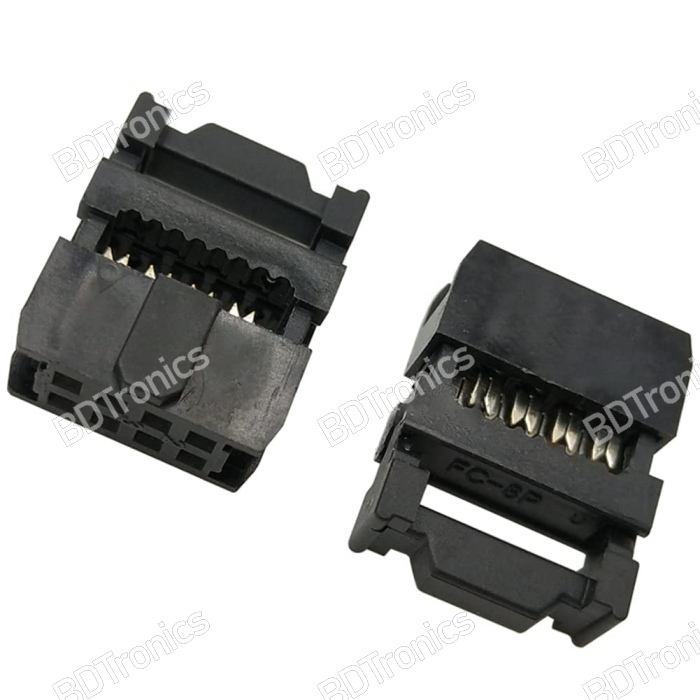

The IDC 10 Pin FC-10P Female 2.54mm Pitch Socket ISP JTAG Header Connector is a reliable and widely used connector solution for embedded system development, microcontroller programming, and debugging applications. Designed for stable signal transmission, this female IDC header connector supports JTAG and ISP interfaces commonly found in development boards, microcontroller programmers, and debugging cables. The 2.54mm pitch ensures full compatibility with standard ribbon cables and pin headers used in electronics projects, industrial control systems, and PCB assemblies in Bangladesh.

This FC-10P female IDC connector is manufactured using high-quality plastic and metal materials to ensure durability, electrical stability, and long-term performance. The double-row 10-pin configuration provides secure and accurate alignment for debugging, flashing, and in-system programming tasks. With strong insulation resistance, low contact resistance, and wide operating temperature range, this connector is suitable for both hobbyist electronics and professional industrial environments.

Features:

• Female IDC 10 pin FC-10P connector suitable for JTAG and ISP debugging

• Standard 2.54mm pitch compatible with common ribbon cables and pin headers

• Double-row configuration ensures stable and secure electrical connections

• Supports high current rating up to 3A for reliable signal transmission

• Durable plastic and metal construction for long service life

• Low contact resistance for improved signal integrity

• High insulation resistance for enhanced electrical safety

• Withstand voltage up to AC 1000V for stable operation

• Suitable for microcontroller programming, PCB debugging, and embedded systems

• Compact size ideal for space-constrained PCB designs

How to Use:

• Align the IDC 10 pin female connector with the corresponding male pin header on the PCB

• Ensure correct pin orientation to match JTAG or ISP pin configuration

• Press the connector firmly onto the header to achieve a secure connection

• Connect the ribbon cable to a programmer or debugger device

• Use with compatible JTAG or ISP tools for firmware flashing, testing, or debugging

• Disconnect carefully after use to avoid damage to pins or connector housing

Applications:

• JTAG debugging interfaces for microcontrollers and development boards

• ISP programming for AVR, ARM, and other embedded controllers

• PCB testing and diagnostics

• Electronics prototyping and DIY projects

• Industrial automation and control systems

• Robotics and IoT development boards

Specifications:

• Type: FC-10P

• Pin/Position Number: 10

• Pitch: 2.54mm / 0.1 inch

• Pin Header Size: 17 x 6 x 9mm (L x W x H)

• Gender: Female

• Connector Type: IDC

• Type of Row: Double-Row

• Color: Black

• Material: Plastic, Metal

• Current Rating: 3A

• Operating Temperature: -40°C to +105°C

• Contact Resistance: 20mΩ max at DC 100mA

• Insulation Resistance: 1000MΩ min at 500V DC

• Withstand Voltage: AC 1000V

• Insulator Material: Polyester (UL94V-0)

• Standard: PBT

• Contact Material: Brass
